Specifications

Specifications

Environment

HDMI, VGA and USB connectivity.

Devices

Blu-Ray, projectors, monitors, TV, PC, laptops, servers, and Smart White Boards.

Bandwidth

300MHz

Signals

HDMI 2.0b (4K/30 4:4:4 & 4K/60 4:2:0), VGA (1920x1200), USB 2.0 and HDCP 2.2.

Connectors

Note: Cables not included.

One (1) HDMI receptacle.

One (1) Female DB15 connector for VGA.

One (1) USB Type B connector.

One (1) RJ45S for Ethernet connectivity.

One (1) 3.5mm jack for Audio-In.

One (1) 2.1mm jack for power.

Maximum Distance

Based on a maximum

length of 6.6ft (2m) of

HDMI cable per end.

Cat5e/6: 330ft (100m)

Note: When installed in an electrically noisy environment, an STP cable must be used. Also,

cross-connection reduces the effective distance depending on the grade of twisted cable used.

Latency

Typical one (1) frame (16ms)

Compression

JPG2000

Bandwidth

Up to 500Mbps

Network Requirement

1 Gig Ethernet with IGMP, Jumbo Frames and PoE

RJ45 Pin Configuration

Reverse Polarity Sensitive.

Use EIA/TIA 568A or 586B

straight-through wiring.

RJ45 Link

Pin 1 (R) Pin 2 (T)

Pin 3 (R) Pin 6 (T)

Pin 4 (R) Pin 5 (T)

Pin 7 (R) Pin 8 (T)

Power Source

This device supports PoE (PD), an external power supply is not included. It is intended to be

powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may

be purchased separately.

PoE

IEEE 802.3af

Power Consumption

3W

Temperature

Operating: 0° to 40°C Storage: -20° to 85°C

Humidity: Up to 95% non-condensing

Dimensions

4.53” x 4.53” x 2.05” (115mm x 115mm x 52mm)

Weight

1.35lb (0.61kg)

Compliance

Regulatory: FCC, CE, RoHS Flammability: 94V0

Warranty

3 years

Order Information

500777-TX-DECOHDMI/VGA/USB over IP PoE Wall Plate Transmitter, 4K/30, DECO

Compatible Receivers

500759-RX, 500770-RX, 500771-RX, and 500777-RX

Accessories

(This item is sold

separately)

500993 Universal Locking Power Supply 5VDC/2.6A US/UK/EU Blade

HDMI/VGA/USB over IP PoE Wall Plate Transmitter, 4K/30, DECO

500777-TX-DECO

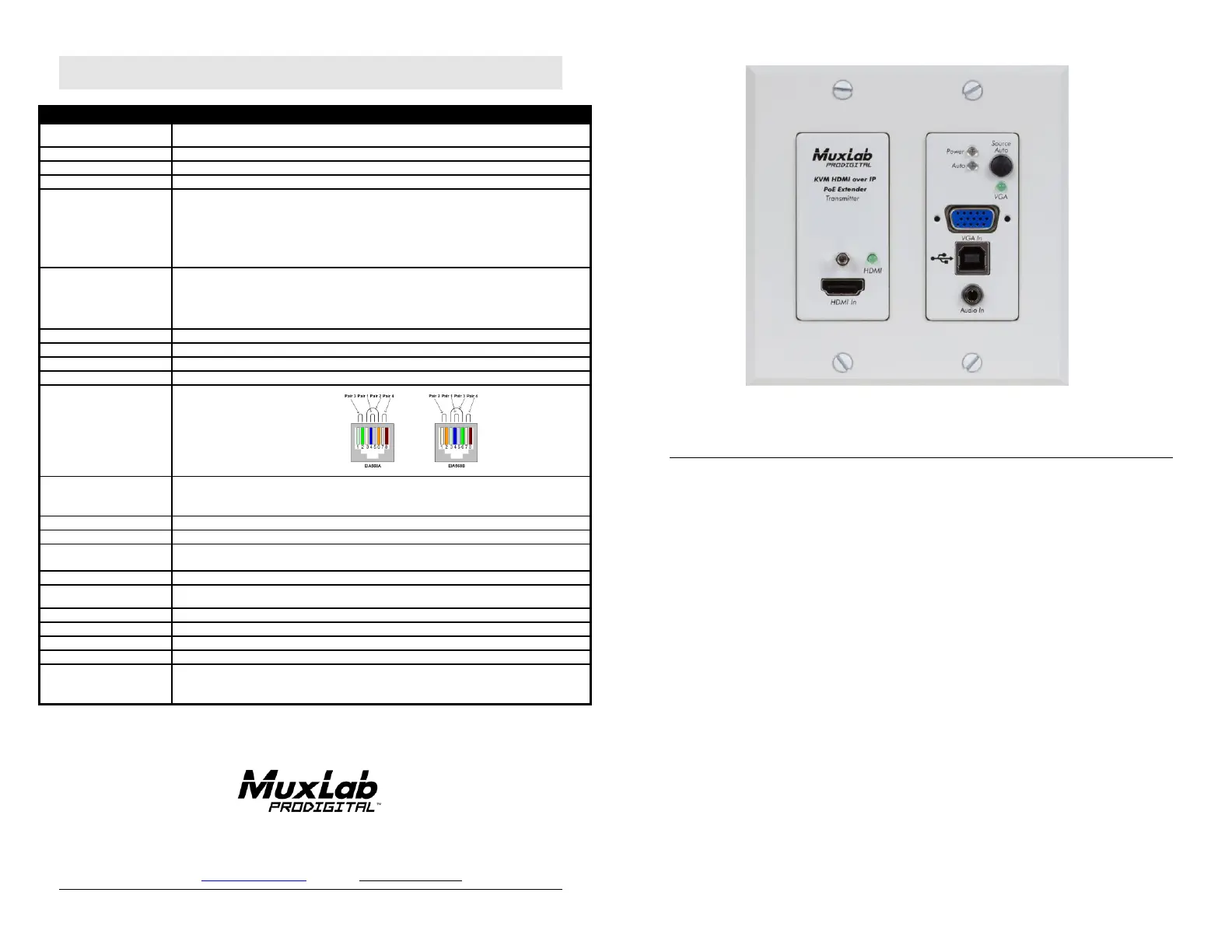

Quick Installation Guide

Overview

The HDMI/VGA over IP PoE Wall Plate Transmitter, 4K/30, DECO fits a standard 2-gang Decora

size electrical box and allows HDMI, VGA and USB equipment to be connected up to 330ft

(100m), with video supported at up to 4K (3840x2160) resolution @ 30Hz via one (1) Cat5e/6

unshielded twisted pair cable in a point-to-point configuration. The USB port may be used for

extending various USB devices including Smart Boards. Point-to-multipoint and multipoint-to-

multipoint configurations are also possible by connecting several Transmitters and Receivers to the

same local Ethernet IP network via an Ethernet Switch. The HDMI/VGA/USB over IP PoE Wall

Plate Transmitter, 4K/30, DECO also supports PoE (PD) if used with a PoE (PSE) Ethernet

Switch. Additional Transmitters may be purchased separately depending on the intended

application and number of units required.

For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet Switch must

have Gigabit ports, Jumbo Frame capability, DHCP Server capability, PoE, and additionally

support the IGMP communication protocol for the multipoint-to-multipoint case.MuxLab

recommends using the Cisco SG350 or SG550 Series Managed Switches.

The MuxLab ProDigital Network Controller is available to simplify the configuration and

utilization of the 500777-TX-DECO and other MuxLab IP based products via an Ethernet web

interface. The MuxControl Android and iOS Application may also be used for connectivity

management, in combination with the Network Controller.

Applications

Applications include commercial and residential AV systems, classroom systems, digital signage,

boardroom systems, conference rooms, and collaborative PC systems.
