Pagina 1/31

SD-MA-010

Solar Wall Management Software User Manual

(SW-Control)

Document No. SD-MA-010

Document Version: 04

Note:

Before starting to use this manual, it is recommended to follow the instructions in ‘SolarWall

Controller Quick Start Guide’ to ensure the SW-Control software has been properly installed

and the controller has been configured and connected to the control PC.

SD-MA-010

Contents

0. Overview

1. Toolbar

1.1. Software Operation

1.1.1. Connect

1.1.2. Disconnect

1.1.3. Communication setting

1.1.4. Configuration

1.1.5. Quit

1.2. Basic Operation

1.2.1. Setting

1.2.2. Multi Screen Wall Operation

1.2.3. Layout File Backup

1.2.4. Preview

1.2.5. Screen Control

1.3. Tools

1.3.1. Management

1.3.2. Layout File Backup

1.3.3. Language

1.3.4. Version

2. Application Toolbar

2.1. Signal Management

2.1.1. Open a window

2.1.2. Cropping

2.1.3. On Screen Display (OSD)

2.1.4. Change the display name of input source

2.1.5. Change EDID on video capture cards

2.2. Layout

2.2.1. Open a layout

2.2.2. Save a layout

2.2.3. Modify a layout

2.2.4. Delete a layout

2.3. Camera List

2.3.1. Set up the IP input signals

2.3.2. Set up the IP Decoder Cards

3. Video Wall Display Area

3.1. Resize a window

3.2. Restore a window

3.3. Move a window

3.4. Full Screen

3.5. Pre-set layout shortcut bar

4. Preview Toolbar

4.1. Set up Preview

4.1.1. Set up the connection of preview card

4.1.2. Preview window function

4.2. Change the Preview setting

SD-MA-010

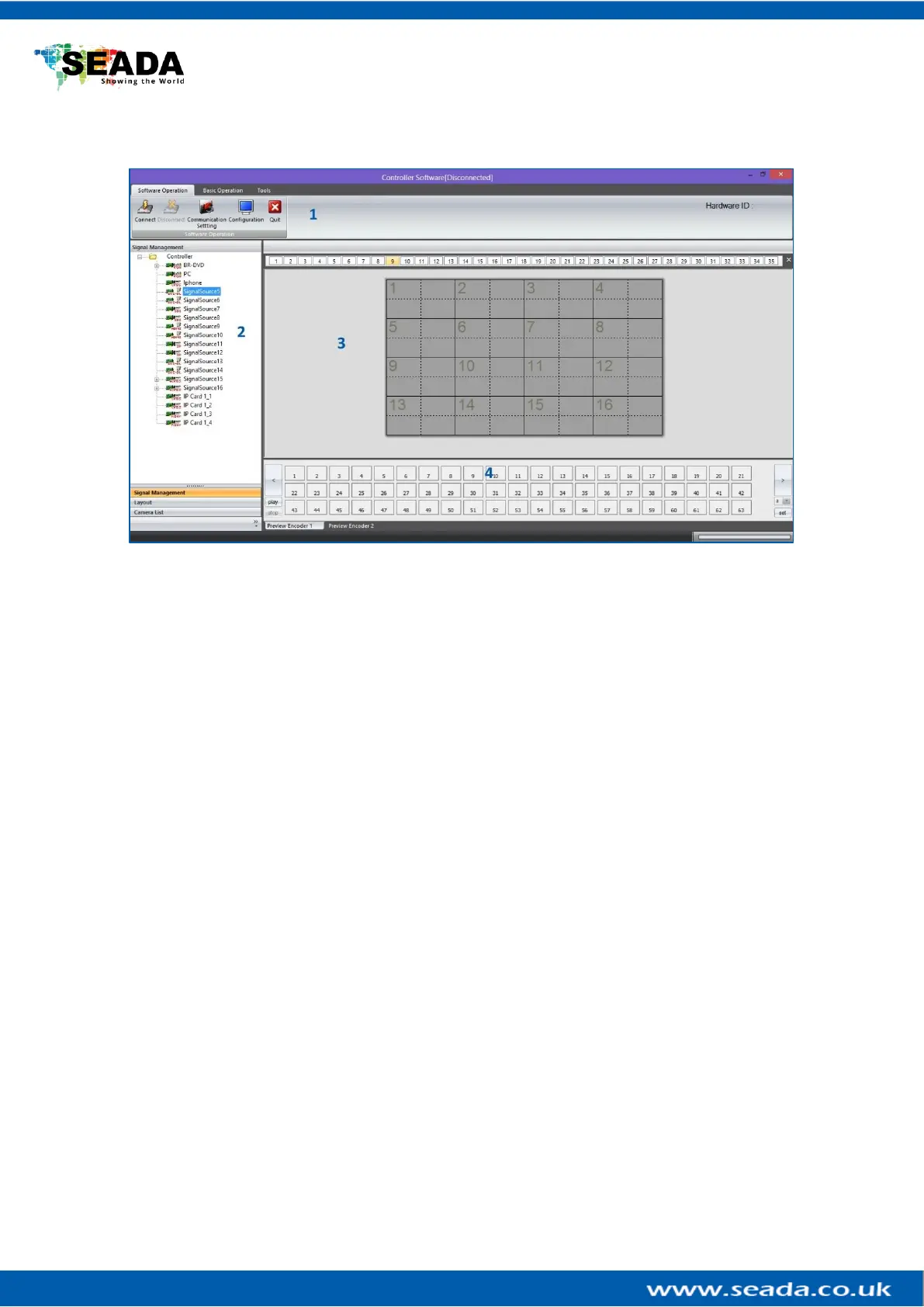

0. overview

SW-Control is a program that is used to control the SolarWall 2000 & 4000 video wall controllers. It

provides a GUI in ribbon style for the users and enable users to interactively move, resize, position

and crop any input capture windows. The whole GUI consists of four main parts:

1. Toolbar

2. Application Toolbar

3. Video Wall Display Area

4. Preview Toolbar

SW-Control enables users to create and save video wall layouts and load them whenever needed.

Moreover, it also allows users to create a layout looping schedule to automatically switch between

different layouts.

 Friendly user interface

 RS232 and Telnet

 Multi language support (English, Korean, Russian, Simplified Chinese, traditional Chinese)

 Create, copy, save and delete layouts

 Import or export layouts

 Short cuts for each layout

 Looping ability between layouts

 Text overlay on any input source

 Position, re-size and crop input windows

 Input signal preview

 Support Windows2000/XP/Vista/7/8.

 User authority management

 Drag and drop easy operation

 Multi video walls control (up to 4 video wall controlling simultaneously)

Product specificaties

Merk:	SEADA
Categorie:	Processor
Model:	SW2016
Kleur van het product:	Zwart
Breedte:	482 mm
Diepte:	380 mm
Hoogte:	175 mm
Ethernet LAN:	Ja
Ondersteunde video-modi:	720p, 1080p, 2160p
HDCP:	Ja
Ingangsspanning:	110 - 240 V
Ethernet LAN, data-overdrachtsnelheden:	10,100,1000 Mbit/s
Temperatuur bij opslag:	0 - 60 °C
Frequentie:	50/60 Hz
Luchtvochtigheid bij opslag:	10 - 90 procent
Rackcapaciteit:	4U
Bedrijfstemperatuur (T-T):	0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V):	10 - 90 procent
RS-232/422-connector:	Ja
