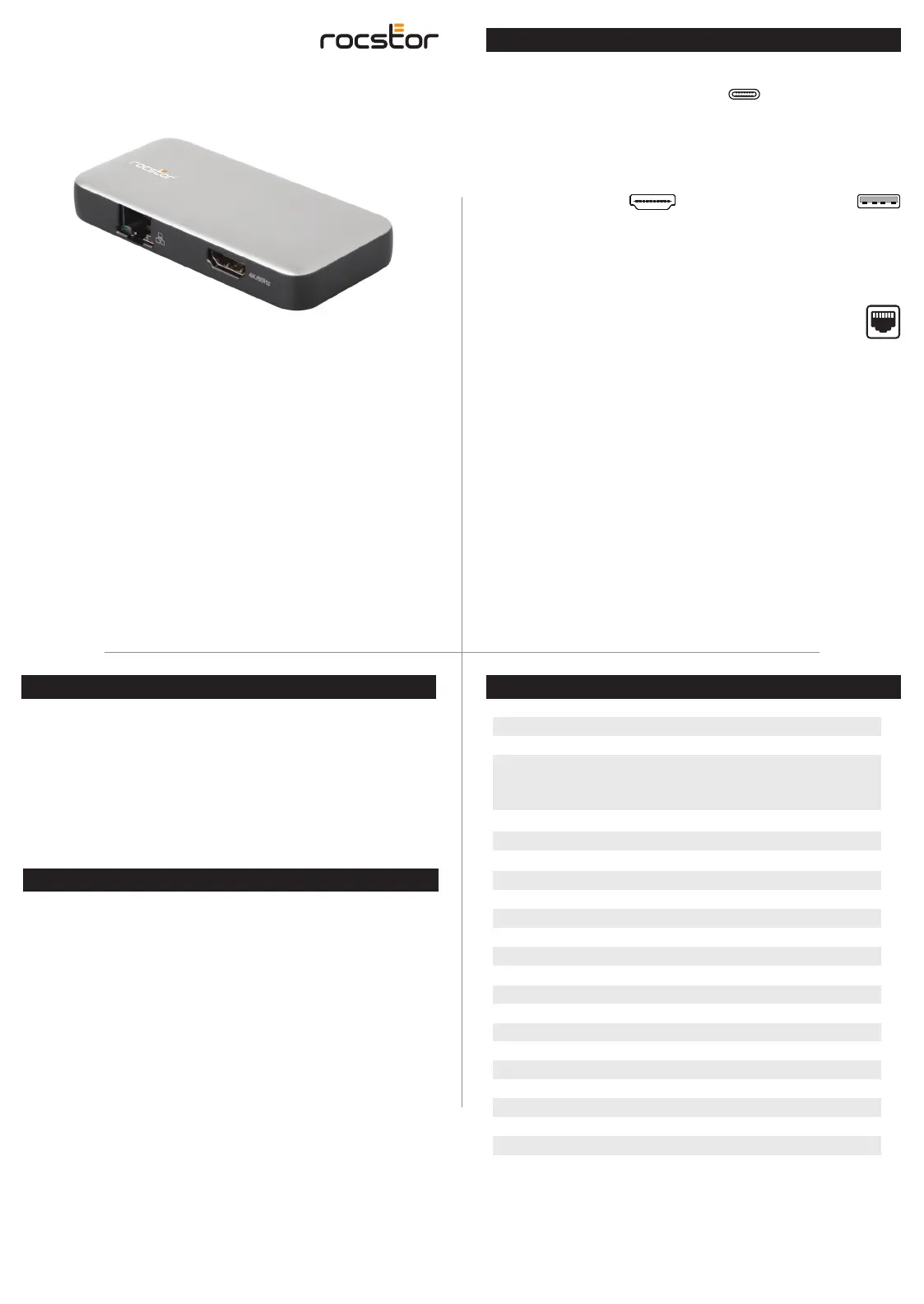

Features

USB Type-C Male (Connect to a host computer)

Rocstor introduces a Type-C 4-in-1 hub featuring HDMI, USB-A, and Gigabit Ethernet

ports, oering an optimal solution for expanding the port options of Type-C/Thunder-

bolt 3 hosts, especially those with a single Type-C port. With its integrated captive

cable that can be conveniently wrapped at the bottom, this hub enhances user

experience and convenience. Utilizing the DP1.4 Alt mode supported IC, it enables

HDMI video output at a maximum resolution of 4k/60Hz while simultaneously

transferring USB 3.1 data at up to 5Gbps. Additionally, the Gigabit Ethernet port

ensures super-fast Ethernet connectivity. Compatible with all DP Alt mode supported

Type-C hosts, this hub provides versatile compatibility and seamless operation.

Before attempting to use this unit, please check the packaging and make sure the

following items are contained in the packaging:

• Main Unit x1

• User Manual

HDMI（DP Alt Mode Only）

• Supports max 4K/60Hz output with

18Gbps Bandwidth

• Supports 8/10 bit color depth output

• Supports output pixel format RGB /

YCbCr4:4:4/ YCbCr4:2:2/ YCbCr4:2:0

• Supports HDR ,HPD

• Supports HDCP 2.2&HDCP1.4

Note:When connecting a DP1.4 Alt mode

supported host, the max resolution of

HDMI is 4k/60Hz; When connecting a

DP1.2 Alt mode supported host, the max

resolution of HDMI is 4k/30Hz due to

bandwidth limitation

Upstream:

Downstream:

• Support DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane),

downward compatible with DP1.2 Alt mode

Note:To get max bandwidth, the host should support DP1.4 Alt mode

USB-A X2

• Max 5Gbps data transmission per port

• Supports USB 3.0 Specication

• Supports short-circuit, over-current,

over-voltage protection

RJ45

• Supports Gigabit

Ethernet,10M/100M/1000M

• Supports Wake-On-LAN

• Supports full duplex ow control

• Light indicates the state, no

light when no Internet connected,

orange light turns on when network

connection is established, yellow light

ashes when transmitting data

Package Contents

Specication

Input

OutputHDMI Female p1-x1

USB-A Female x2

RJ45 x1

USB-C Male x1

3 Years

Operating Temperature

Storage Humidity

Storage Temperature

Operating Humidity

0°C to 45°C (32°F to 113°F)

10% to 90 % RH (no condensation)

-10°C to 70°C (14°F to 158°F)

10% to 90% RH (no condensation)

Introduction

Environmental

Input / Output Connector

Working Voltage

Working Current

4.75-5.3V

400mA-2700mA

2W

Electronic Parameter

Power Consumption

CerticationsFCC, CE

Regulatory Approvals

User ManualEnglish Version

Accessory Adapter

Warranty

Limited Warranty

Operating Temperature

Operating Temperature

Size

0°C to 45°C (32°F to 113°F)

mm

Mechanical

Weightg

®

Type-C to HDMI/USB-AX2/RJ45

with DP1.4 Alt mode

User Manual

Y10A304-B1

Congratulations

Thank you for purchasing this premium Rocstor product. For optimum performance and

safety, please read these instructions carefully before connecting, operating or using this

product. Please keep this manual for future reference.
