Page 1

Rev: 1

Date:090924

Advanced Amplier Interface for

General Motors

AP4-GM71

The AP4-GM71 provides a 6-channel pre-amp output for use with aftermarket audio equipment. The AP4-GM71

delivers a variable 5v RMS pre-amp output with fading, balance, equalization, and level control capabilities. The

module also retains all audio from other vehicle features such as factory navigation prompts, Bluetooth, OnStar, and

parking sensor chimes. A data controlled remote amplier turn on wire is also provided by the AP4-GM71. The module

also provides a variable 2-channel ber optic digital audio output (TOSLINK).

Introduction and Features

Important Notes

1. This interface is only compatible in vehicles with Bose that are equipped with IOS, IOT and IOK Infotainment.

2. The factory amplier must be disconected and removed from the vehicle when the AmpPRO has been installed.

3. The remote output is rated at 2A of current. If more current is needed, an external relay must be used.

4. Channel 5 & 6 are a non-fading outputs. The outputs level of channel 5 & 6 can be controlled using the supplied level

control knob.

5. When the non-fading level control knob is not connected to the AP4-GM71, the output level of channels 5 & 6 will default to

100 percent.

6. To adjust mininum volume or chime volume without using the PC APP the level control knob must be connected.

7. The chime volume and minimum volume levels are set to a sutiable level by default. If you are happy with this level in your

particular application, then additional adjustment is not required. Please refer to the Setup and Conguration section on

page 2 for more details.

8. The factory radio's speed controlled volume and surround sound mode are not supported by the AP4 outputs.

9. When using the TOSLINK output, all chimes must be routed through the front output by setting DIP switch 1 on (down).

10. No adjustments can be made manually using the programming button, or the factory SWC when the module is connected to

a PC.

11. The AP4-GM71 is designed to be installed in the factory amplier location not behind the radio. It will replace the factory

amplier and it will no longer be used.

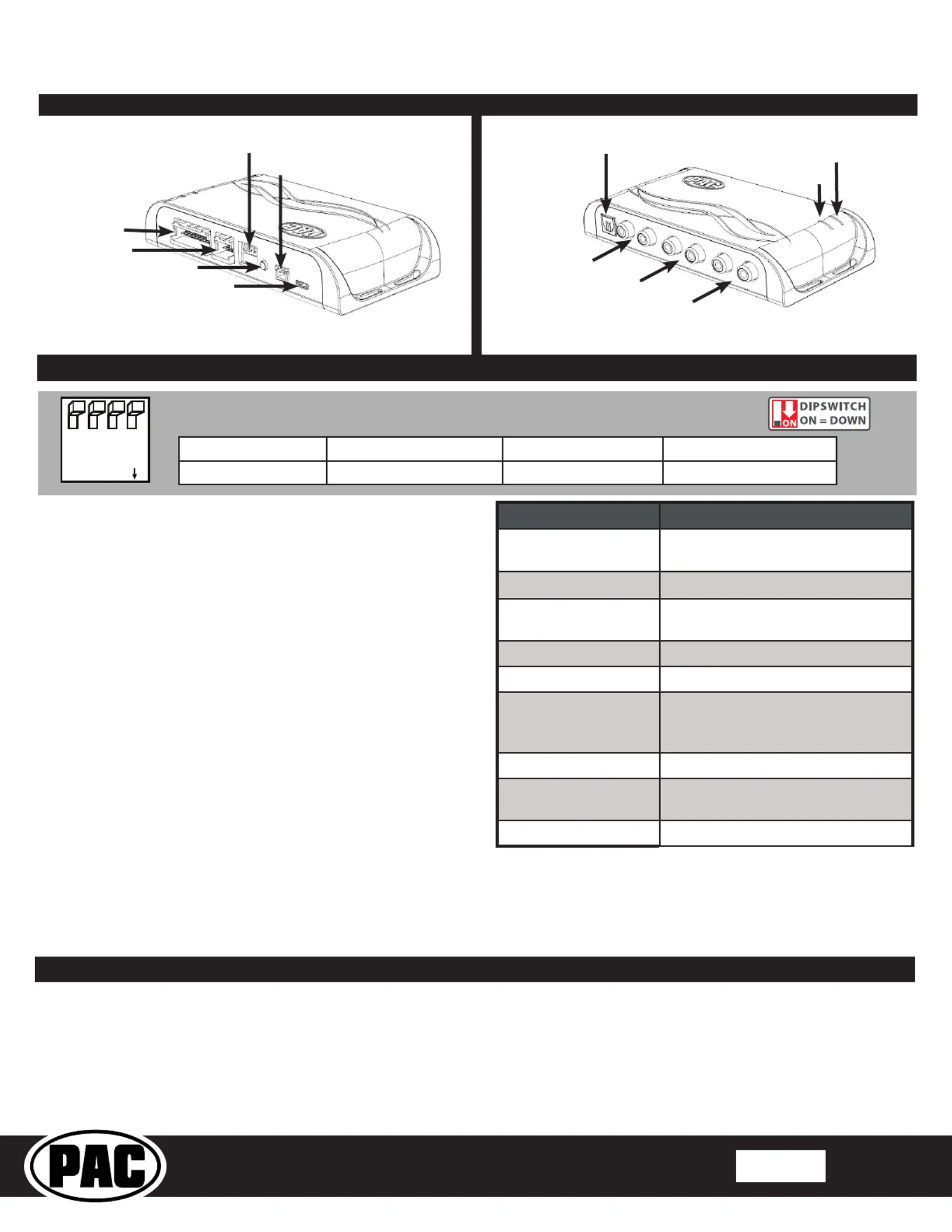

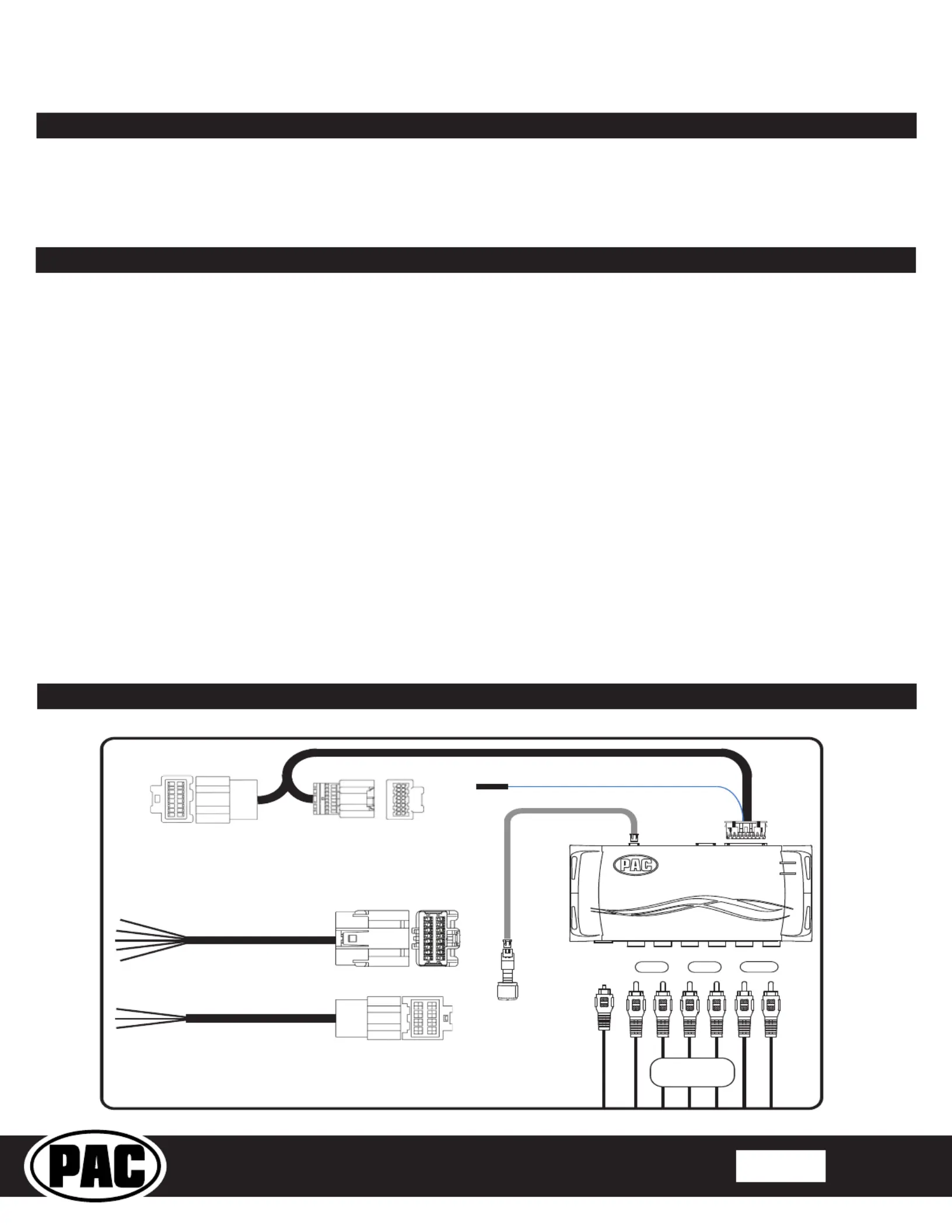

Wiring Connection Chart

Remote Turn On Output

2A Max Output

Front

1/L

2/R

4/R

56

3/L

Rear

Sub

TOSLINK

Speaker

Leads

1-3

AP4-GM71-HAR (A) or (B) Based on Data Type (SEE MANUAL)

To Vehicle

Amplier Harness

Non-Fading

Level Control

Knob

AP4-GM71-HAR (D)

To Aftermarket

Amplifier

Speaker

Leads

4-11

AP4-GM71-HAR (C)
