GE Monogram

®

Assembly Instructions

Before you Begin – Read these instructions completely and carefully.

Note To Installer: Be sure to leave these instructions with the Consumer.

Note to Consumer: Keep these instructions with your Use and Care Book for future reference.

Assembly of this grill cart requires basic mechanical

skills. Proper assembly is the responsibility of the

installer.

NOTE:

This cart must be completely assembled before any

gas connections are made.

If you have questions concerning the installation of

this product, call the GE Answer Center

®

Consumer

Information Service at 800.626.2000, 24 hours a day,

7 days a week.

If you received a damaged Grill Cart, you should

contact your dealer.

Step 1:

Remove

Packaging

Open the box and remove the contents.

Remove packaging and protective film from

all parts.

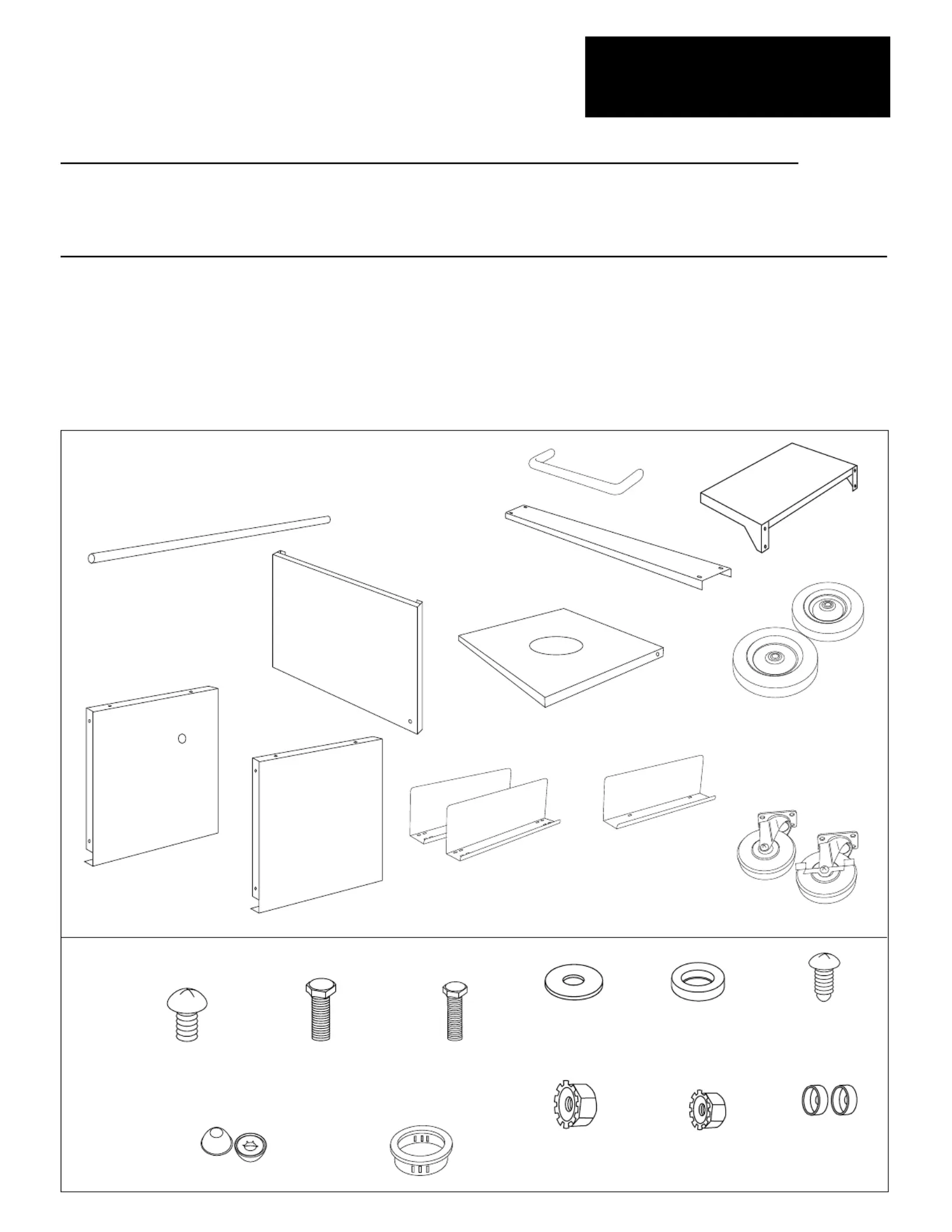

Shelf Handle

Shelf

Back Brace

Bottom/Base Panel

Wheels

Front Panel

Caster with Lock

Locate the hardware accessory package and check contents.

Side Braces

Front Brace

Left Side Panel

Right Side Panel

Axle

1/4-20 x 1/2 Bolts

Count 36

32 required, 4 extra

1/4-20 x 3/4 Bolts

Count 2

no extra

Wheel Caps

Count 2

Black Plastic

Grommet

Count 1

#10 Washers

Count 12

8 required, 4 extra

1/4 Washers

Count 40

32 required, 8 extra

Self-tapping Screws

Count 2

1/4-20 Nuts

Count 36

32 required, 4 extra

10-24 Nuts

Count 10

8 required, 2 extra

Black Plastic

Bezels

Count 2

Phillips Head Screws

Count 10

8 required, 2 extra

Caster

27" Outdoor Cooking Center

Grill Cart

Model ZX27CTYSS
