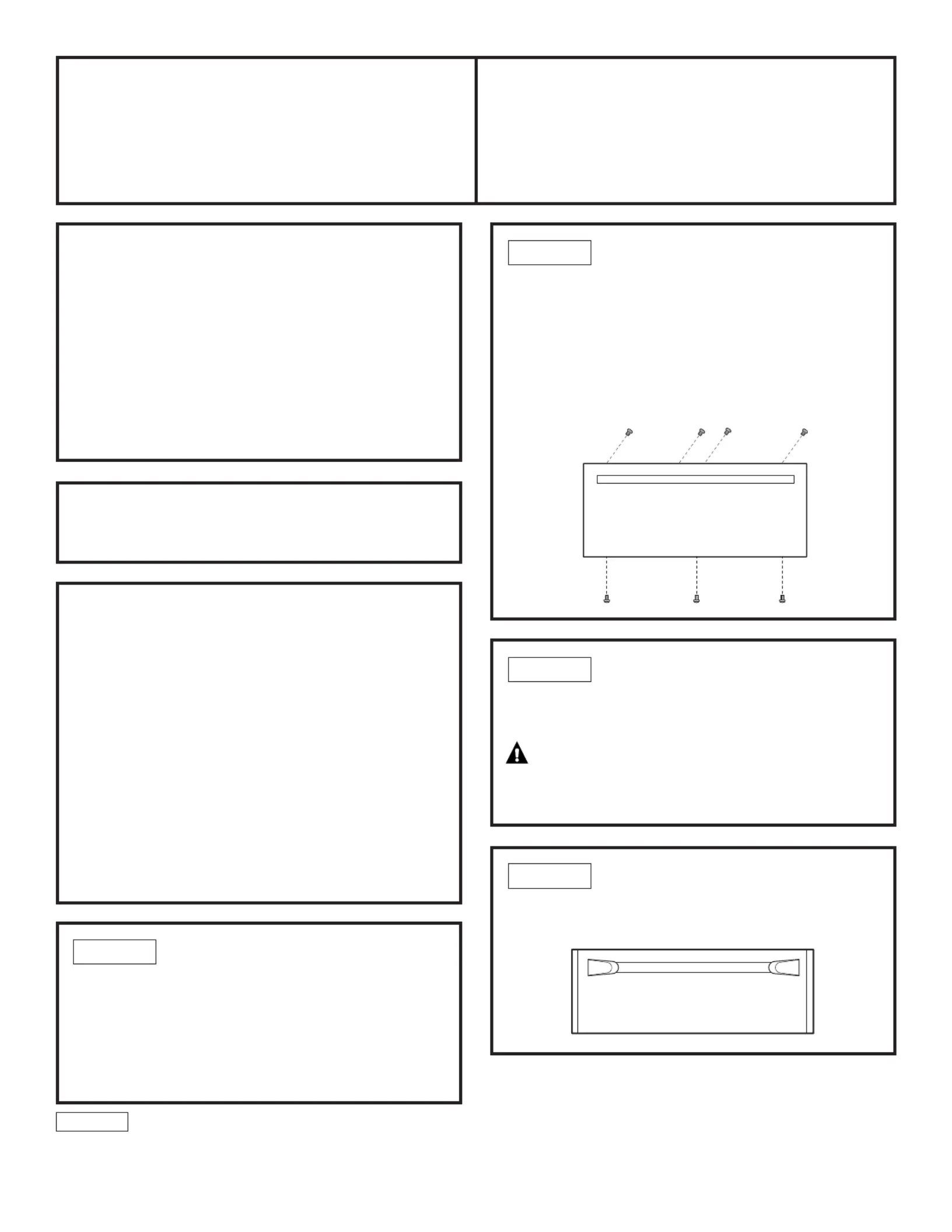

REMOVE ORIGINAL
DRAWER FRONT
•Remove the three screws from the bottom
of the drawer edge.
•Remove the four screws on the inside
of the drawer at the top. Retain all screws.
– Support the drawer front as you remove screws
to prevent the front panel from falling
.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT– Save these instructions
for local inspector’s use. Observe all governing
codes and ordinances.
• Note to Installer– Be sure to leave these
instructions with the Consumer.
• Note to Consumer– Keep these instructions
for future reference.
Installation
Instructions
PROFESSIONAL STYLE PANEL
ACCESSORY KIT
ZXD30P
PARTS SUPPLIED
Stainless Steel Professional Style Drawer
Accessory
This kit contains a stainless steel professional style panel
with a handle and a lamp jewel imbedded in the bottom
right side. Install the warming drawer according to the
installation instructions packed with the product.
NOTE: The ZXD30P professional drawer panel with
handle is a one-piece assembly that replaces the
original drawer front and tubular handle. The original
tubular handle (or a custom handle) cannot be
installed onto this professional drawer panel.
This ZXD30P accessory is designed to fit 30" warming
drawers manufactured after February 2006.
PREPARE DRAWER
FOR PANEL INSTALLATION
IMPORTANT: The drawer must be installed into
the cabinet before opening the drawer.
•Open the drawer approximately halfway.
•Turn the warming drawer to “OFF.”
INSTALL PANEL ONTO DRAWER
• Install the panel assembly to the exposed drawer
front using the original 7 screws.
REMO VE THE PACKAGING
• Open the carton and remove the panel.
Remove all protective covering on both sides.
CAUTION:
Keep all plastic material
away from babies and small children. Plastic could
pose a choking or suffocation hazard.
STEP 2
STEP 3
STEP 4
STEP 1
31-10701-1
10-08 JR
Printed in the United States
TOOL AND MATERIALS REQUIRED
• Phillips screwdriver
