Pagina 1/2
Setting Up Your RackLink Device
- 2 -
- 3 -
- 4 -
IMPORTANT SAFETY INSTRUCTIONS—EN
SAVE THESE INSTRUCTIONS - This manual contains important instructions that should
be followed during installation and maintenance of the power distribution unit (PDU).
For complete safety instructions, refer to the Premium+ PDU with RackLink User
Manual (I-00826) at www.legrandav.com.
• Only use attachments and accessories specified by the manufacturer.
• Read all instructions before using the product.
INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ–FR
CONSERVER CES INSTRUCTIONS - Ce manuel contient des instructions importantes
qui doivent être suivies lors de l’installation et de la maintenance de unité de distribution
d'énergie (PDU).
Pour obtenir des instructions de sécurité complètes, reportez-vous aux manuel d’utilisa-
tion Premium+ PDU with RackLink User Manual (I-00826) à www.legrandav.com.
• Utiliser uniquement les accessoires spécifiés par le fabricant.
• Lisez toutes les instructions avant d’utiliser le produit.

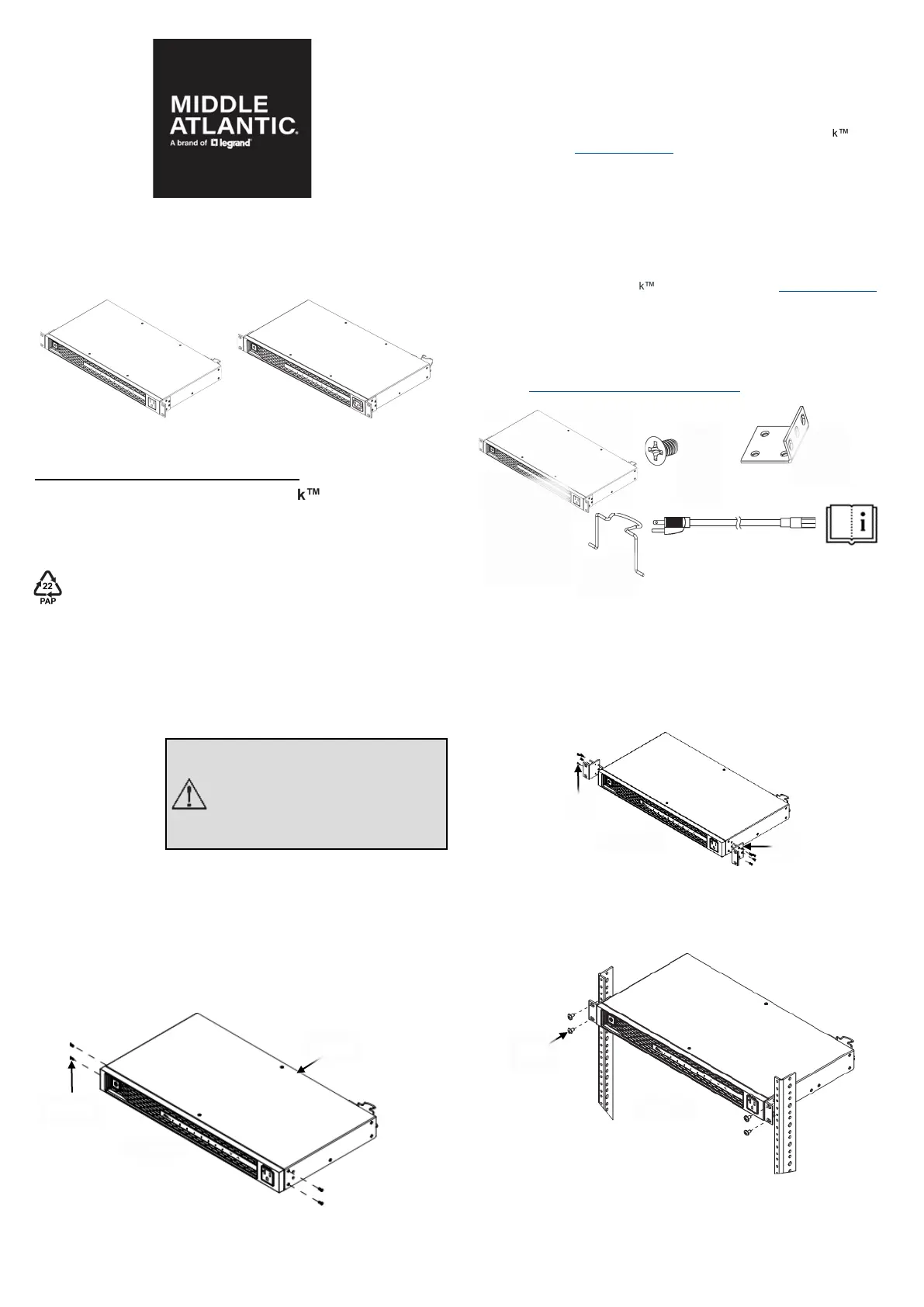

Supplied Components and Hardware
After carefully opening all product packaging, identify the supplied components and hard-
ware shown. If pieces are missing or damaged, please report it immediately to Technical
Support at av.middleatlantic.techsupport@legrand.com or (866) 977-3901.
Keep the original packaging in a safe place for future use.
NOTE:
• To order more hardware, contact support at av.support@legrand.com or (866) 977-
3901.
• Additional hardware is included that may not be required for your installation.
• #1 Phillips Screwdriver
Required Tools
WARNING
Use tools with caution and
follow all safety protocols.
AVERTISSEMENT
Utiliser des outils avec pru-
dence et suivre tous les
protocoles de sécurité.
Supplied Components and Hardware (Continued)
NOTE: Prepare the installation site. Make sure the installation area is clean
and not exposed to extreme temperatures or humidity. Allow sufficient space
around the device for cabling and outlet connections.
1. Use #1 Phillips screwdriver and remove (2x) pre-installed 5/16”
screws from both sides of the PDU (A) as shown. (FIGURE A)
(2x)
Mounting
Bracket
C
(4x)
5/16”
Phillips
Screw
B
Power Cord
NOTE: Cord provided varies
based on model purchased.
E
Quick
Start
Guide
Cord
Retainer
D
2. Use screwdriver, (2x) removed screws, and additional (2x) 5/16” screws
(B) to attach a mounting bracket (C) to each side of the unit as shown
(4x screws pre bracket). (FIGURE B)
A
Setting Up Your RackLink Device (Continued)
FIGURE C
Rack
Screw
FIGURE A
C
FIGURE B
B
3. Attach the mounting brackets to the rack using rack screws (not provided)
as shown. (FIGURE C)
Pre-Installed
Screws
Premium+ Series PDU with RackLink
Quick Start Guide
I-00827 Rev D
Rackmount
Unit
NOTE: Form factor
and outlet type vary
based on model
purchased.
A
- 7 -
- 8 -
- 5 -
WARRANTY
For warranty information, refer to www.legrandav.com/policies/warranty_information.
Contacting Corporate Headquarters
P: (866) 977-3901 | F: (877) 894-6918 | www.legrandav.com |
av.middleatlantic.techsupport@legrand.com
Contacting Middle Atlantic Canada
P: (888) 766-9770 | F: (888) 599-5009 | www.legrandav.com |
av.canada.customerservice@legrand.com
Contacting Middle Atlantic Europe, Middle East, and Africa (EMEA) Technical Support
P: +31 495-726-003 | av.emea.middleatlantic.support@legrand.com
Initial Network Configuration via Device Discovery
1. After launching your RackLink Device Discovery program, the tool
automatically discovers all PDUs on the subnet to which you are
connected.
Use the Discover button to refresh the screen and discover any newly
connected PDUs.
By default, the PDU is set for DHCP. You can identify each device by the
MAC address or IP address.
NOTE: You may need to disable your Windows firewall to discover your PDU.
Contact your network administrator for assistance.
2. Click Device Control to access the default web interface for a specific
device.
• Default network interface address:
192.168.1.200
• Default administrator account credentials:
Username: admin
Password: admin
• Default user account credentials:
Username: user
Password: user
After logging in for the first time, the system forces you to change
default passwords for security purposes.
- 6 -
Connecting Your PDU

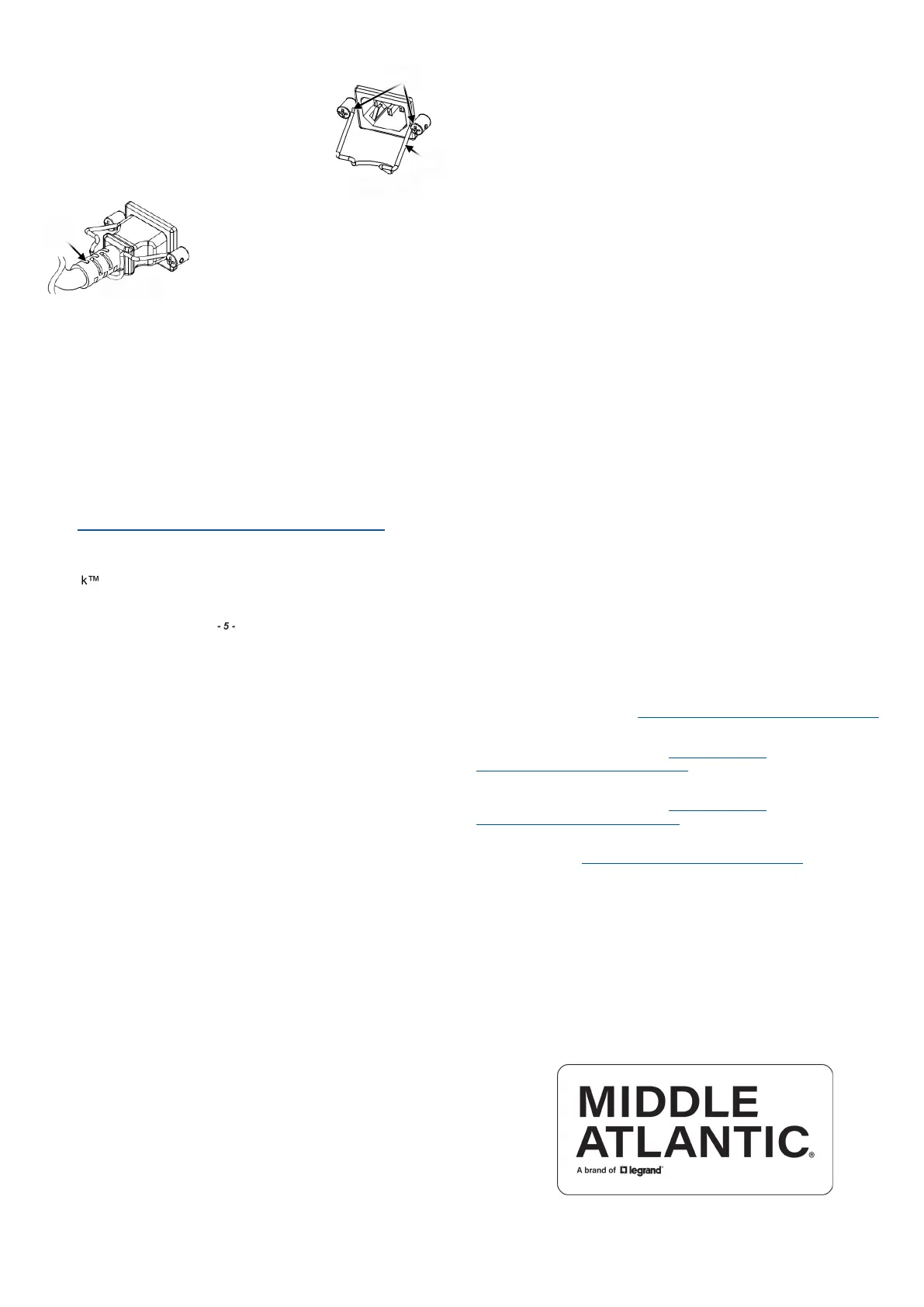

1. Install the cord retainer (D) by inserting two
ends of the retainer into the two tiny holes adjacent
to the inlet as shown. (FIGURE D)
2. Connect the power cable (E) to the inlet, and position
the retainer to secure the cable as shown.
(FIGURE E)
Networking Defaults
Your PDU uses DHCP as the default network configuration. The default static
address is 192.168.1.200.
Installing the RackLink Discovery Tool Software
D
Holes
FIGURE D
3. Connect the other end of the power
cable to an appropriately rated branch
circuit.
4. Your PDU then powers up and per-
forms a brief self-test.
5. Connect a standard Cat5e cable (or better, not provided) to the
ETHERNET port on your PDU.
6. Connect the other end of the Cat5e cable to your network.
Default Web Interface Address and Account Information
At Legrand AV Inc. we are always listening. Your comments are welcome.
Legrand AV is an ISO 9001 and ISO 14001 Registered Company.
United States (US)
Legrand | AV Headquarters
6436 City West Parkway
Eden Prairie, MN, 55344, USA
European Union (EU)
Legrand AV Netherlands
B.V. Franklinstraat 14 6003
DK, Weert, Netherlands
United Kingdom (UK)
Starline Holding Technology Ltd.
(Authorized Representative)
Unit C, Island Rd.
1. If you haven’t done so already, download the Discovery Tool onto your
workstation from the Power Downloads page at:
https://www.legrandav.com/resources/power-downloads
2. Install the application on your workstation. For more information about
installing the Device Discovery tool, refer to the Premium+ PDU with
RackLink User Manual (I-00826) at www.legrandav.com.
If you have questions, please contact support at av.support@legrand.com
or (866) 977-3901.
E
FIGURE E
