I-00636 Rev A
Installation Instructions
SNE Series
SNE Bottom Blank Plate
Panel With Two Brushed Access Points
Panel For Use With Removable Two Space Access Panel
Removable Two Space Panel
Cage Nuts
10-32 Truss Head Phillips Screws
15” Bond Wire
QTY
DESCRIPTION
1
1
1
4
8
2

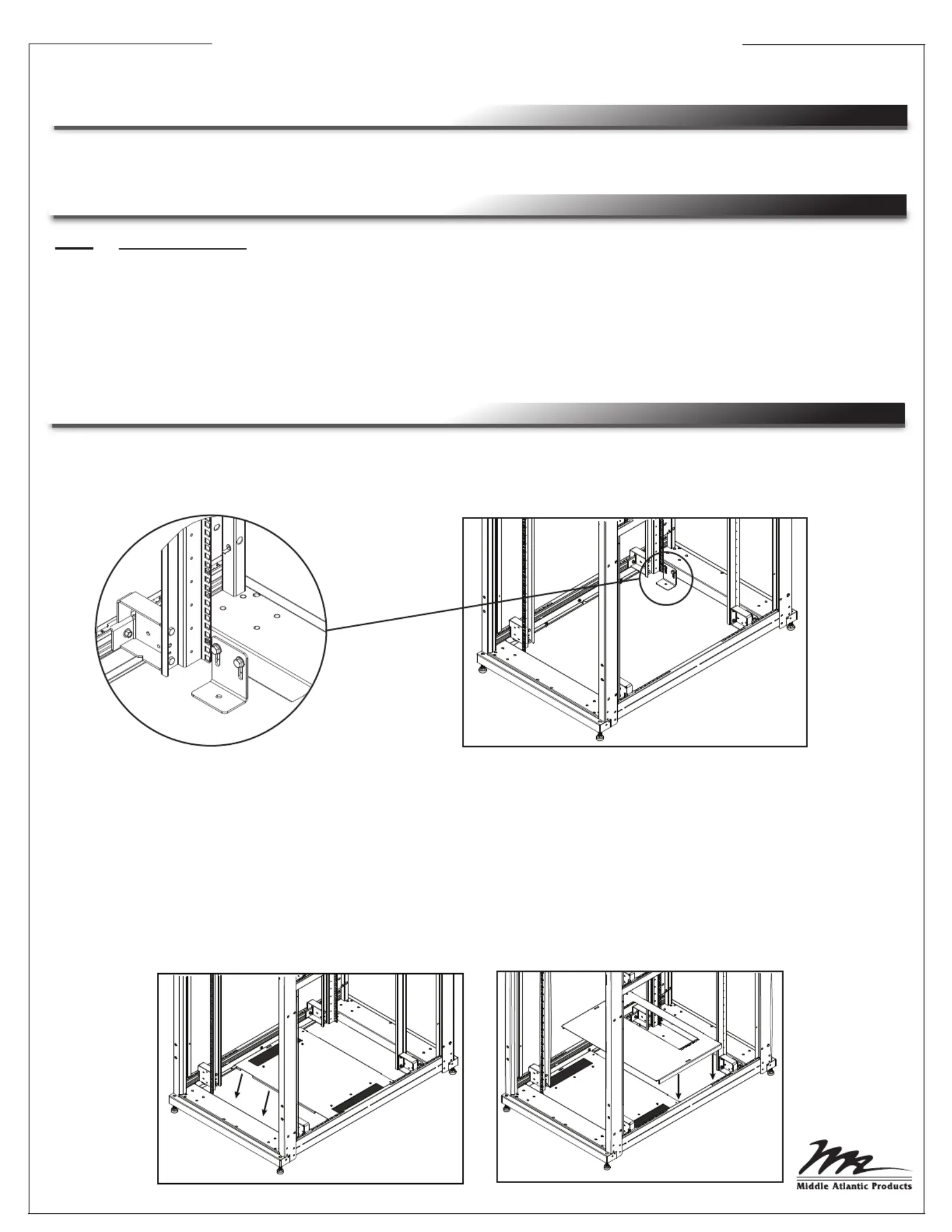

1) Using a 1/2” wrench, remove the shipping brackets, four places. (FIGURE A)
NOTE: Chimney must be positioned and secured prior to installing bottom blank plate.
3) Place the panel with the brushes in the bottom of the enclosure first (FIGURE B). Place the other
panel on the opposite side. The panels can be installed in either the front or back of the enclosure.
(FIGURE C)
#2 Phillips Screwdriver
1/2” Wrench
FIGURE A

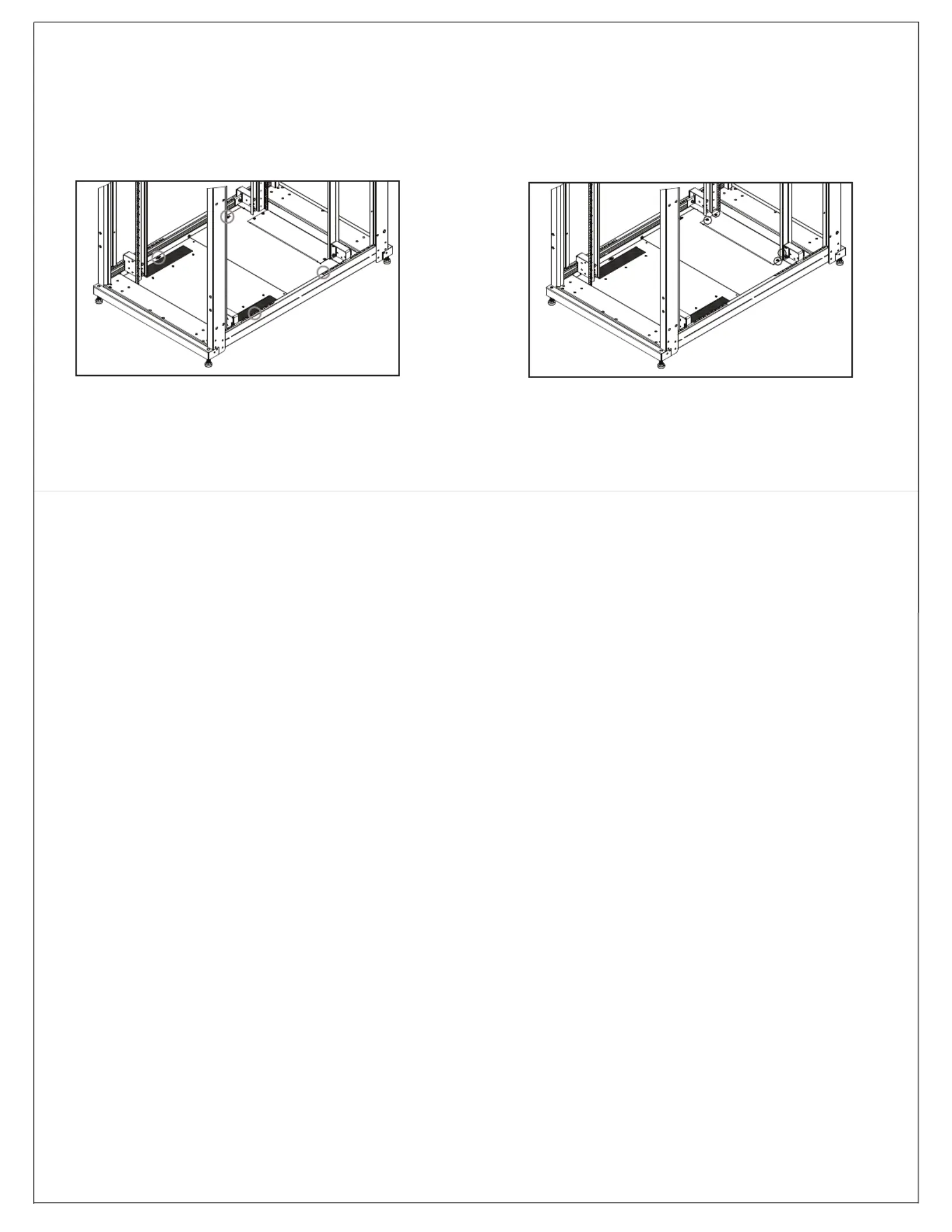

FIGURE B
FIGURE C
INSTALLATION
PARTS LIST
TOOLS REQUIRED
2)Before installing panels, attach the 15” bonding conductor to the panels and SNE frame. The
bonding conductor terminates in a 10/32 ring terminal for connection to the panel and a 1/4-20 ring
terminal for connection to the protective earth terminal (PET) on the SNE frame. The main protective
earth ground needs to be the first terminal placed on the PET and this terminal needs to be secured
on its own (with nut). The bonding conductor for the base plate can be added to the PET after the
securing nut for the main ground.
