Setting Up Your RackLink Device
- 2 -
- 3 -
- 4 -
IMPORTANT SAFETY INSTRUCTIONS—EN
SAVE THESE INSTRUCTIONS - This manual contains important instructions that should
be followed during installation and maintenance of the power distribution unit (PDU).
For complete safety instructions, refer to the Premium+ PDU with RackLink User Man-
ual (I-00826) at www.legrandav.com.
• Only use attachments and accessories specified by the manufacturer.
• Read all instructions before using the product.
INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ–FR
CONSERVER CES INSTRUCTIONS - Ce manuel contient des instructions importantes
qui doivent être suivies lors de l’installation et de la maintenance de unité de distribution
d'énergie (PDU).
Pour obtenir des instructions de sécurité complètes, reportez-vous aux manuel d’utilisa-
tion Premium+ PDU with RackLink User Manual (I-00826) à www.legrandav.com.
• Utiliser uniquement les accessoires spécifiés par le fabricant.
• Lisez toutes les instructions avant d’utiliser le produit.

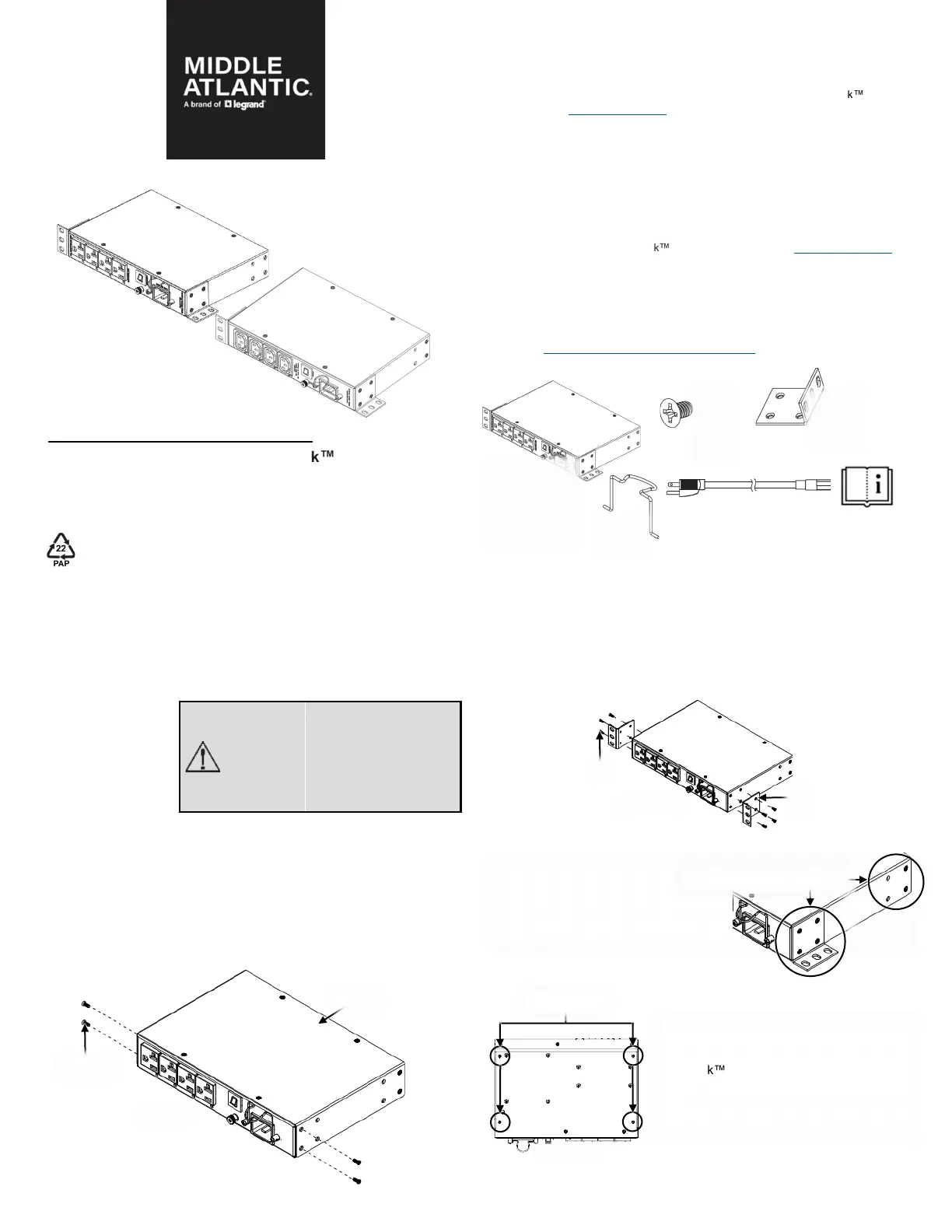

Supplied Components and Hardware
After carefully opening all product packaging, identify the supplied components and hard-
ware shown. If pieces are missing or damaged, please report it immediately to Technical
Support at av.middleatlantic.techsupport@legrand.com or (866) 977-3901.
Keep the original packaging in a safe place for future use.
NOTE:
• To order more hardware, contact support at av.support@legrand.com or (866) 977-
3901.
• Additional hardware is included that may not be required for your installation.
• #1 Phillips Screwdriver
Required Tools
WARNING
Use tools with caution and
follow all safety protocols.
AVERTISSEMENT
Utiliser des outils avec pru-
dence et suivre tous les
protocoles de sécurité.
Supplied Components and Hardware (Continued)
NOTE: Prepare the installaon site. Make sure the installaon area is clean
and not exposed to extreme temperatures or humidity. Allow sucient
space around the device for cabling and outlet connecons.
1. Use #1 Phillips screwdriver and remove (2x) pre-installed 5/16”
screws from both sides of the PDU (A) as shown. (FIGURE A)
NOTE: Mounting brackets
may be attached in front
or back of the unit and in
different orientations
to suit your specific
mounting needs.
(FIGURE C)
Compact Unit
NOTE: Outlet type varies
based on model
purchased.
A
(2x)
Mounting
Bracket
C
(4x)
5/16”
Phillips
Screw
B
Power Cord
NOTE: Cord provided varies
based on model purchased.
E
Quick
Start
Guide
Cord
Retainer
D
2. Use screwdriver, (2x) removed screws, and additional (2x) 5/16” screws
(B) to attach a mounting bracket (C) to each side of the unit as needed
(4x screws pre bracket). (FIGURE B)
A
Pre-Installed
Screws
FIGURE A
Setting Up Your RackLink Device (Continued)
C
B
FIGURE B
NOTE: You can even attach the PDU to
LeverLock plates using (4x) 6-32 screws
(not provided) in the threaded holes on the
bottom of the unit. (FIGURE D)
FIGURE C
Attach brackets in front or back
location and in desired orientation.
Threaded Holes
(PDU Bottom)
FIGURE D
Premium+ Series PDU with RackLink
Quick Start Guide
I-00864 Rev D
- 7 -
- 8 -
- 5 -
WARRANTY
For warranty information, refer to www.legrandav.com/policies/warranty_information.
Contacting Corporate Headquarters
P: (866) 977-3901 | F: (877) 894-6918 | www.legrandav.com |
av.middleatlantic.techsupport@legrand.com
Contacting Middle Atlantic Canada
P: (888) 766-9770 | F: (888) 599-5009 | www.legrandav.com |
av.canada.customerservice@legrand.com
Contacting Middle Atlantic Europe, Middle East, and Africa (EMEA) Technical Support
P: +31 495-726-003 | av.emea.middleatlantic.support@legrand.com
Initial Network Configuration via Device Discovery
1. After launching your RackLink Device Discovery program, the tool
automatically discovers all PDUs on the subnet to which you are
connected.
Use the Discover button to refresh the screen and discover any newly
connected PDUs.
By default, the PDU is set for DHCP. You can identify each device by the
MAC address or IP address.
NOTE: You may need to disable your Windows firewall to discover your PDU.
Contact your network administrator for assistance.
2. Click Device Control to access the default web interface for a specific
device.
• Default network interface address:
192.168.1.200
• Default administrator account credentials:
Username: admin
Password: admin
• Default user account credentials:
Username: user
Password: user
After logging in for the first time, the system forces you to change
default passwords for security purposes.
- 6 -
Networking Defaults
Your PDU uses DHCP as the default network configuration. The default static
address is 192.168.1.200.
Installing the RackLink Discovery Tool Software
Default Web Interface Address and Account Information
At Legrand AV Inc. we are always listening. Your comments are welcome.
Legrand AV is an ISO 9001 and ISO 14001 Registered Company.
United States (US)
Legrand | AV Headquarters
6436 City West Parkway
Eden Prairie, MN, 55344, USA
European Union (EU)
Legrand AV Netherlands
B.V. Franklinstraat 14 6003
DK, Weert, Netherlands
United Kingdom (UK)
Starline Holding Technology Ltd.
(Authorized Representative)
Unit C, Island Rd.
Reading RG2, 0RP- UK
1. If you haven’t done so already, download the Discovery Tool onto your
workstation from the Power Downloads page at:
https://www.legrandav.com/resources/power-downloads
2. Install the application on your workstation. For more information about
installing the Device Discovery tool, refer to the Premium+ PDU with
RackLink User Manual (I-00826) at www.legrandav.com.
If you have questions, please contact support at av.support@legrand.com
or (866) 977-3901.

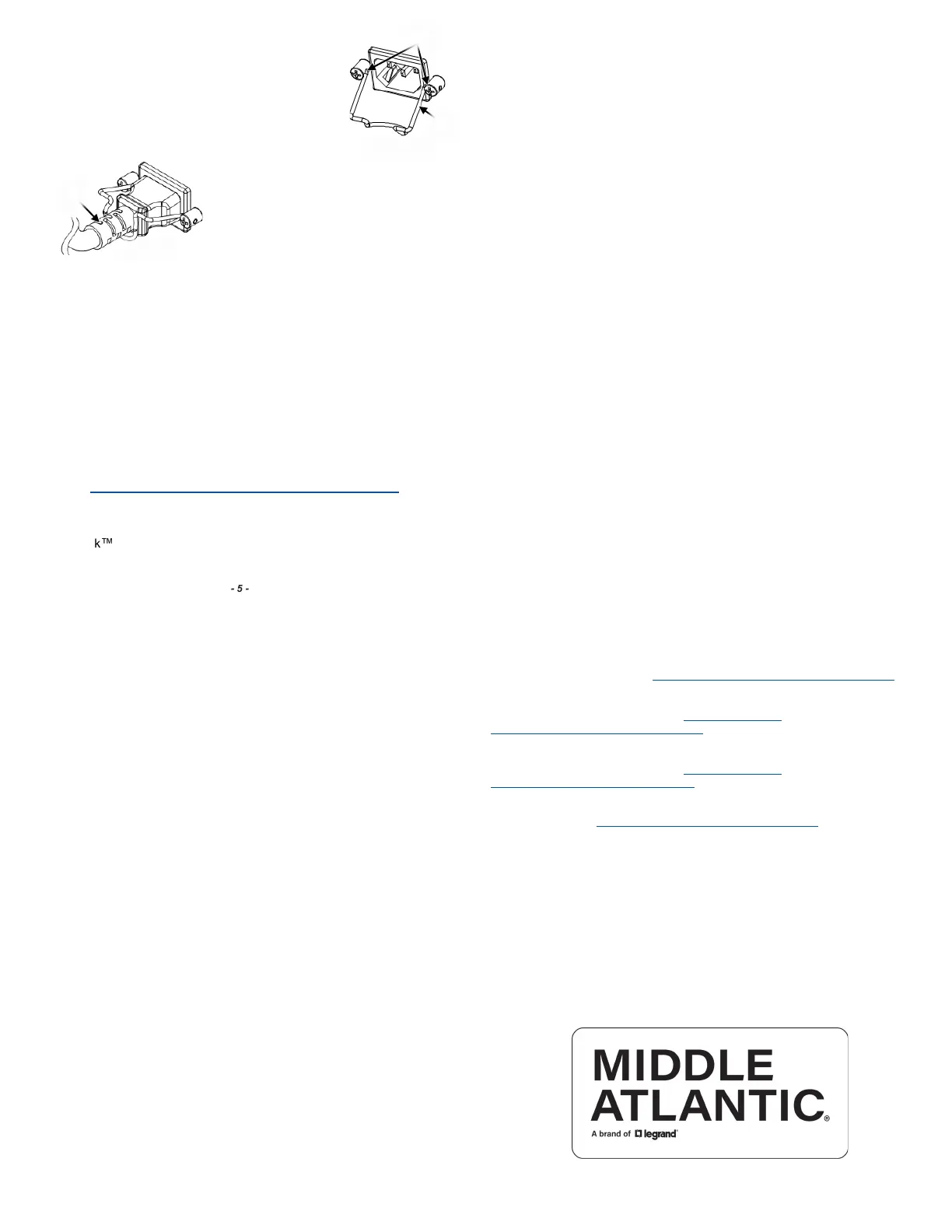

Connecting Your PDU
1. Install the cord retainer (D) by inserting two
ends of the retainer into the two tiny holes adjacent
to the inlet as shown. (FIGURE D)
2. Connect the power cable (E) to the inlet, and position
the retainer to secure the cable as shown.
(FIGURE E)
D
Holes
FIGURE D
3. Connect the other end of the power
cable to an appropriately rated
receptacle.
4. Your PDU then powers up and
performs a brief self-test.
5. Connect a standard Cat5e cable (or better, not provided) to the
ETHERNET port on your PDU.
6. Connect the other end of the Cat5e cable to your network.
E
FIGURE E
