Setting Up Your RackLink Device
-2 -
-3 -
-4 -
IMPORTANT SAFETY INSTRUCTIONS—EN
SAVE THESE INSTRUCTIONS - This manual contains important instructions that should
be followed during installation and maintenance of the power distribution unit (PDU).
For complete safety instructions, refer to the Premium+ PDU with RackLinkUser Man-
ual (I-00826) at www.legrandav.com.
• Only use attachments and accessories specified by the manufacturer.
• Read all instructions before using the product.
INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ–FR
CONSERVER CES INSTRUCTIONS - Ce manuel contient des instructions importantes
qui doivent être suivies lors de l’installation et de la maintenance de unité de distribution
d'énergie (PDU).
Pour obtenir des instructions de sécurité complètes, reportez-vous aux manuel d’utilisa-
tion Premium+ PDU with RackLinkUser Manual (I-00826) à www.legrandav.com.
• Utiliser uniquement les accessoires spécifiés par le fabricant.
• Lisez toutes les instructions avant d’utiliser le produit.

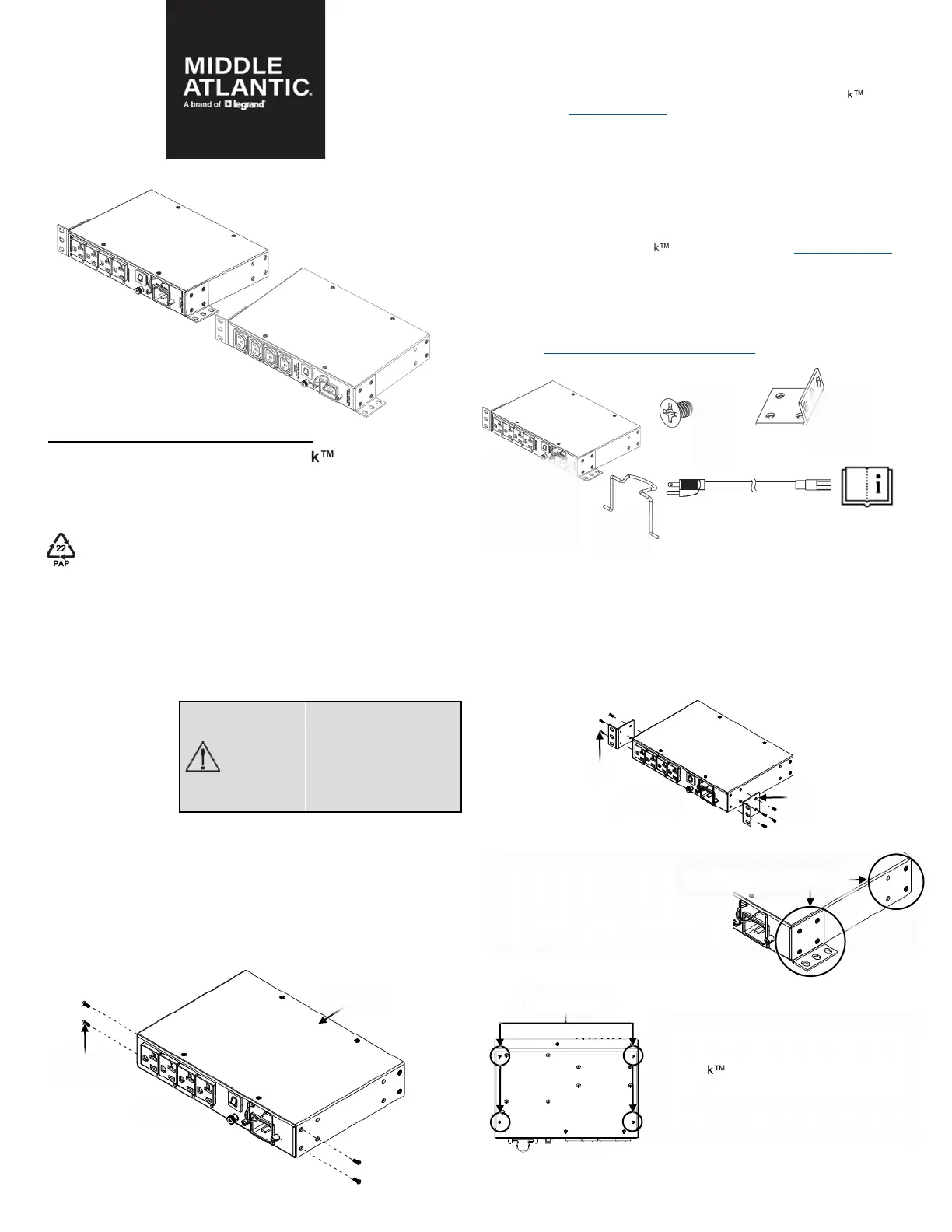

Supplied Components and Hardware
After carefully opening all product packaging, identify the supplied components and hard-
ware shown. If pieces are missing or damaged, please report it immediately to Technical
Support at av.middleatlantic.techsuppo[email protected] or (866) 977-3901.
Keep the original packaging in a safe place for future use.
NOTE:
• To order more hardware, contact support at av.support@legrand.com or (866) 977-
3901.
• Additional hardware is included that may not be required for your installation.
• #1 Phillips Screwdriver
Required Tools
WARNING
Use tools with caution and
follow all safety protocols.
AVERTISSEMENT
Utiliser des outils avec pru-
dence et suivre tous les
protocoles de sécurité.
Supplied Components and Hardware (Continued)
NOTE: Prepare the installaon site. Make sure the installaon area is clean
and not exposed to extreme temperatures or humidity. Allow sucient
space around the device for cabling and outlet connecons.
1.Use #1 Phillips screwdriver and remove (2x) pre-installed 5/16”
screws from both sides of the PDU (A) as shown. (FIGURE A)
NOTE: Mounting brackets
may be attached in front
or back of the unit and in
different orientations
to suit your specific
mounting needs.
(FIGURE C)
Compact Unit
NOTE: Outlet type varies
based on model
purchased.
A
(2x)
Mounting
Bracket
C
(4x)
5/16”
Phillips
Screw
B
Power Cord
NOTE: Cord provided varies
based on model purchased.
E
Quick
Start
Guide

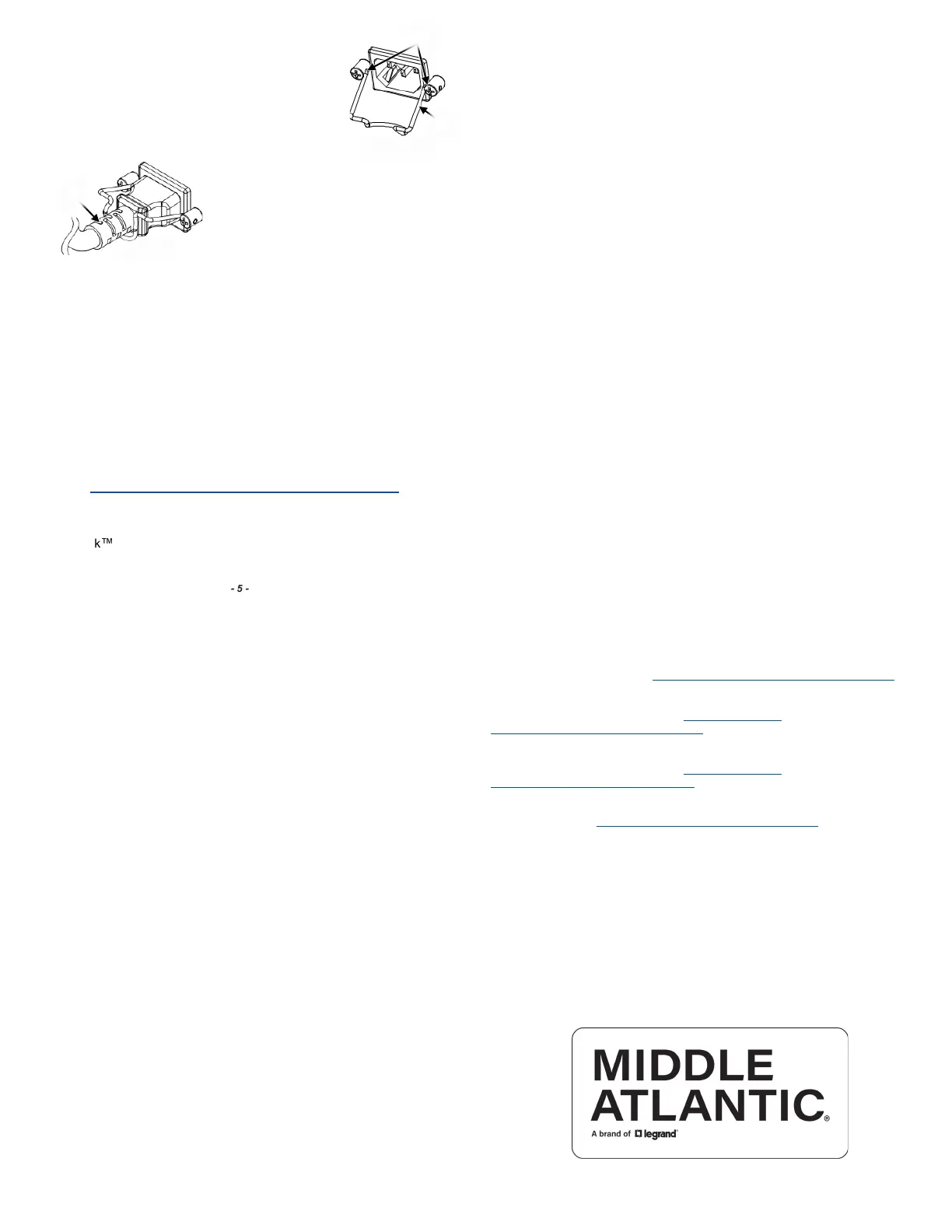

Cord
Retainer
D
2.Use screwdriver, (2x) removed screws, and additional (2x) 5/16” screws
(B) to attach a mounting bracket (C) to each side of the unit as needed
(4x screws pre bracket). (FIGURE B)
A
Pre-Installed
Screws
FIGURE A
Setting Up Your RackLink Device (Continued)
C
B
FIGURE B
NOTE: You can even attach the PDU to
LeverLockplates using (4x) 6-32 screws
(not provided) in the threaded holes on the
bottom of the unit. (FIGURE D)
FIGURE C
Attach brackets in front or back
location and in desired orientation.
Threaded Holes
(PDU Bottom)
FIGURE D
Premium+ Series PDU with RackLink
Quick Start Guide
I-00864 Rev D
