INSTALLATION SHEET

AT68010

All-Terior LED Wall Sconce

START FROM HERE

1a.

1b.1c.1d.2a.2b.2c.

2d.

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all times during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

Please Note:

• This Kuzco LED fixture comes with pre-wired LED module(s).

• Unless instructed to do so, please do not touch any part of the LED module(s) as any

unnecessary contact with the module could cause permanent damage.

• For dimming, an ELV (Electronic Low Voltage) or TRIAC type of dimmer is required.

• 120V input

Remove the fixture from its original packaging. Remove

the mounting plate from within the canopy backplate (1c)

(2a)(2d) by loosening the four set screws and two screws

(2b). Secure the mounting plate to the junction box (1c)

(1a)(1d) with screws provided in the hardware package.

1.

2.

3.

FOR OUTDOOR OPTION ONLY

To prevent moisture from entering the outlet box and

causing a short, seal around the top and side perimeter

between the fixture and the wall surface with weather

resistant caulking . The space at bottom (see Illustration 1)

should be left un-caulked to prevent moisture build-up.

Illustration 1

caulking

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20210713

4a.

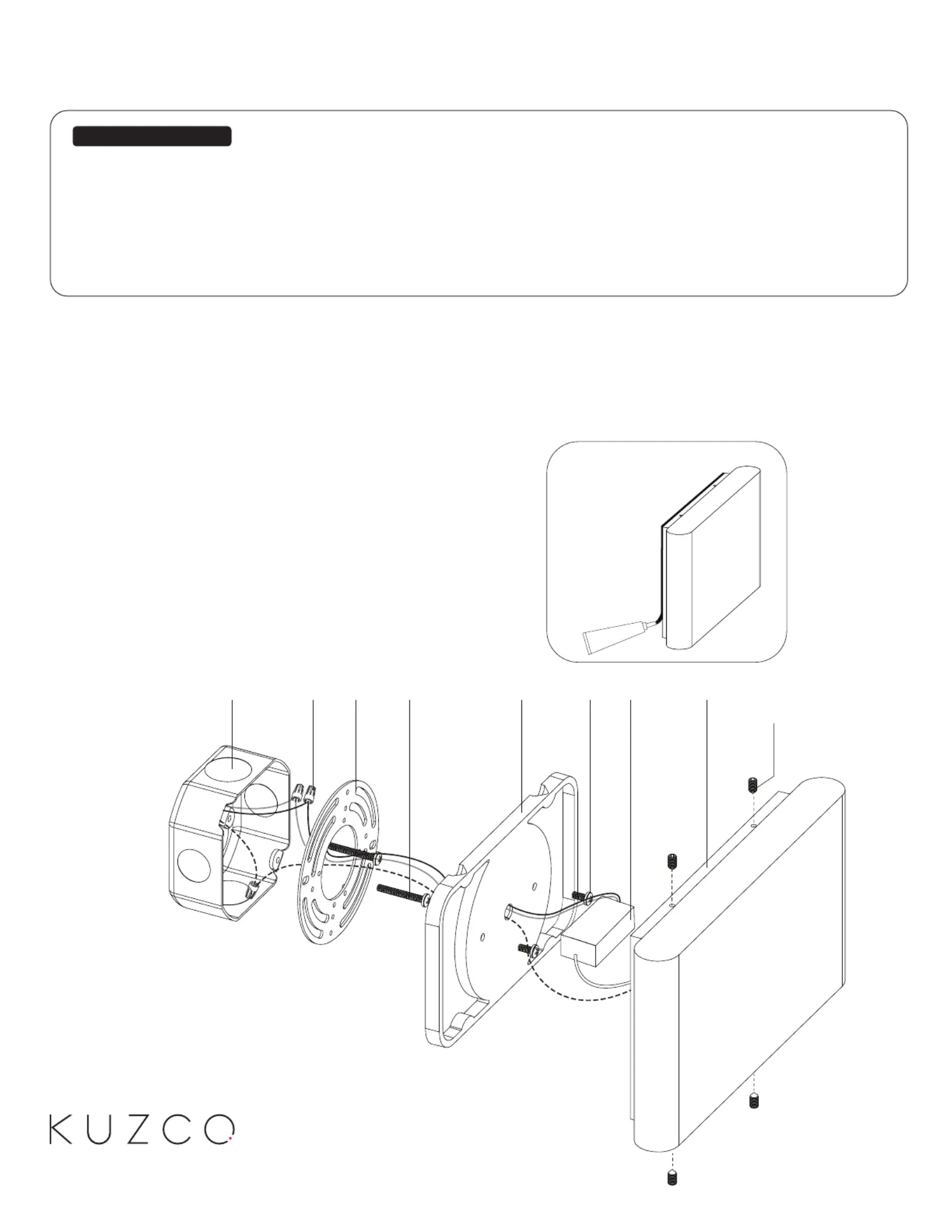

Attach the canopy backplate to the mounting plate (2a)

(1c)(1a), which is attached to the electrical junction box

on the wall. First, make proper electrical connections

(black to to “N”, to hot white“L”, neutralground“GND”)

with wire nuts provided in hardware package and (1b)

place driver in canopy . Now direct the canopy (4a) (2c)

backplate (2a) onto the mounting plate (1c) be sure to line

up the mounting threaded holes with the screws (2b).

Next, place the canopy onto the canopy backplate (2c)

(2a)(2d). and secure with all four set screws
