INSTALLATION SHEET

EW29548

LED Exterior Wall Sconce

Remove fixture from its original package

Separate mounting plate from canopy by (1c)(2a)

removing canopy screws (2b)

Attach mounting plate to electrical junction box (1c)(1a)

using junction box screws provided in hardware (1e)

package

Secure mounting plate to mounting surface with (1c)

anchors (1f) and screws (1g)

Make proper electrical connections ( to blackhot “L”,

whiteground“GND”) to “N”, neutral to with wire nuts

(1b) (4a)provided in hardware package and place driver

in canopy (2a)

Attach canopy to mounting plate with canopy (2a)(1c)

screws (2b)

To prevent moisture from entering the electrical junction

box (1a) and causing a short, seal around the top and side

perimeter between the fixture and the wall surface with

weather resistant caulking. The space (See Illustration 1)

at the bottom should be left un-caulked to prevent

moisture build up.

START FROM HERE

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

Please Note:

•This Kuzco LED fixture comes with pre-wired LED module(s)

•Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• For dimming, an ELV (Electronic Low Voltage) or TRIAC type of dimmer is required

• 120V input

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20230109

1.

4.

5.

6.

7.

2.

3.

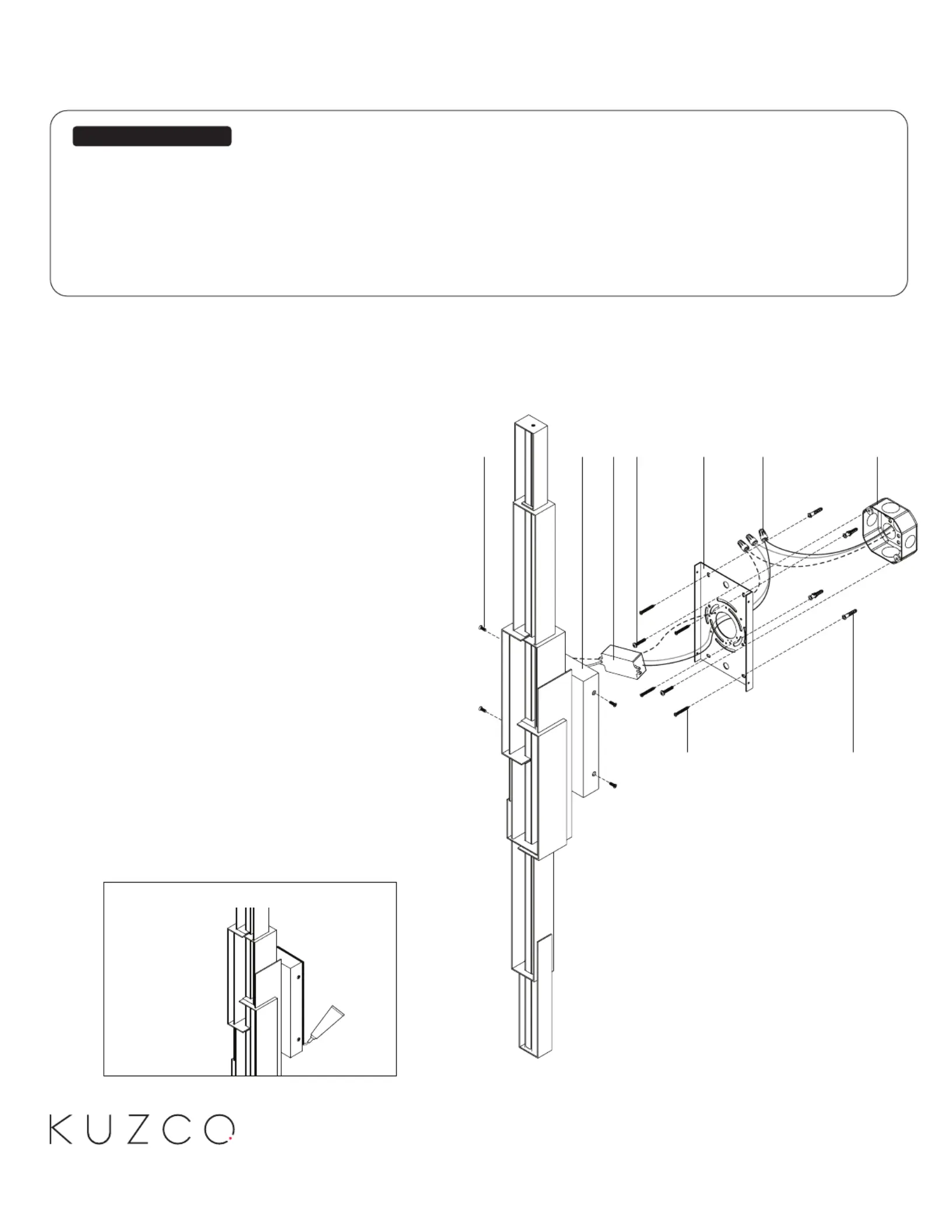

1a.

1f.1g.

1b.1c.1e.4a.2a.2b.

Illustration 1

caulking
