INSTALLATION SHEET

LED Wall Sconce

START FROM HERE

WS25336

1a.

1b.

1j.

1e.

1a.

1g.

1b.

1c.

1e.

2a.

2b.

3a.

3c.

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20190910

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

Please Note:

• This Kuzco LED fixtures come with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• Use ELV (Electronic Low Voltage) or TRIAC type of dimmer for dimming application

Optional Single Gang

Box Illustration

2b.

3a.

3c.

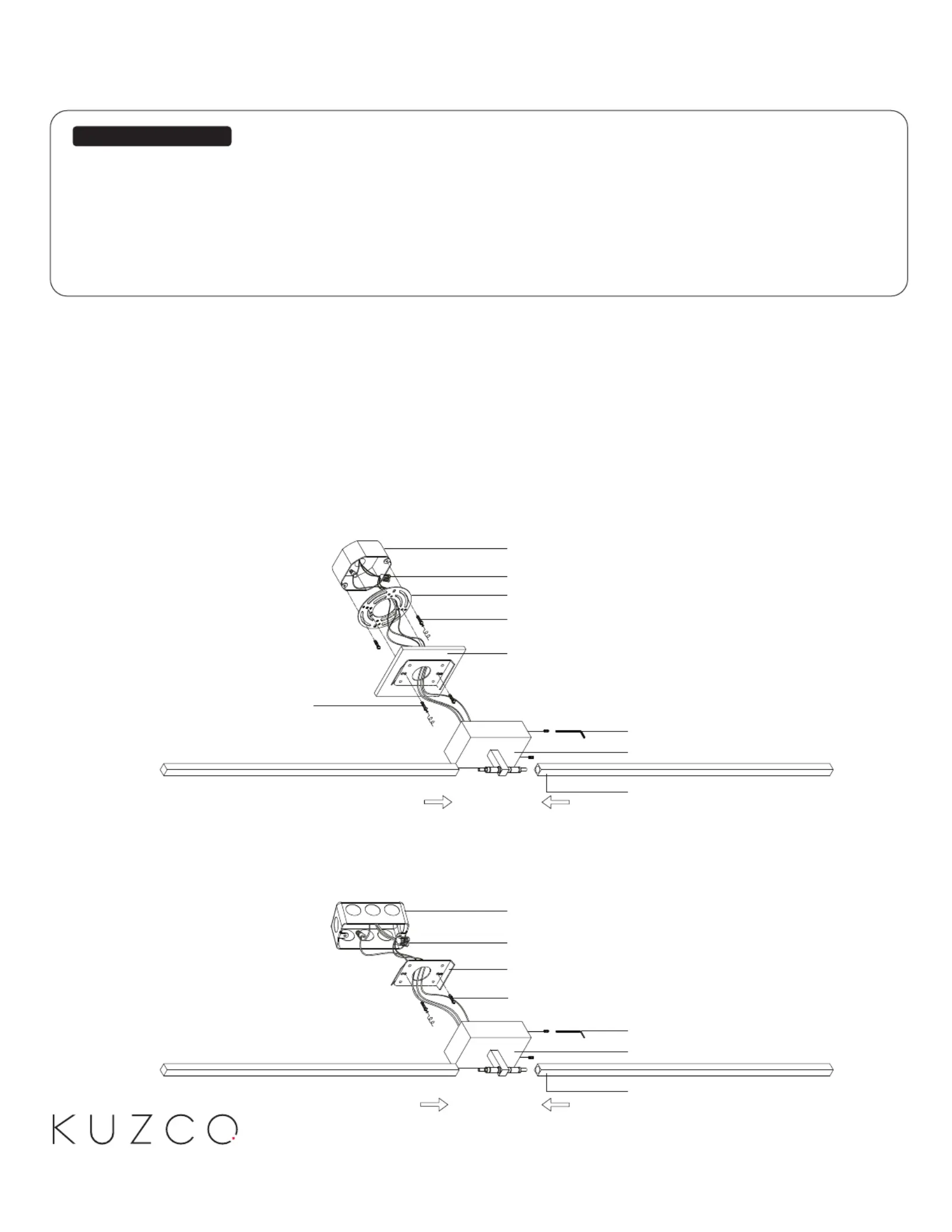

1. Remove fixture from its original package

2. Separate canopy from fixture body by (2a) (3a)

loosening set screws with allan key (2b)

3. Separate mounting plate from canopy by (1c)(2a)

removing screws (1g)

4. Attach mounting plate to electrical junction box (1c)(1a)

using screws provided in hardware package(1e)

5. Attach canopy to mounting plate and secure (2a)(1c)

with screws (1g)

6. Optional Single Gang Box Installation: Attach

mounting plate to electrical junction box using (1j)(1a)

screws provided in hardware package(1e)

7. Make proper electrical connections (black to hot “L”,

white to neutral “N”, ground to “GND”) with wire nuts

(1b) provided in hardware package

8. Attach fixture body to canopy or mounting plate (3a)(2a)

(1j) and then secure with set screws with allan key (2b)

9. Insert lamp heads into socket on fixture body (3c)(3a)
