Backup Driver Wiring

Please choose the appropriate dimming according to your needs. You can also choose not to use this function.

NOTE: The product can’t be connected to a dimming device when it is equipped with Motion Sensor.

2. Flexible cord for connection

WARNING

• To reduce the risk of personal injury or property damage

from re, electric shock, falling parts, cuts/abrasions, and

other hazards read all warnings and instructions included

with and on the xture and all xture labels.

• Commercial installation, service and maintenance of

luminaries should be performed by a qualied licensed

electrician. If you are unsure about the installation or

maintenance of the luminaries, consult a qualied licensed

electrician and check your local electrical code.

• Turn off electrical power at fuse or circuit breaker before wiring xture to the power supply.

• Turn off the power when you perform any maintenance.

• All connections should be capped with UL approved wire connectors.

• Verify that supply voltage is correct by comparing it with the luminaire label information.

• Do not install in a hazardous atmosphere, except where the ambient temperature does not exceed the rated operating

temperature of the xture.

• Use min. 90°C supply.

• Damp location rated.

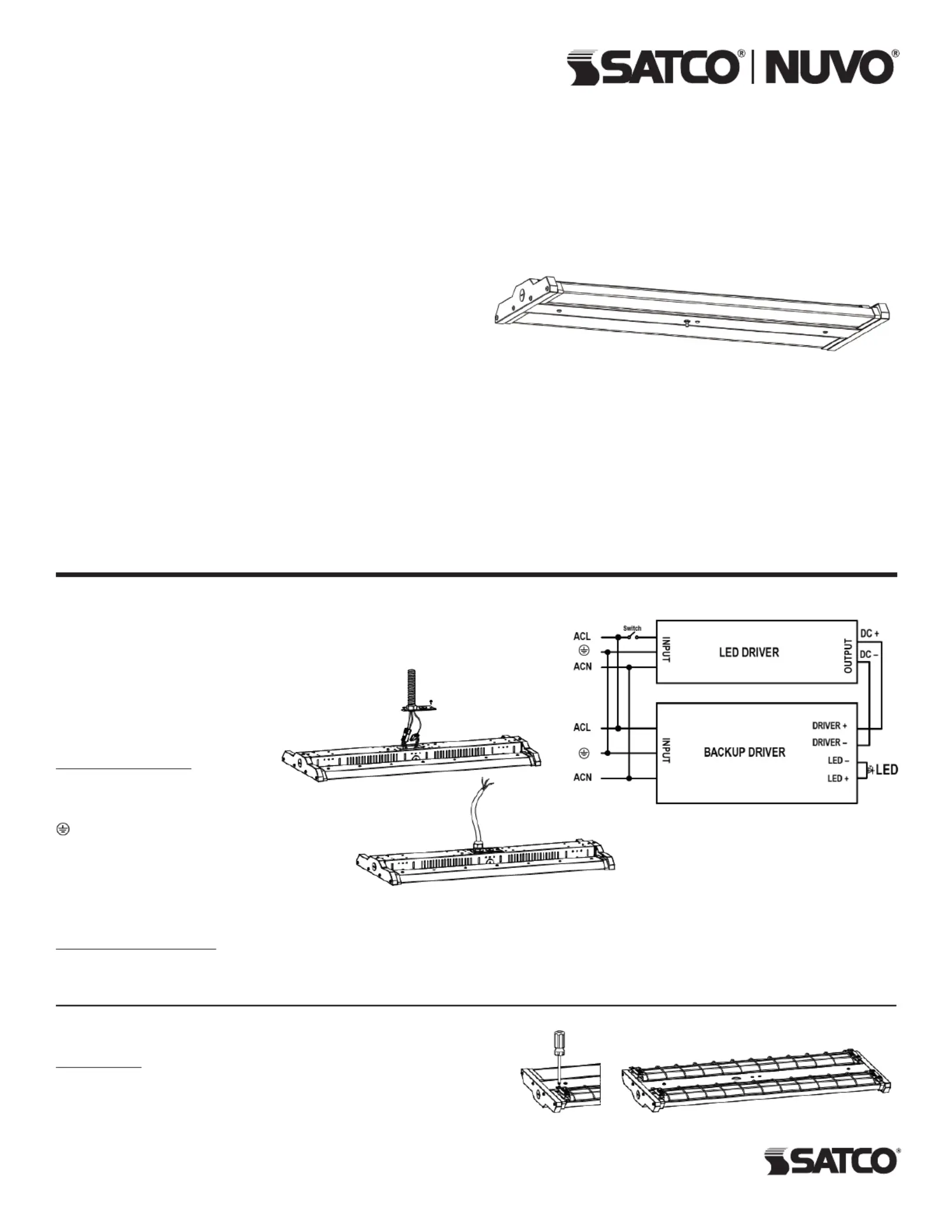

ADJUSTABLE LED HIGH BAY

Models: 65-641R1, 65-642R1, 65-643R1, 65-644R1,

65-645R1, 65-646R1, 65-647R1, 65-648R1

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xuture. Retain for future reference.

© Copyright 2022 Satco Products, Inc. 3/22 v1.2

1. Conduit connection

BACKUP WIRING DIAGRAM

Figure 1

EXTRA ACCESSORY OPTIONS & ASSEMBLY

Wire Guard

STEP 1: Snap the wire guards into the plug of the light-emitting

modules and tighten them with screws (Figure 1).

WIRING DIAGRAMS & INSTRUCTIONS

Three dimming functions are available:

1. Constant current can be achieved by 0-10VDC dimming

2. PWM signal dimming

3. Variation of resistance unit dimming

Two wiring methods:

Wiring Instruction

L : Black

N : White

:

Green/Yellow

DIM+

DIM–

NOTE: For the wire color of DIM+ and DIM–,

please check the light label.
