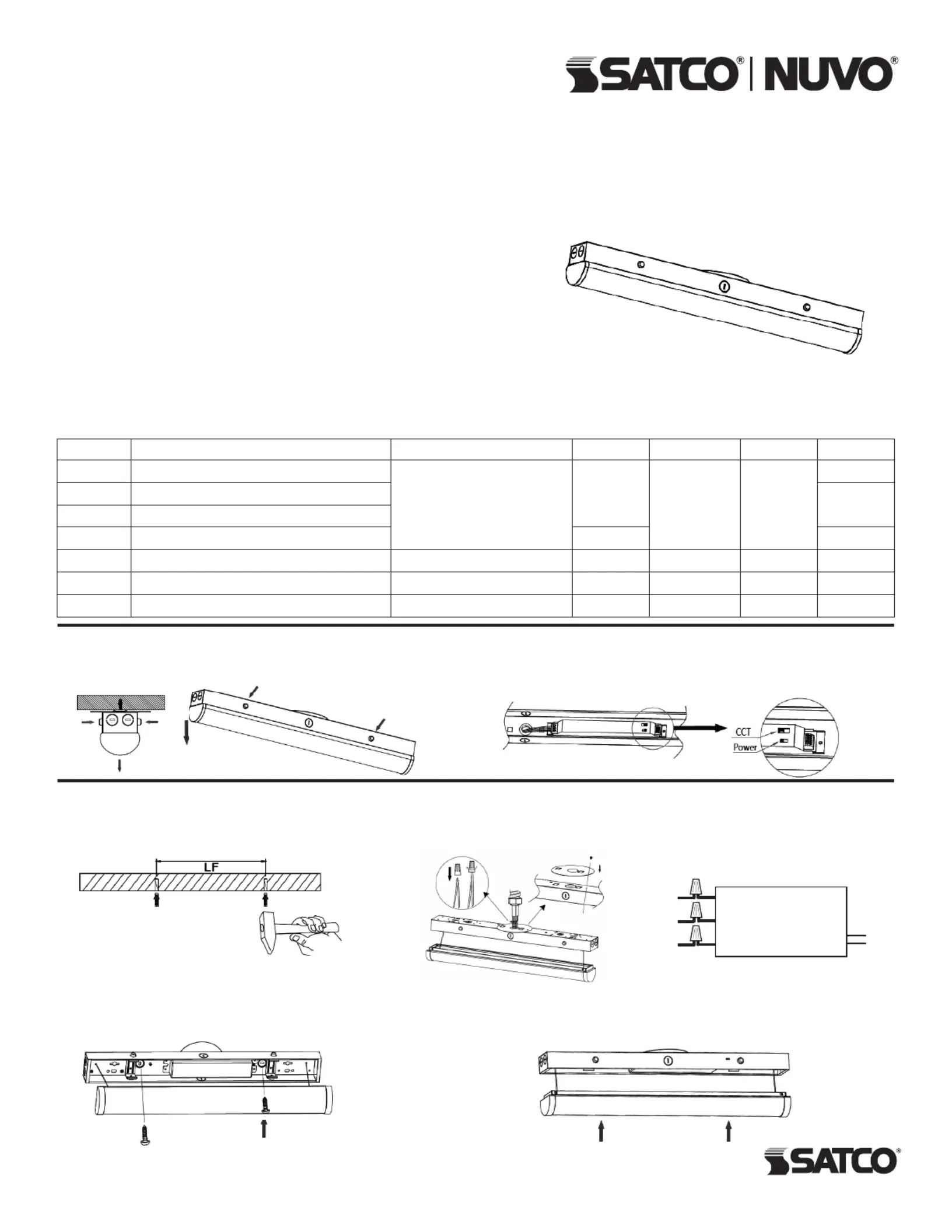

LED STRIP LIGHTS

Models: 65/700, 65/701, 65/702, 65/703, 65/706, 65/707, 65/708

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2021 Satco Products, Inc. 6/21

INSTALLATION – Surface Mount

CCT INSTRUCTIONS

STEP 1: Install appropriate anchors into the ceiling or wall.

STEP 3: Secure xture backplate on to the wall or ceiling

using appropriate hardware.

STEP 2: Turn OFF the power and connect wires by using

wire nuts. See wiring diagram below.

STEP 4: Press the cover upward and lock it with xture

springs. Installation of xture is compete.

Item #DescriptionFinish/DetailsVoltsTemperatureCCTWatts

65/7002' LINEAR STRIP WHITE FINISH 100-277V

WHITE

100~277V

-20°C to 60°C

3500K

4000K

5000K

20W

65/7014' LINEAR STRIP WHITE FINISH 100-277V

30W

40W

50W

65/7028' LINEAR STRIP WHITE FINISH 100-277V

65/7038' LINEAR STRIP WHITE FINISH 120-347V120~347V82W

65/7062' & 4' SUSPENSION KIT59" SUSPENSION LENGTH––––

65/7078' SUSPENSION KIT59" SUSPENSION LENGTH––––

65/708ADD ON EM8W/1440LM/90 Min. Run Time––––

WARNING: Risk of Fire or Electric Shock

• To reduce the risk of re, electrical shock or injury to persons; read

and follow all warnings and installation instructions before installing.

• All installation should be performed by a qualied electrician.

• To avoid electric shock, ensure power is turned off before installation.

• All wiring must be installed in accordance with all Electrical Codes.

• To prevent product malfunction and/or electrical shock, this product

must be properly grounded.

• Suitable for damp locations.

• Suitable for non-insulated surface and frame. DO NOT cover xture

with insulation liner or similar material.

• DO NOT install xture on unstable or easily breakable surface.

• DO NOT exert force on the surface of the xture.

65/700 2' (0.610m) W

65/701 4' (1.2m) W

65/702 8' (2.4m) W

65/703 8' (2.4m) W

STEP 1: Press the Spring buttons and remove xture cover. Position desired CCT to 3500K, 4000K or 5000K STEP 2:

as needed. After selecting CCT, secure cover.

4' LF = 36 1/4"

8' LF = 83 3/8"

BLACK

WHITE

GREEN

LINE

NEUTRAL

GROUND

Wiring Diagram

Fixture

PURPLE

GREY

DIM +

DIM –
