INSTALLATION SHEET
LP18537
LED Linear Pendant
START FROM HERE
19054 28th Avenue Surrey, BC Canada V3Z 6M3
T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196
W: kuzcolighting.com
Please Note:
• This Kuzco LED fixture comes with pre-wired LED module(s)
• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary
contact with the module could cause permanent damage
• For dimming, an ELV (Electronic Low Voltage) or TRIAC type of dimmer is required
• 120V input
• Make sure is POWERCOMPLETELY OFF at the fuse box
• Have your fixture installed by a qualified licensed electrician
• Prepare everything in a clear area
• Wear gloves at all times during this installation
• Read instructions carefully before you start assembly
• Keep this installation sheet for future reference
Technical Support: 1-855-855-8926
20211013
1a.
1b.
4a.
1c.
1e.
2a.
2b.
2d.
3a.
1.
2.
3.
4.
5.
6.
7.

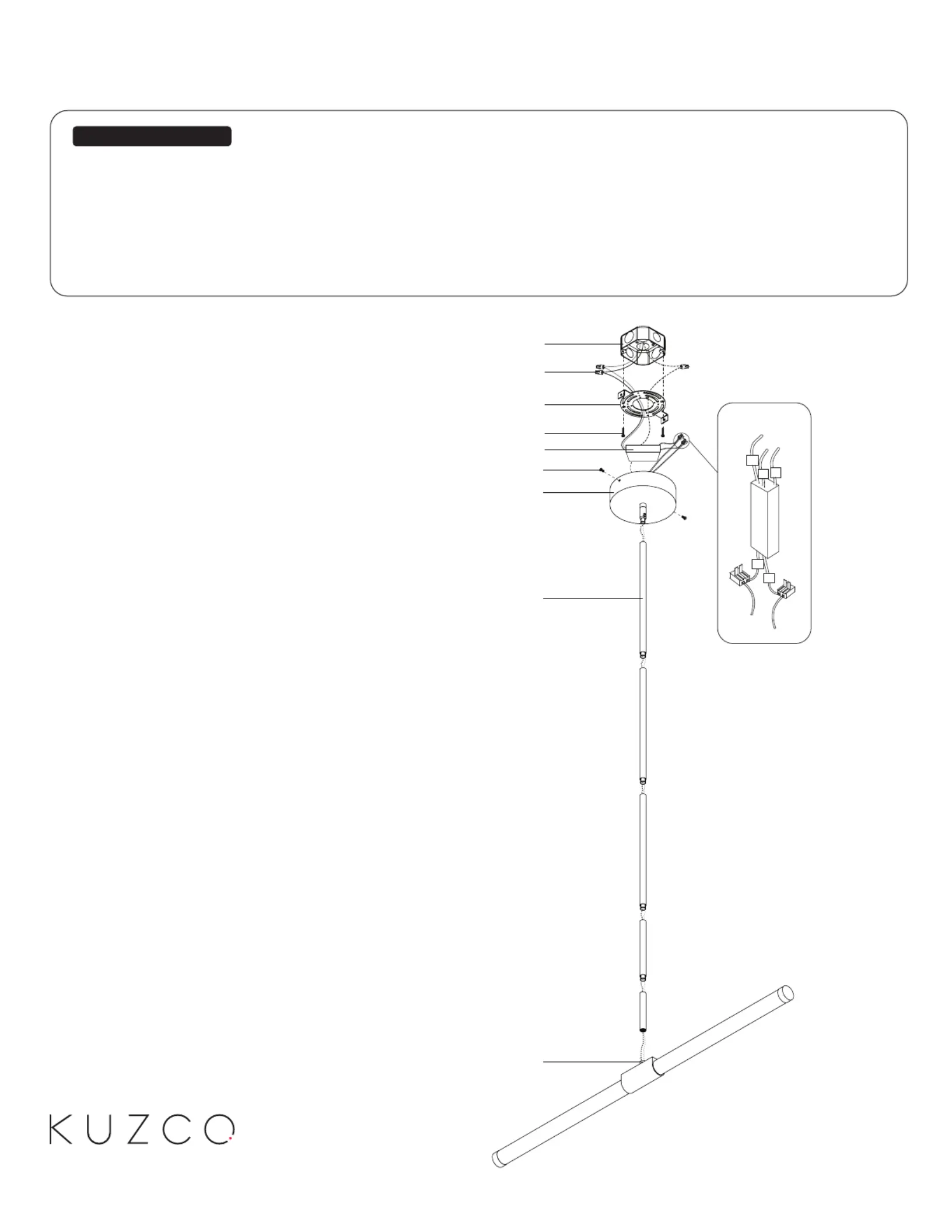

Remove fixture from its original package
Separate mounting plate from canopy by (1c)(2a)
removing canopy screws (2b)
Attach mounting plate to electrical junction box (1c)
(1a)(1e) using junction box screws provided in
hardware package
Determine hanging height of fixture by securing rods
(2d) (2a) to canopy and fixture bodyafter feeding (3a)
fixture wires (LED+ and LED-) through rods
Make proper electrical connections between LED and
DC driver, LED- Negative, LED+ Positive using quick
connector provided (See Illustation 1 and refer to
diagram on driver)
Make proper electrical connections ( to “L”, blackhot
whiteground“GND”) to “N”, neutral to with wire
nuts (1b) provided in hardware package and then
place driver inside canopy (4a)(2a)
Attach canopy to mounting plate with canopy (2a)(1c)
screws (2b)
DC
Driver
N
L
G
-
+
Illustration 1
Low Voltage
