1

WARNING: Risk of Fire or Electric Shock

• To reduce the risk of re, electrical shock or injury to persons; read and

follow all warnings and installation instructions before installing.

• All installation should be performed by a qualied electrician.

• To avoid electric shock, ensure power is turned off before installation or

inspection. All wiring must be installed in accordance with Electrical Code

and local electrical code.

• To prevent re, this xture is rated for use in 100-277V, 50-60Hz protected

circuit and minimum 75°C rated supply conductor.

• To prevent product malfunction and/or electrical shock, this product must

be properly grounded.

• To avoid damage and/or product malfunction, do not modify the xture

or replace accessories without conrming with the supplier rst.

• To prevent wiring damage or abrasion, do not expose wiring to edges of

sheet metal or other sharp objects.

• Suitable for indoor/outdoor applications.

IMPORTANT: This product must be installed in accordance with the

applicable installation code by a person familiar with the construction and

operation of the product and the hazards involved.

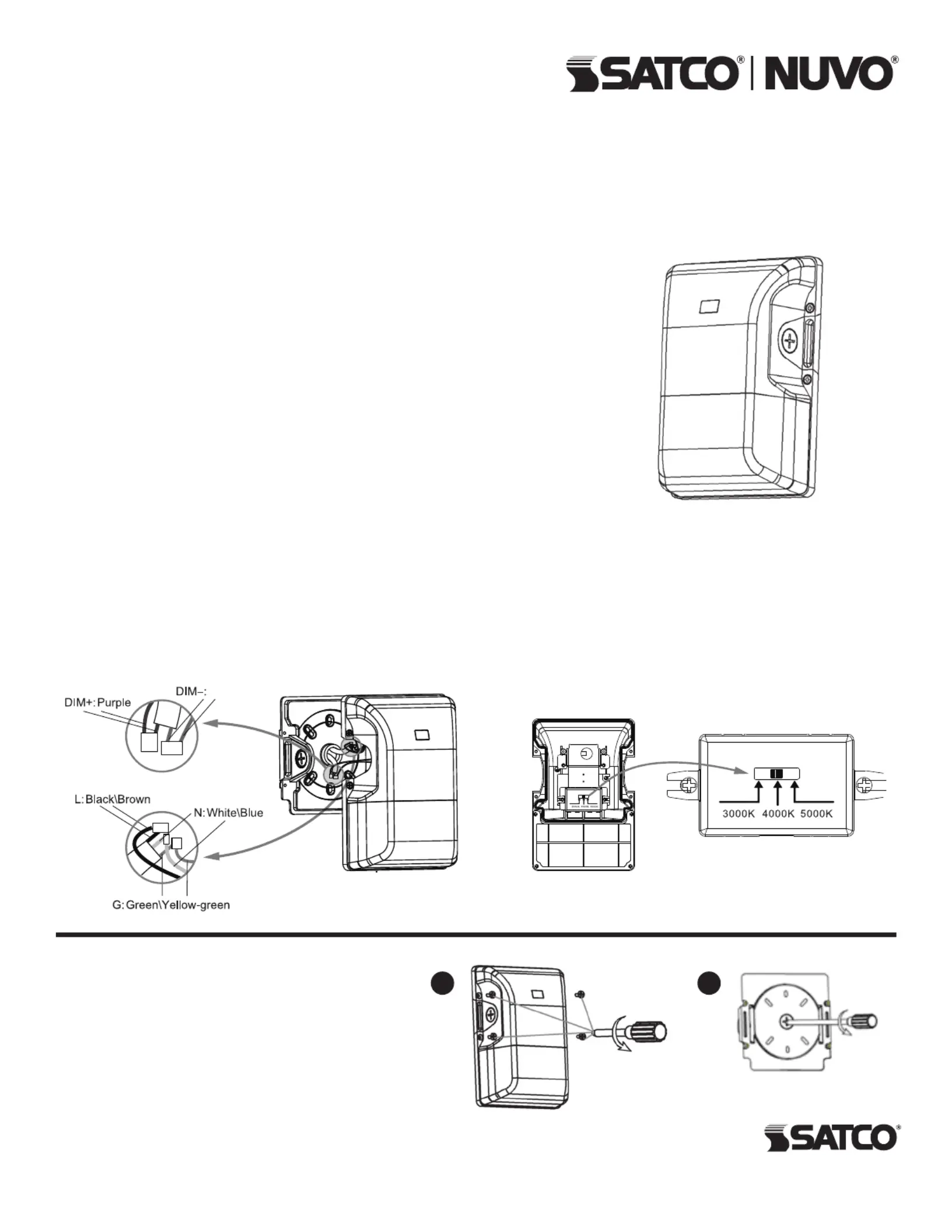

LED SMALL WALL PACK

Models: 65-747, 65-748, 65-749

Satco Products, Inc.

Brentwood, NY 11717

GENERAL INSTALLATION NOTES:

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2022 Satco Products, Inc. 3/22 v1.1

1. Be sure all connections are protected.2. Be sure to set the desired color temperature inside

the xture before re-installing the bottom plate.

NOTE: To bypass photocell, unplug photocell from

the driver board.

Gray\Violet

STEP 1: Turn off power before installation,

then loosen the 4 screws on the xture and

remove the bottom plate.

STEP 2: Remove the 1/2 end cap.

INSTALLATION: A

12

Dimensions

147mmW x 218mmH x 78mmD
