INSTALLATION SHEET
EW17611
LED Exterior Wall Sconce
START FROM HERE
19054 28th Avenue Surrey, BC Canada V3Z 6M3
T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196
W: kuzcolighting.com
20200414
• Make sure is POWERCOMPLETELY OFF at the fuse box
• Have your fixture installed by a qualified licensed electrician
• Prepare everything in a clear area
• Wear gloves at all times during this installation
• Read instructions carefully before you start assembly
• Keep this installation sheet for future reference
Technical Support: 1-855-855-8926
Please Note:
• This Kuzco LED fixture comes with pre-wired LED module(s)
• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary
contact with the module could cause permanent damage
• Use ELV (Electronic Low Voltage) type of dimmer for dimming application
• 120V input
To prevent moisture from entering the electrical junction
box (1a) and causing a short, seal around the top and side
perimeter between the fixture and the wall surface with
weather resistant caulking . The space at (Illustration 1)
the bottom should be left un-caulked to prevent moisture
build up
1.
2.
3.
4.
5.
6.
Remove fixture from its original packaging
Separate the mounting platefrom the canopy by (1c) (2a)
removing the set screws with allen key(2f)
Attach mounting plate to electrical junction box (1c)(1a)
using junction box screws provided in hardware package(1e)
Make proper electrical connections ( to “L”, blackhot
whiteground“GND”)(1b) to “N”, neutral to with wire nuts
provided in hardware package
Secure canopy to mounting plate with set screws (2a)(1c)
(2f) and allen key

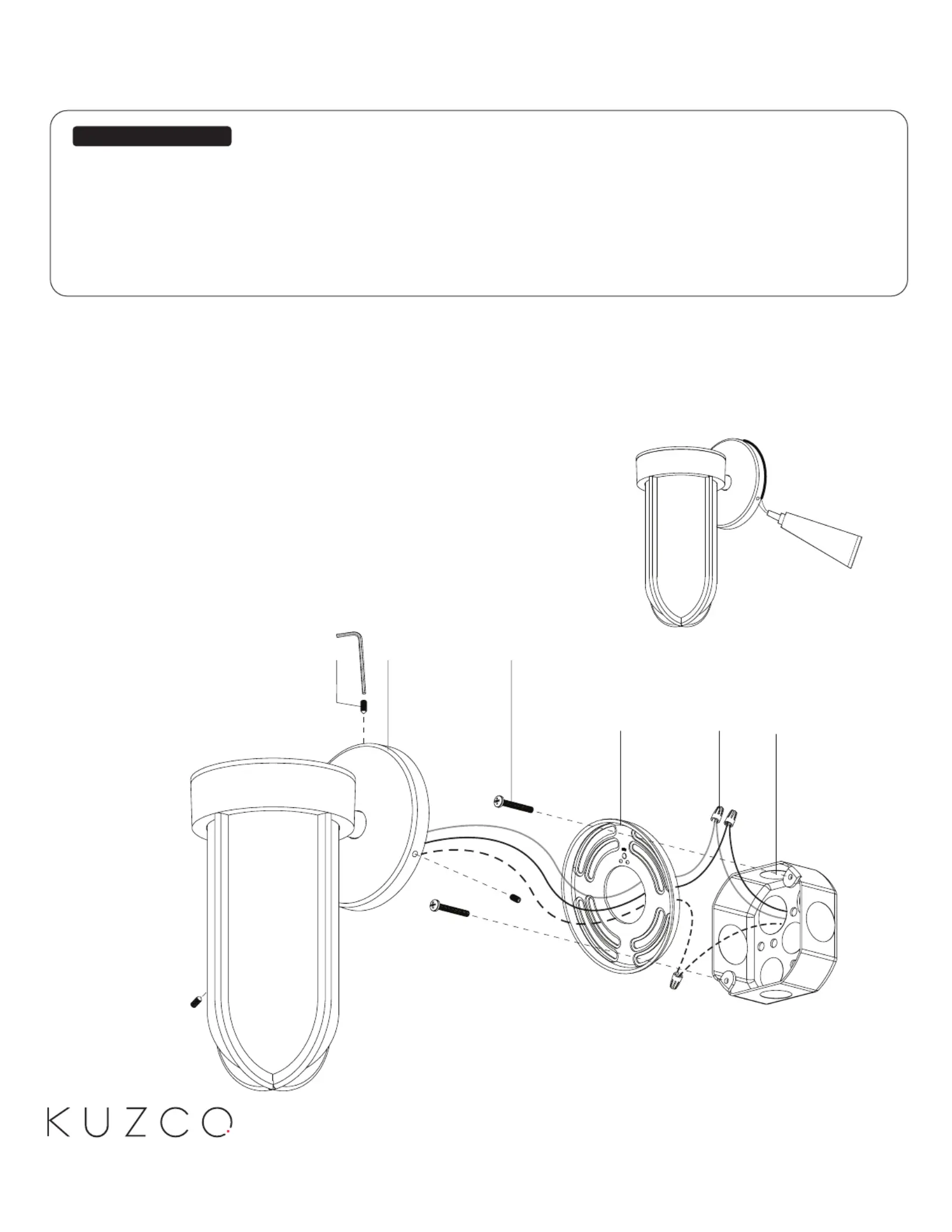

Illustration 1
caulking
2a.2f.1e.
1c.
1b.
1a.
