Remove the canopy from it’s original packaging
Remove the mounting plate from within the canopy by (1c)(2a)
removing the decorative nuts (2c)
Attach the mounting plate to the electrical junction box (1c) (1a) using
the junction box screws provided in the hardware package(1e)
Make sure to reinforce the wood behind the drywall and secure
mounting plate to mounting surface with wooden screws (1c)(1g)
and plastic anchors for extra support.(1f)
Wire strain relief (for thicker wire) (see illustration 1): Remove
wire grippersPull wire through nut , washer , threaded (2g). (3a)(3b)
cylinder (3c) and wire strain relief (3d). Secure threaded cylinder
(3c)(2a)(3b) to canopy with nut and washer (3a). Thread wire
strain relief to threaded cylinder . Slide wire to desired (3d)(3c)
length by pushing and pulling and secure with set screw (3e)
5.
To change fixture height, push and hold wire gripper , slide wire (2g)
to desired length and then release wire gripper to secure (2g)
7.
Make proper electrical connections ( to toblackhot white“L”,
neutralground“GND”)(1b) “N”, to with wire nuts provided in
hardware package
8.
Align and insert mounting plate screws through holes on (1d)
canopy (2a), secure with decorative nuts (2c)
19054 28th Avenue Surrey, BC Canada V3Z 6M3
T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196
W: kuzcolighting.com
20210429
1a.
1f.
3a.
3b.
3c.
3d.
3e.

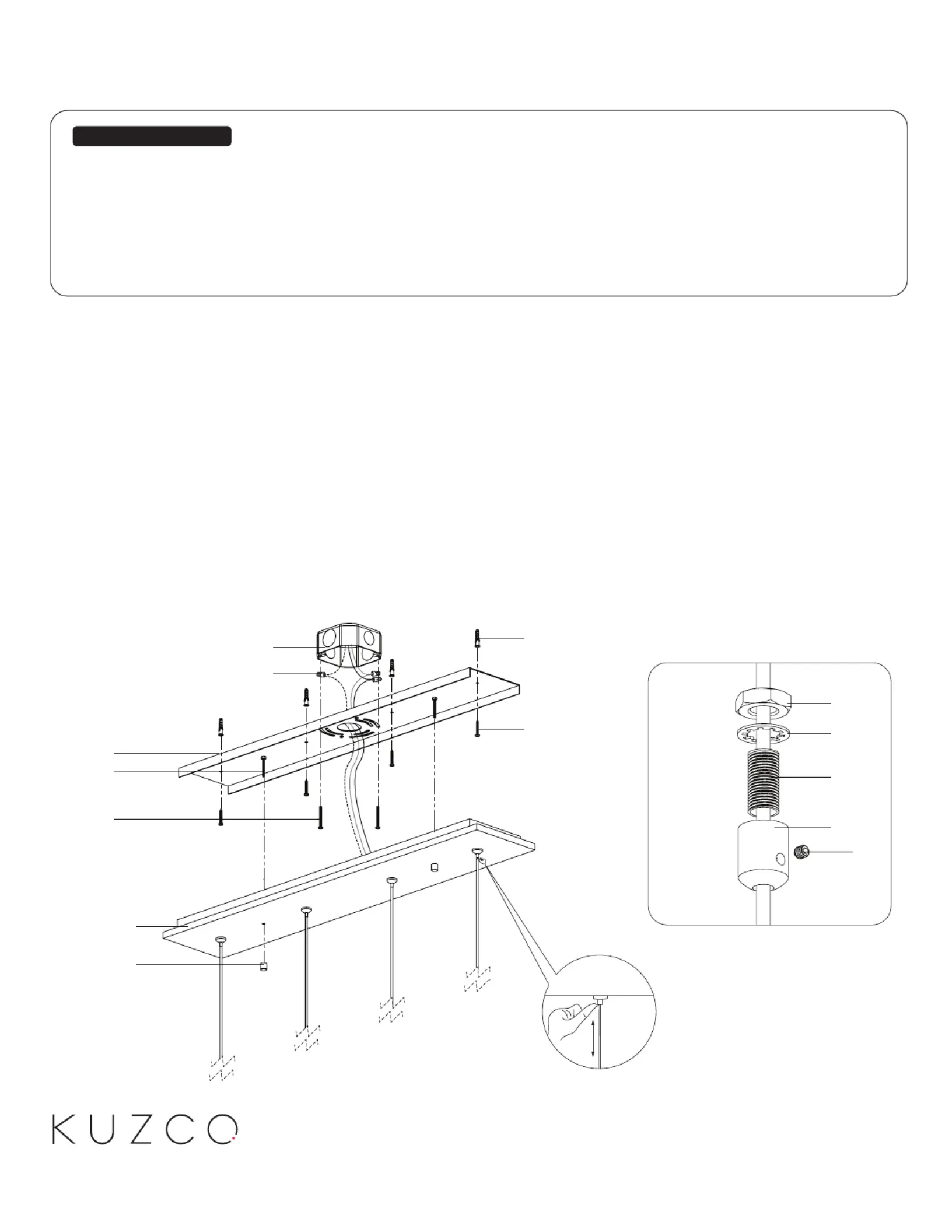

Illustration 1
(Wire strain relief for thicker wires)
1g.
1b.
1c.
1d.
2a.
2c.
1e.
2g.
INSTALLATION SHEET
CNP04AC
LED Ceiling Canopy
START FROM HERE
• Make sure is POWERCOMPLETELY OFF at the fuse box
• Have your fixture installed by a qualified licensed electrician
• Prepare everything in a clear area
• Wear gloves at all time during this installation
• Read instructions carefully before you start assembly
• Keep this installation sheet for future reference
Technical Support: 1-855-855-8926
