INSTALLATION SHEET

PD7920

Ceiling LED Pendant

START FROM HERE

1.

2.

3.

4.

5.

6.

7.

8.

9.

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20201208

Please Note:

• This Kuzco LED fixture comes with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• For dimming, an ELV (Electronic Low Voltage) type of dimmer is required

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all times during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

Remove Pendant Conversion kit from packaging

Separate mounting plate from canopy by (1c)(2a)

removing decorative nuts (2b)

Attach mounting plate to electrical junction (1c)

box (1a) using screws (1d) provided in the

hardware package

Remove FM7920 fixture from original packaging

Cut off ground wire from FM7920, pull wires (3d)

through rod spacer and back cover (3a) (4a) (See

Illustration 1)

Select desired hanging height by feeding wires

through rod and canopy (2c)(2a)

Make proper electrical connections (black to hot

“L”, white to neutral “N”, ground to “GND”) with

wire nuts (1b)

Attach canopy to mounting plate , secure (2a)(1c)

with decorative nuts (2b)

It i nsall t shehadecover(2e)byplacingt onto the

mealpanand t on the underside of the fixture (2d)

turn clockwise until secure (donooverighen) t tt

1a.

1b.

1c.

1d.

2a.

2b.

2c.

2d.

3a.

4a.

2e.

3a.

4a.

3d.

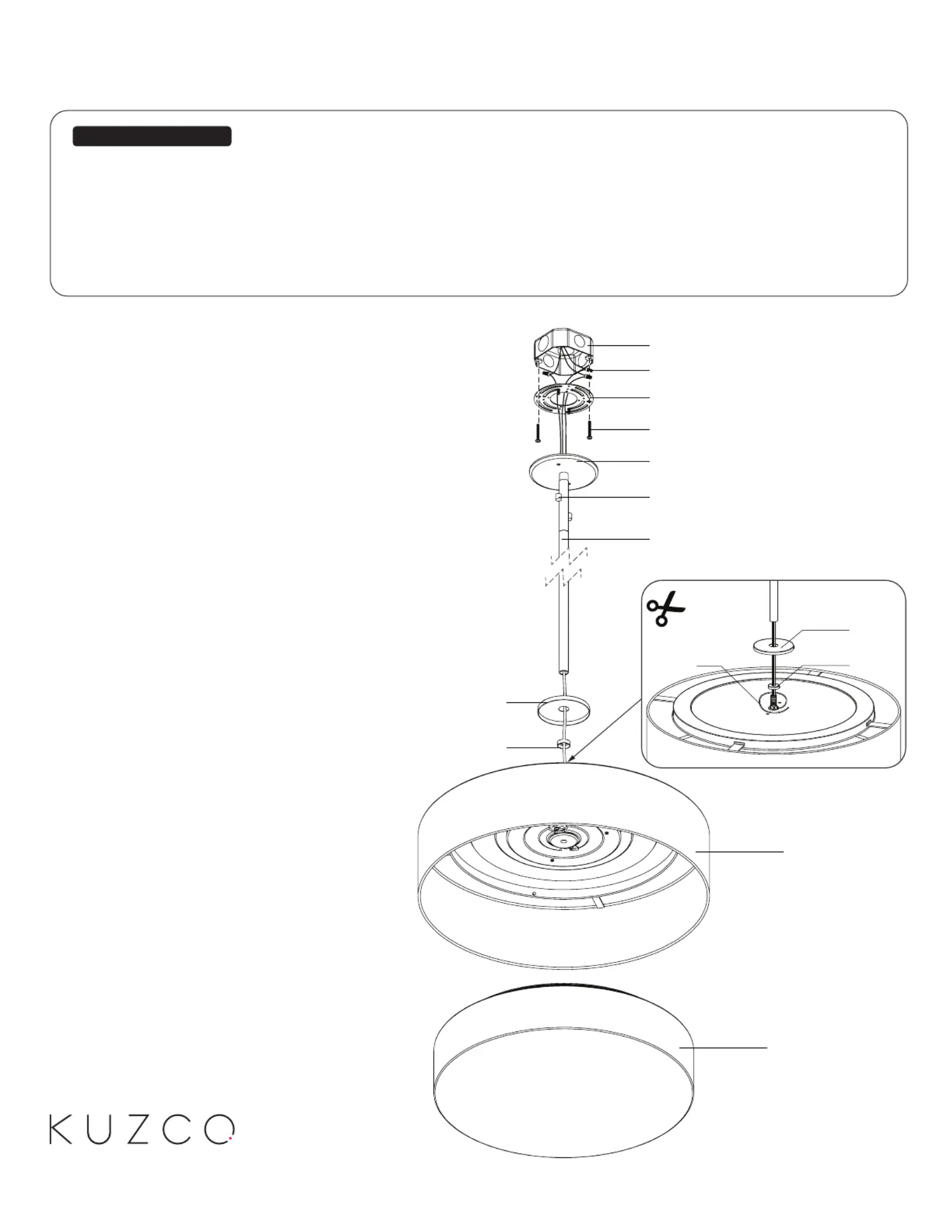

Illustration 1

Cut Off Ground

Wire Here
