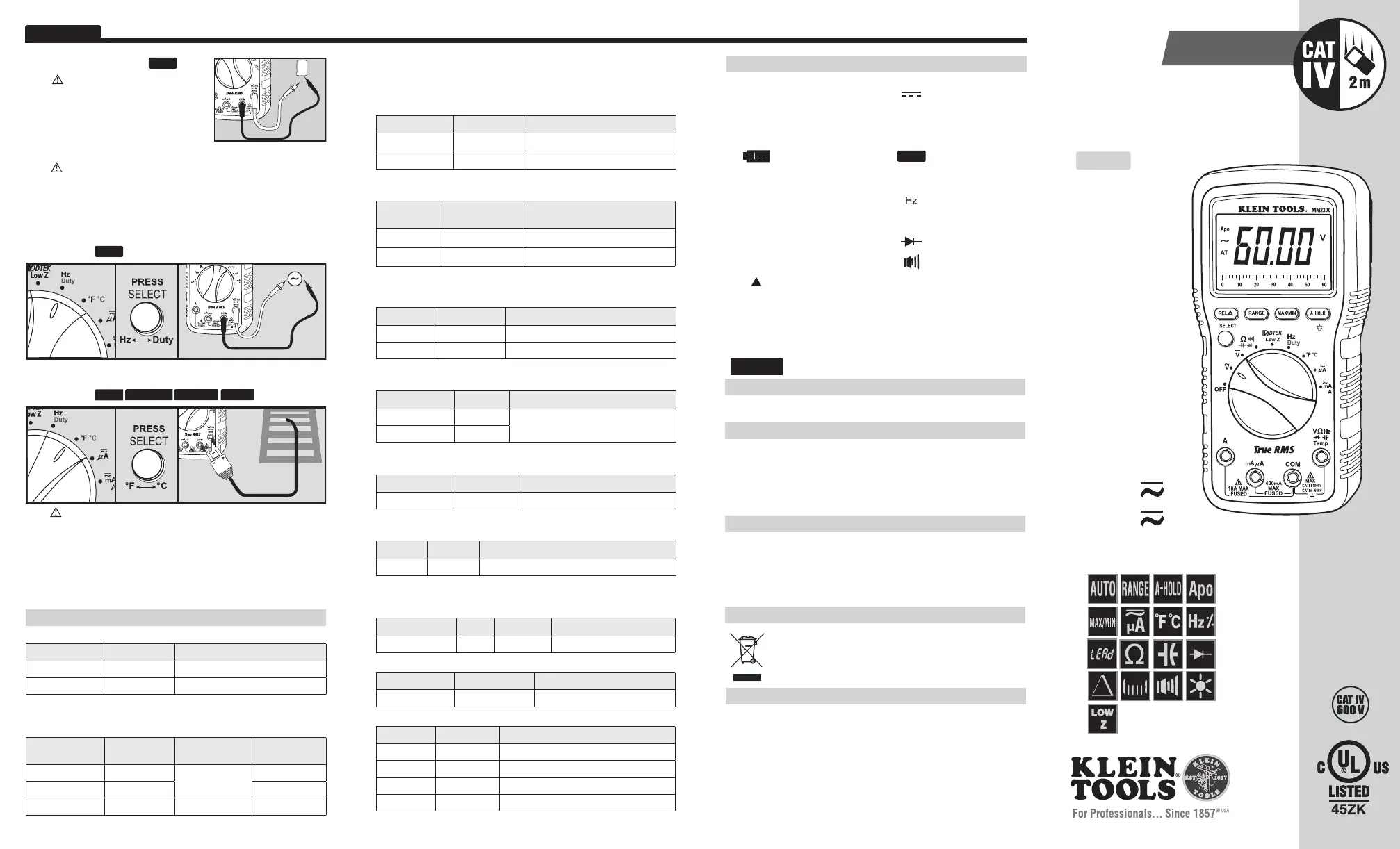

CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street

Lincolnshire, IL 60069

1-877-775-5346

[email protected]

www.kleintools.com

ENGLISH

Instruction Manual

ENGLISH

• TRMS

• BACKLIGHT

• BAR GRAPH

• LEAD HOLDER

• MAX / MIN

• 3-5/6 DIGIT

6000 COUNT LCD

• AUTO / MANUAL

RANGE

• AUTO HOLD

ELECTRICAL SPECIFICATIONS

DC Voltage Measurement

RangeResolutionAccuracy

600mV

˜

600V0.1mV

˜

0.1V± (0.5% + 4 digits)

1000V1V± (0.8% + 10 digits)

Overload Protection: 1000V Input Impedance (Nominal): 10MΩ, <100pF

Input Impedance (Low Z): 3kΩ, <200pF, up to 600V RMS

AC Voltage Measurement

RangeResolution

Accuracy

40Hz ~ 400Hz

Accuracy

400Hz ~ 5kHz

600mV0.1mV

± (0.75% + 5 digits)

± (2.0% +3 digits)

6V ~ 600V1mV ~ 0.1V ± (2.0% +3 digits)

1000V1V± (0.75% + 8 digits)± (2.0% +3 digits)*

continued on next page.

Overload Protection: 1000V RMS Input Impedance (Nominal): 10MΩ, <100pF

Input Impedance (Low Z): 3kΩ, <200pF, up to 600V RMS

Frequency Response: 40 to 5kHz Response: True RMS

*Accuracy for 400Hz ~ 1kHz range only.

DC Current Measurement

RangeResolutionAccuracy

600μA ~ 400mA0.1μA ~ 0.1mA± (1.0% + 5 digits)

6A ~ 10A1mA ~ 10mA± (1.5% + 5 digits)

Overload Protection: µAmA: F440mA/1000V fuse / A Input: F11A/1000V fuse

AC Current Measurement

RangeResolution

Accuracy

40Hz ~ 2kHz

600μA ~ 400mA0.1μA ~ 0.1mA± (1.2% + 5 digits)

6A ~ 10A1mA ~ 10mA± (1.8% + 5 digits)

Overload Protection: µAmA: F440mA/1000V fuse / A Input: F11A/1000V fuse

Frequency: 40 to 2kHz Response: True RMS

Resistance Measurement

RangeResolutionAccuracy

600Ω

˜

6MΩ0.1Ω

˜

0.001MΩ ± (1.0% + 5 digits)

60MΩ0.01MΩ± (1.5% + 10 digits)

Overload Protection: 600V RMS

Capacitance Measurement

RangeResolutionAccuracy

60nF0.01nF

± (3.5% + 6 digits)

600nF ~ 6000μF0.1nF ~ 1μF

Overload Protection: 600V RMS

Frequency Measurement

RangeResolutionAccuracy

99.99Hz

˜

499.9kHz0.01Hz

˜

0.1kHz± (0.1% + 3 digits)

Overload Protection: 600V RMS Sensitivity: > 0.7V RMS

Duty Cycle Measurement

RangeResolutionAccuracy

0.1

˜

99.9%0.1%± (0.2% per kHz + 0.1% + 5 digits)

Overload Protection: 600V RMS Sensitivity: < 50V

Frequency Range: <10kHz

Diode Test

Overload ProtectionRangeTest CurrentOpen Circuit Voltage

600V RMS6.0VAppx. 0.25mA

<

1.8V DC (typ.)

Continuity Test

Overload ProtectionOpen Circuit VoltageThreshold (Appx.)

600V RMS

<

0.44V<40Ω

Temperature Measurement

RangeResolutionAccuracy

-58 ~ 600°F0.1°F± (1.0% + 5.4°F)

-50 ~ 600°C0.1°C± (1.0% + 3.0°C)

600 ~ 1832°F1°F± (1.0% + 5.4°F)

600 ~ 1000°C1°C± (1.0% + 3.0°C)

Overload Protection: 600V RMS Thermocouple Accuracy: Not specifi ed

Specifi cations subject to change

Do Not apply voltage to thermocouple.

•-58° to 1832°F (-50° to 1000°C)

8. Temperature:

Features:

Testing Fuse:

•When selecting uA or mA/A functions the meter will indicate

“LEAd” if the test leads are not properly connected to the meter.

•Note: This message remaining on the screen after properly

connecting the test leads is an indication that the fuse is open.

Rev B 04/14 139716

7. Frequency (Hz) / Duty Cycle: <500kHz

Features:

HOLD

6. Low Impedance (Low Z): < 600V

DO NOT use (LOW Z) mode at voltages greater than 600V.

•Press SELECT to choose AC or DC Voltage.

•Use Low Impedance (LOW Z) mode to reduce ghost voltages

•See AC/DC Voltage instruction

Capacitance Features:

HOLD

Safely discharge capacitor before

measurement.

•Reading may take up to 60 seconds

for large capacitors.

SYMBOLS USED ON LCD

~

AC MeasurementDC Measurement

-

Negative DC Value

AT

Auto Range Active

O

.L.

Overload: Range Exceeded

Apo

Auto Power-Off Active

Low Battery

HOLD

Hold Active

MIN

Minimum Reading

M

AX

Maximum Reading

%

Duty Cycle ModeFrequency Mode

V

Voltage Measurement

A

Current in Amps

Ω

Resistance in OhmsDiode Test

F

Capacitance in FaradsContinuity Test

Relative / Zero Mode

n

Nano 10

-9

µ

Micro 10

-6

m

Milli 10

-3

k

Kilo 10

3

M

Mega 10

6

°F

Degrees Fahrenheit

°C

Degrees Celsius

A-HOLD

Auto-Hold Active

LOW

Z

Low Impedance

AUTO HOLD

MAX/MINREL

HOLD

WARRANTY

www.kleintools.com/warranty

CLEANING

Clean the instrument by using a damp cloth. Do not use abrasive cleaners

or solvents.

Take care to keep the sensor lens clean at all times. Clean the lens using a soft

cloth or cotton swab with water or rubbing alcohol only, and allow the lens to

dry before use.

STORAGE

Remove the batteries when instrument is not in use for a prolonged period of

time. Do not expose to high temperatures or humidity. After a period of storage

in extreme conditions exceeding the limits mentioned in the Specifi cations

section, allow the instrument to return to normal operating conditions before

using it.

DISPOSAL / RECYCLE

Do not place equipment and its accessories in the trash. Items

must be properly disposed of in accordance with local regulations.

1000V

10A

Dwg Name:MM2300-139716ART Dwg No:139716

ECO No:016671Pkg Dwg Ref:1650Rev: B

Color Reference:CEN-PACK-003-A

MM2300

MM2300-139716ART-Instructions.indd 1-45/5/14 11:41 AM
