CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street

Lincolnshire, IL 60069

www.kleintools.com

139569T Rev. 11/13 C

Dwg Name:MM100-139569TART Dwg No:139569T

ECO No:15144 Pkg Dwg Ref:1719Rev: C

Color Reference:N/A

ENGLISH

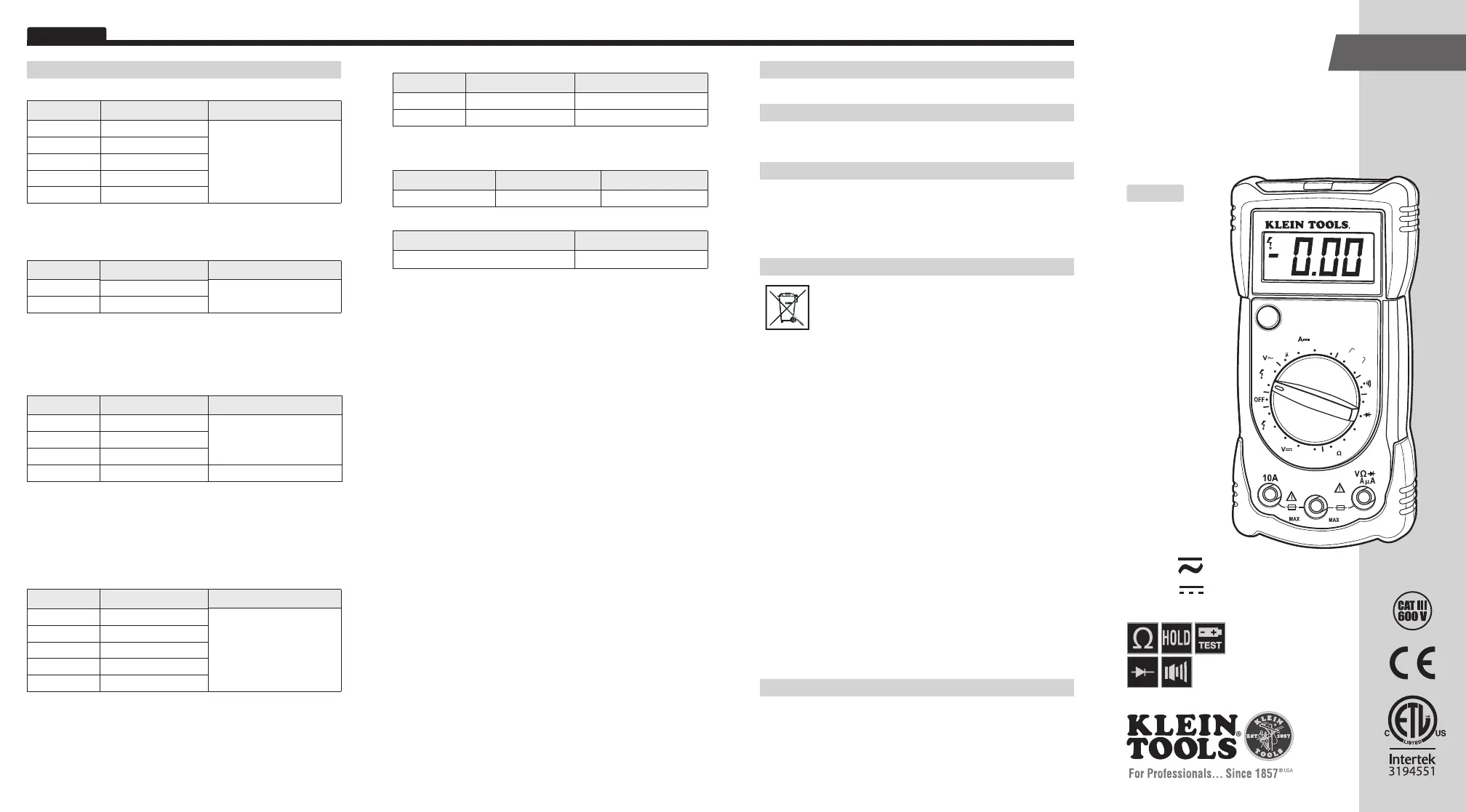

• 3-1/2 DIGIT

1999 COUNT

LCD

• DATA HOLD

• BATTERY TEST

• KICKSTAND

• LEAD HOLDER

COM

m

10A/500V

~

250mA/250V

~

600V MAX

CATIII

MM100

HOLD

200m

2

20m

200m

20

600

600

200

10A

9V

1.5V

200

2M

200k

20k

200

2k

200

BATT.

ENGLISH

ELECTRICAL SPECIFICATIONS

DC Voltage Measurement

RangeResolutionAccuracy

200mV0.1mV

± (0.5% + 3 digits)

2V0.001V

20V0.01V

200V0.1V

600V1V

Overload Protection: 600V RMS

Input Impedance (Nominal): > 1MΩ.

AC Voltage Measurement

RangeResolutionAccuracy

200V0.1V

± (1.2% + 5 digits)

600V1V

Overload Protection: 600V RMS

Frequency: 50 ~ 60Hz

Input Impedance (Nominal): > 1MΩ.

Response: Averaging

DC Current Measurement

RangeResolutionAccuracy

200μA0.1μA

± (1.0% + 3 digit)20mA0.01mA

200mA0.1mA

10A0.01A± (3.0% + 5 digits)

Overload Protection:

• mA Input: F250mA / 250V fast fuse

• 10A Input: F10A / 500V fast fuse

Max Input Current:

• mA Input: 200mA DC / AC RMS

• 10A Input: 10A DC / AC RMS

Resistance Measurement

RangeResolutionAccuracy

200Ω0.1Ω

± (0.8% + 4 digit)

2kΩ 0.001kΩ

20kΩ0.01kΩ

200kΩ0.1kΩ

2MΩ0.001MΩ

Overload Protection: 600V RMS

Battery Test

TypeResolutionTest Current

1.5V0.01VAppx. 15mA

9V0.01VAppx. 30mA

Overload Protection: F250mA / 250V fast fuse

Diode Test

Overload ProtectionTest CurrentOpen Circuit Voltage

600V RMSAppx. 1mAAppx. 3.0V DC

Continuity Test

Overload ProtectionOpen Circuit Voltage

600V RMSAppx. 3.0V

WARRANTY

www.kleintools.com/warranty

CLEANING

Turn instrument off and disconnect test leads. Clean the instrument by using

a damp cloth. Do not use abrasive cleaners or solvents.

STORAGE

Remove the batteries when instrument is not in use for a prolonged period of

time. Do not expose to high temperatures or humidity. After a period of storage

in extreme conditions exceeding the limits mentioned in the Specifications

section, allow the instrument to return to normal operating conditions before

using it.

DISPOSAL / RECYCLE



Caution: This symbol indicates that equipment and its accessories

shall be subject to a separate collection and correct disposal.

600V

10A

MM100

Instruction Manual

MM100 Instruction Manuals - MASTER.indd 1-411/20/2013 11:45:22 AM
