Pagina 1/22
User manuals in various languages (français, italiano, español, português, nederlands,
türk, polski) can be found via our product search on:
www.pce-instruments.com

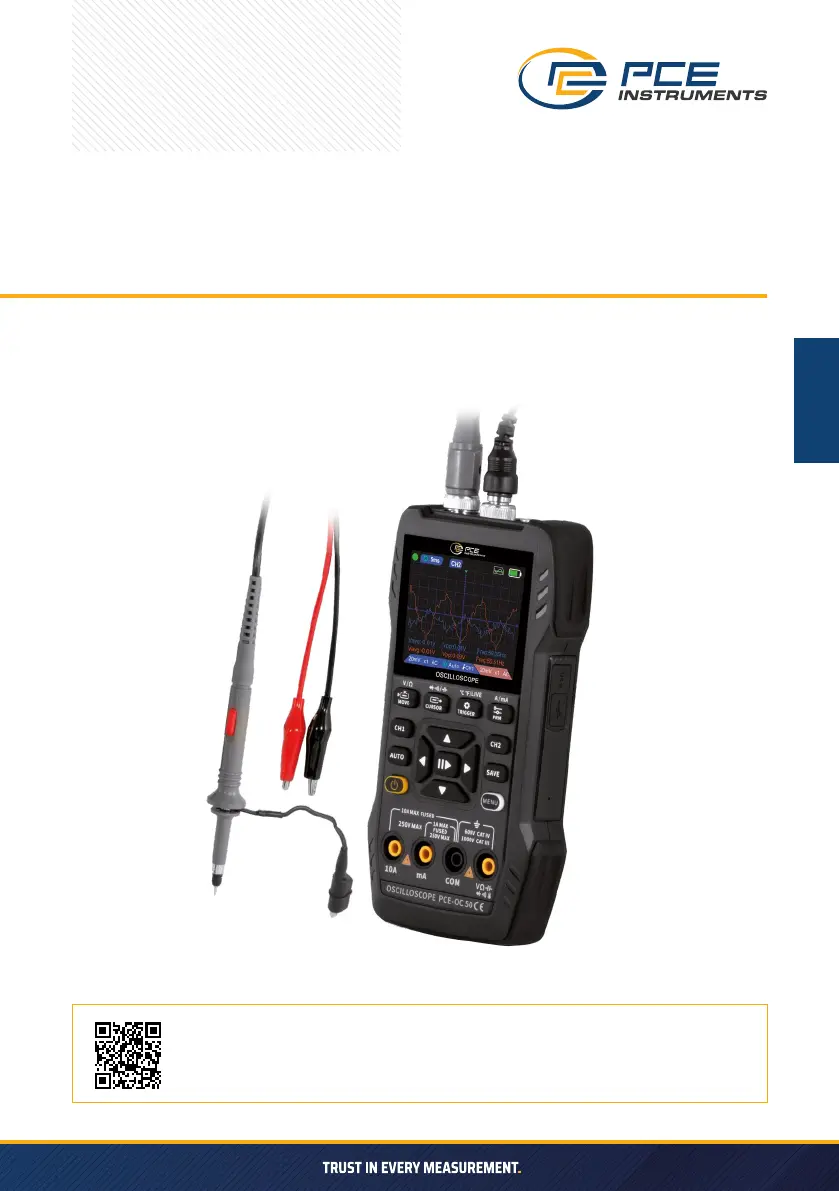

PCE-OC 50
USER MANUAL
ENGLISH
OSCILLOSCOPE
2
» This manual provides a detailed introductions to the product. Please read this manual carefully ensure
obtain the best state of the product.
» Do not use the instrument in ammable and explosive environments.
» Waste batteries and instruments cannot be disposed of together with household waste. Please dispose
of them in accordance with relevant national or local laws and regulations.
» If there are any quality issues with the device or if you have any questions about using the device,
please contact PCE Instruments.
PCE-OC 50 is a fully functional, highly practical, three in one dual channel digital oscilloscope designed for
the maintenance industry and development industry. This device is equipped with three main functions
of oscilloscope, multimeter, and signal generator. The Oscilloscope adopts FPGA+MCU+ADC hardware
architecture, with a sampling rate of 50MS/s, 10Mhz analog bandwidth, built-in high-voltage protection
module, maximum support measurement of peak voltage of ± 400V; Support for saving and viewing
waveform screenshots for analysis .The multimeter has a 4-digit 10000 point true eective value and
supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/o and
other measurement functions.
Whether used by professionals, factories, schools, enthusiasts, or families, it is an ideal multi-functional
instrument. Equipped with a built-in DDS function signal generator, it can output 7 types of function
signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude,
and duty cycle are adjustable. Using a 2.8 inch 320*240 resolution high-denition LCD display screen with
a built-in 3000mAh rechargeable lithium battery, the standby time can reach up to 6 H. Provide users with
more and stronger practical functions in a compact size, while also having good portability.
NOTICE TO USERS
PRODUCT INTRODUCTION
