Dual/window threshold and signal comparator
Overview

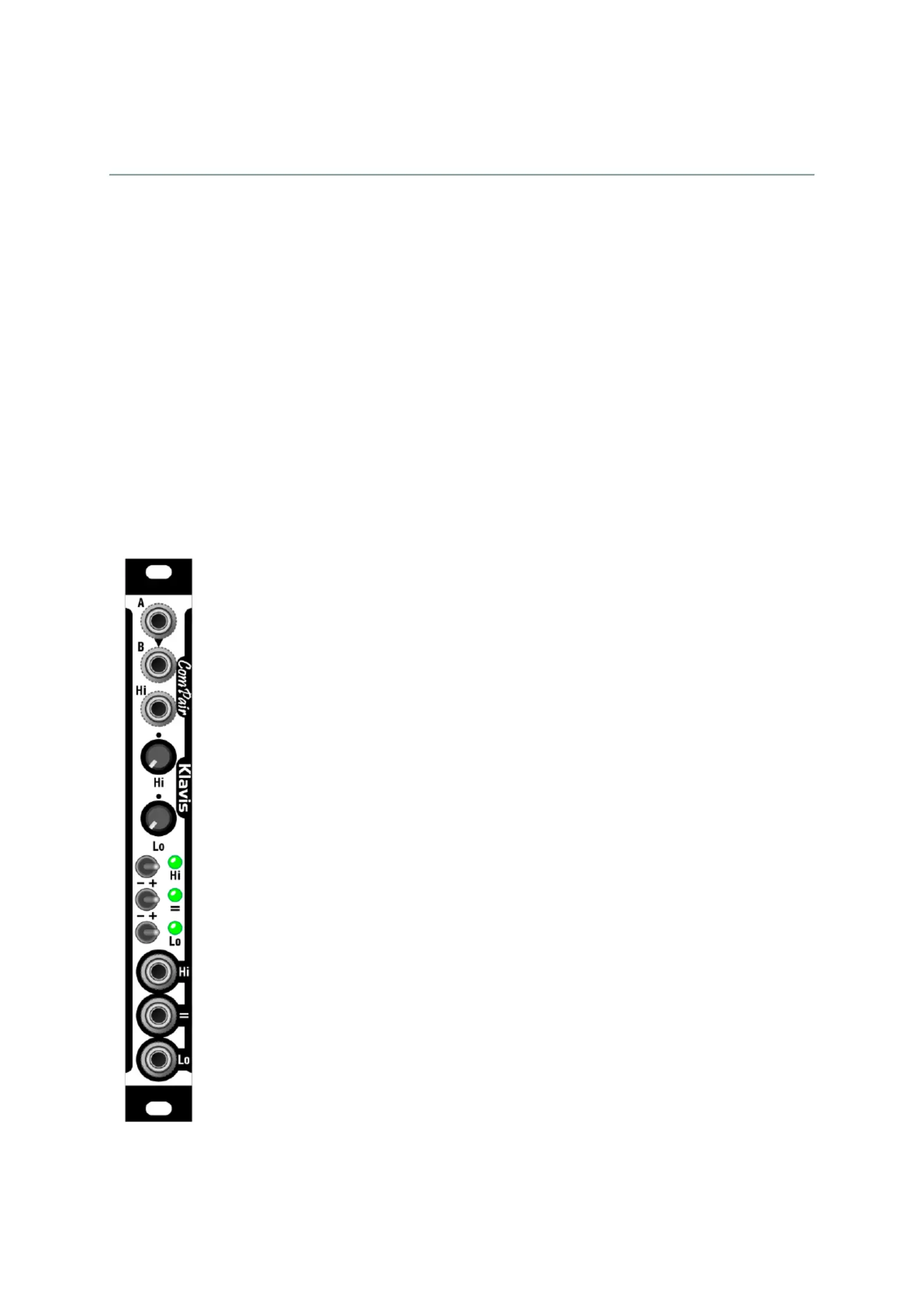

The ComPair is a highly versatile while compact module that can handle all kind of voltage
comparison duties in audio, modulation and logic purposes.
Two sections can be used independently or combined as a unified window comparator. Window
comparison goes beyond simple “higher/lower than”, and checks if a signal is within a specific
range.
Besides the usual voltage setting potentiometers, there is an offset input jack on the first section
to allow voltage against voltage comparisons, leading to a 3-signal comparison capability .
A main differentiating feature of the ComPair is the possibility to invert and mute each of the
comparison results on the 3 output jacks. Dedicated LEDs indicate the current status of each
output.
Features
•Different usage modes
1.As two independent threshold--signal comparators to
2.As a single window comparator
3.As a voltage--voltage comparator to
4.As a 3-signal voltage comparator
•For each comparator
oInput and output jacks
oThreshold potentiometer
oAbove/Below/Mute 3-position switch
oSignal active LED indication
•Window comparison has its dedicated switch and LED
•The first comparator has an additional input for signal--signal to
comparison with offset.
•All outputs allow direct Oring by simple shorting via a multiple
•Compact module
•Aluminium front panel
•Compact and skiff-friendly module
