A

B

F

G

E

C

D

For warranty information please visit: kichler.com/warranty

REV 9-JAN-2024

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

CAUTIONS

CAUTION – RISK OF SHOCK:

Disconnect Power at the main circuit breaker panel or main fusebox before starting and during

the installation.

WARNING:

1. This fixture is intended for installation in accordance with the National Electrical Code (NEC)

and all local code specifications. If you are not familiar with code requirements, installation by a

certified electrician is recommended. Failure to adhere to these codes and instructions may result

in serious injury and/or property damage and will void the warranty.

CLEANING:

• Always be certain that electric current is turned o before cleaning.

• Only a soft damp cloth should be used. Harsh cleaning products may damage the finish.

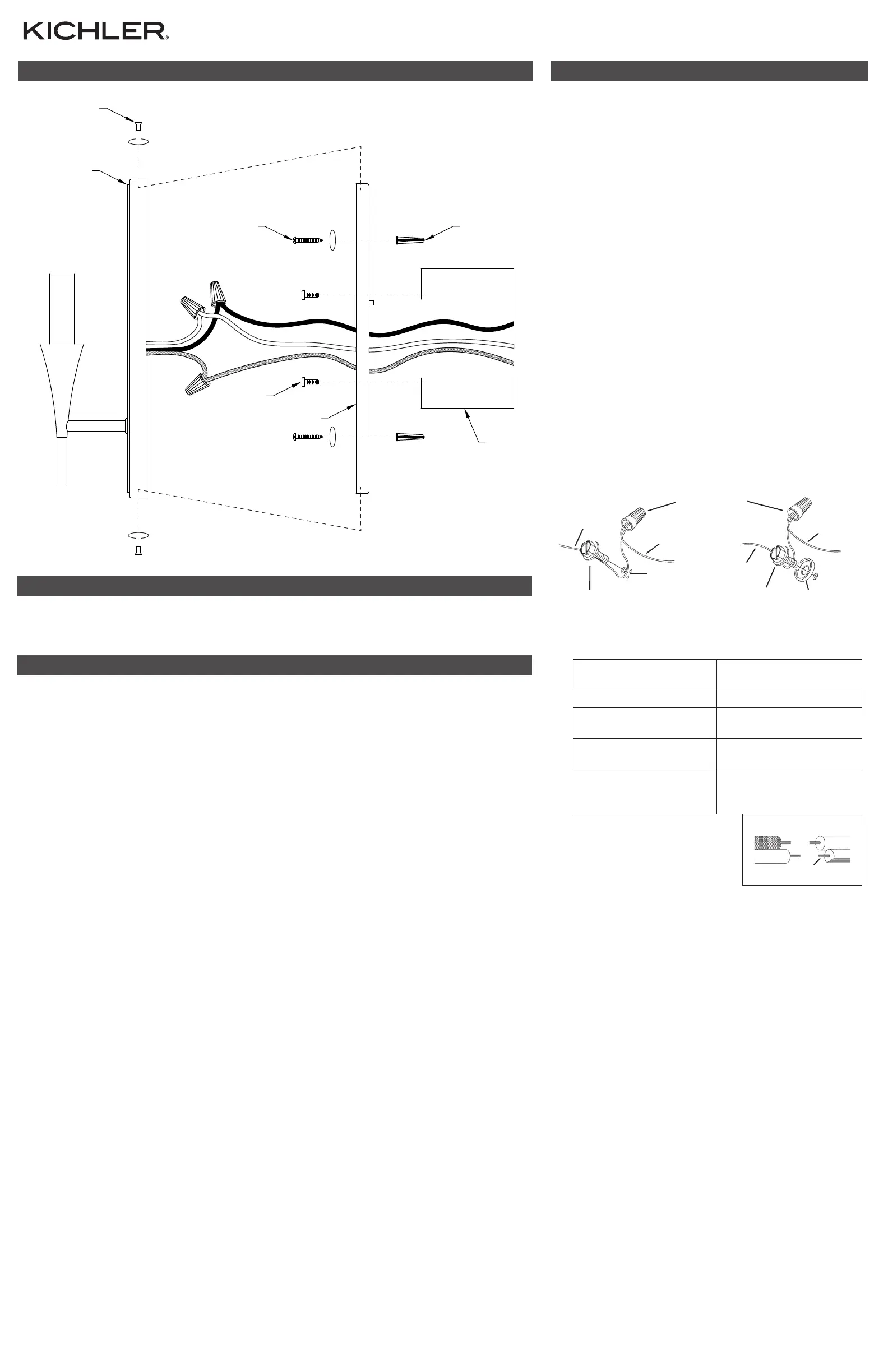

INSTALLATION INSTRUCTIONSFIXTURE DIAGRAM

IS-52694-US

PARTS LIST

[A] Mounting Screw (2)

[B] Canopy

[C] Wall Anchor Screw (2)

[D] Wall Anchor (2)

[E] Strap Mounting Screw (2)

[F] Mounting Strap

[G] Outlet Box (not supplied)

1. NOTE: Fixture should be installed with socket facing UP as shown.

Using the strap mounting screws[E], attach mounting strap[F] to outlet

box[G].

NOTE: Mounting strap should be installed with the flat side of the

mounting strap against the wall, and with the holes for the mounting

screws[A] at the 12 and 6 o’clock position as shown.

2. Using the mounting strap as a template, mark the positions for the

additional wall mounting locations through the holes near the top and the

bottom of the mounting strap.

3. Carefully remove strap mounting screws and mounting strap from outlet

box.

4. If additional wall mounting location is on a stud, use a 3/32” drill bit (not

included) to drill a pilot hole into wall.

If additional wall mounting location is not on a stud, use a 3/16” drill bit (not

included) to drill a hole for a wall anchor[D] into wall. Insert a wall anchor

into hole, and lightly tap wall anchor into mounting surface until flush.

5. Using the strap mounting screws[E], reattach mounting strap[F] to

outlet box[G]. Tighten to secure.

6. Secure mounting strap to wall by screwing the two (2) wall anchor

screws[C] into the additional wall mounting locations. Tighten to secure.

7. Grounding instructions: (See Illus. a or b).

a. On fixtures where mounting strap is provided with a hole and two

raised dimples, wrap ground wire from outlet box around green

ground screw, and thread into hole.

b. On fixtures where a cupped washer is provided, attach ground wire

from outlet box under cupped washer and green ground screw, and

thread into mounting strap.

If fixture is provided with ground wire, connect fixture ground wire to

outlet box ground wire with wire connector after following the above

steps. Never connect ground wire to black or white power supply wires.

8. Make wire connections. Reference chart below for correct connections

and wire accordingly.

Connect Black or Red

Supply Wire to:

Connect White Supply

Wire to:

BlackWhite

*Parallel cord (round &

smooth)

*Parallel cord (square &

ridged)

Clear, Brown, Gold or Black

without Tracer

Clear, Brown, Gold or Black

with Tracer

Insulated wire (other

than green) with copper

conductor

Insulated wire (other

than green) with silver

conductor

*Note: When parallel wire (SPT

1 & SPT 2) are used. The neutral

wire is square shaped or ridged

and the other wire will be round

in shape or smooth (See illus.)Neutral Wire

9. Push canopy[B] to wall, carefully aligning the mounting screw holes in the

top and bottom of the mounting strap with the mounting screw holes in

the top and bottom of the canopy.

NOTE: Make sure all wires are inside canopy and do not get pinched

between mounting strap and canopy or wall and canopy of fixture.

10. Screw two (2) mounting screws[A] into holes in canopy and mounting

strap to attach fixture to wall. One at the top and one at the bottom of the

canopy. Tighten to secure.

11. Insert recommended bulb(s) (not included).

GREEN GROUND

SCREW

CUPPED

WASHER

OUTLETBOX

GROUND

FIXTURE

GROUND

DIMPLES

WIRE CONNECTOR

OUTLETBOX

GROUND

GREEN GROUND

SCREW

FIXTURE

GROUND

a

b

© 2024 Kichler Lighting LLC. All rights reserved.
