DA-TM1100 INSTALLATION MANUAL

This manual is intended for users of the DA-TM1100 wall mounting

bracket. It includes instructions for mounting the DA-TM1100 wall

mounting bracket to a wall.

• This bracket is intended to be used with a specic

model of camera. Do not use it with other models of

cameras except for those approved by the dealer or

distributor.

• This installation should be performed by a qualied

service personnel in conformance to all local codes.

• You may need to reinforce the wall. If the wall is not

strong enough to support the camera, the camera

may fall.

• Do not use this product for other purposes.

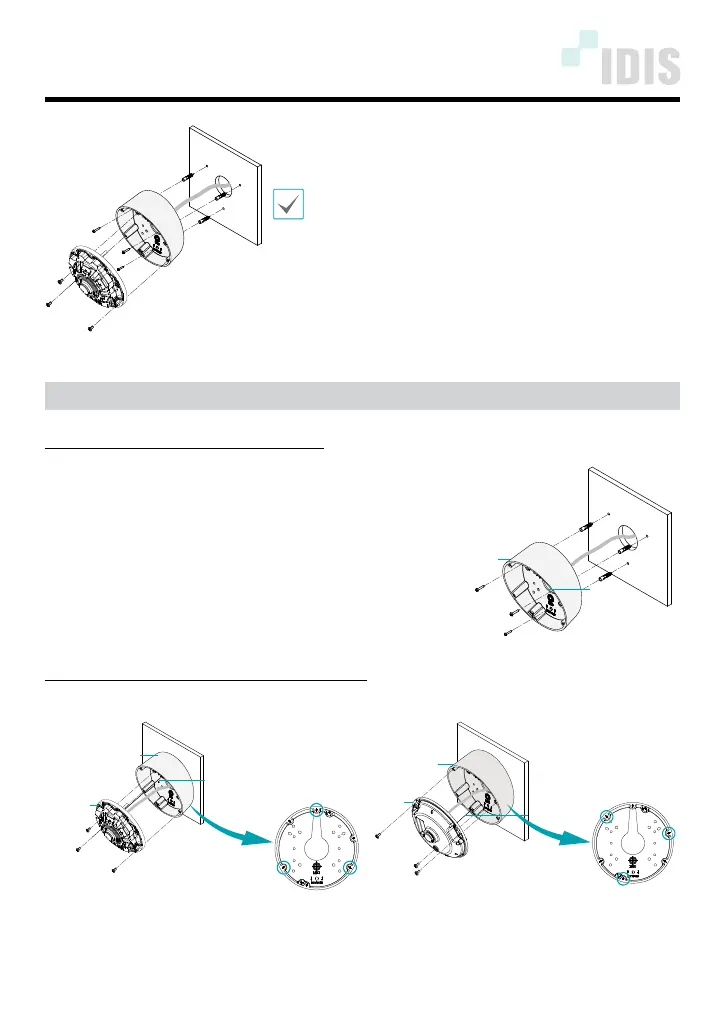

Mounting

Mount the bracket to the wall as follows:

1 Insert cables from external devices, network and

power adapter to the sponge and bracket.

2 Mount bracket to the wall by using the provided

anchors and screws.

Bracket

Wall Hole

Connect your camera to the bracket as follows:

3 Screw the camera body onto bracket.

Safety wire

Bracket

Camera

body Safety wire

Bracket

Camera

body

IDIS Co., Ltd.

For more information, please visit www.idisglobal.com

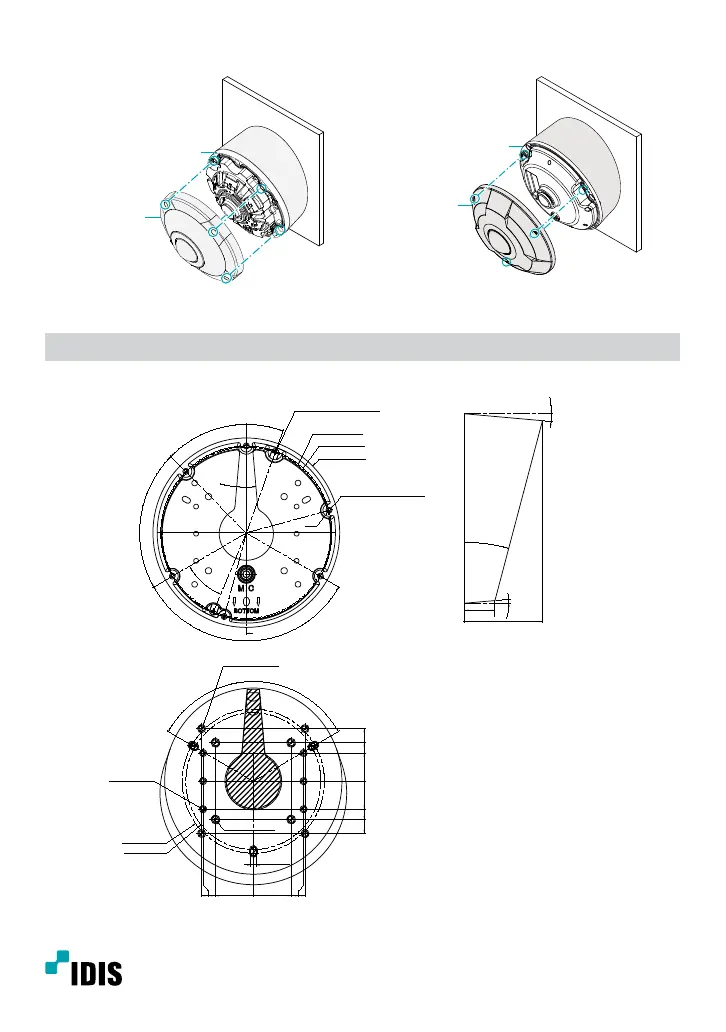

4 Screw the camera dome cover onto the camera body.

Camera

Dome

Cover

Camera

body

Camera

Dome

Cover

Camera

body

5 Turn on power.

Dimensions

Unit: mm (inch)

3-120°

20°

75°

45°

37°

10°

Ø140(5.51)

Ø142(5.59)

Ø155(6.10)

6-M4 TAP(DP 8.0)

2-2.6 TAP(DP 6.0)

15°

5°

25(0.98)

64.4(2.53)

4-Ø4.7(0.19)

6-Ø4(0.15)

4-Ø5.3(0.21)

3- 4.5(0.18)

Ø118 (4.65)

Ø112 (4.41)

23(0.90)

31.4(1.24)

42.9(1.69)

3-120°

42.9(1.69)

42.90(1.69)

41.70(1.64)

31.40(1.24)

42.90(1.69)

41.70(1.64)

31.40(1.24)

Ver.1.0

Product specificaties

Merk:	IDIS
Categorie:	Niet gecategoriseerd
Model:	DA-TM1100
Kleur van het product:	Wit
Gewicht:	380 g
Breedte:	155 mm
Diepte:	155 mm
Hoogte:	64.4 mm
Compatibiliteit:	DC-Y1514, DC-Y1514W, DC-Y3C14WRX, DC-Y8C13RX, DC-Y8C13WRX
Type product:	Montageplaat
Aantal producten inbegrepen:	1 stuk(s)
