This manual is intended for users of the DA-CM1500 pedestal mounting

bracket. It includes instructions for mounting the DA-CM1500 pedestal

mounting bracket to a ceiling.

• This bracket is intended to be used with DC-S series model of

cameras. Do not use it with other models of cameras.

• This installation should be performed by a qualied service

personnel in conformance to all local codes.

• You may need to reinforce the ceiling. If the ceiling is not strong

enough to support the camera, the camera may fall.

• Do not use this product for other purposes.

Mounting

Mount the bracket to the ceiling as follows:

1 Mount the bracket to the ceiling.

2 Insert cables from external devices, network and power adapter

into bracket.

3 Assemble the pipe into the bracket.

Bracket

Cable

PF 1.5 Inch

Pipe

Connect your camera to the bracket as follows:

4 Connect the camera to the pipe by turning the universal nut.

Do not turn the camera but turn the universal

nut when connecting the camera to the pipe,

otherwise, the cable will be twisted.

5 Turn on power.

PF 1.5 Inch

Pipe

Cable

Camera

Universal Nut

DA-CM1500 INSTALLATION MANUAL

IDIS Co., Ltd.

For more information, please visit www.idisglobal.com

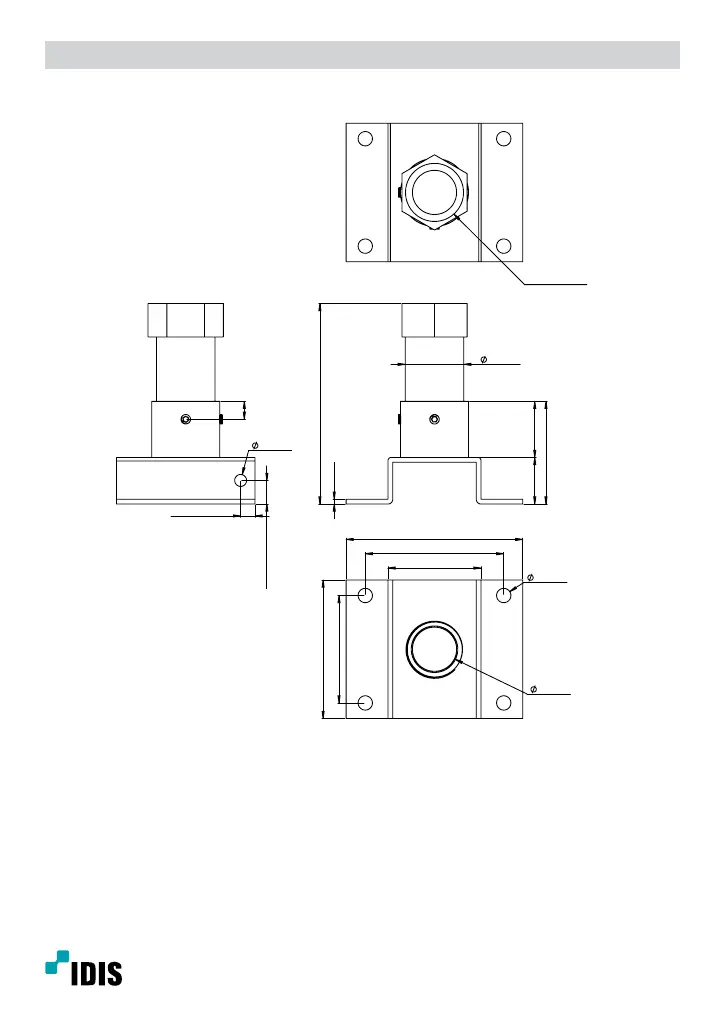

Dimensions

Unit: mm (inch)

47 (1.85)

4 (0.15)

86 ±5 (3.38 ±0.19)

168 ±10 (6.61 ±0.39)

39 (1.53)

49 (1.92)

10 (0.39)

12 ±2 (0.47 ±0.07)

19.8 ±2 (0.77 ±0.07)

15 (0.59)

148 ±3 (5.83 ±0.11)

116 ±1 (4.57 ±0.03)

12 (0.47)

116 ±3 (4.57 ±0.11)

90 ±1 (3.54 ±0.03)

78 ±3 (3.07±0.11)

39 (1.53)

PF 1.5" P : 2.3091

Ver.1.0

Product specificaties

Merk:	IDIS
Categorie:	Niet gecategoriseerd
Model:	DA-CM1500
Kleur van het product:	Wit
Gewicht:	560 g
Breedte:	148 mm
Diepte:	168 mm
Hoogte:	116 mm
Compatibiliteit:	DC-S6283HRXL, DC-S3583HRX, DC-S3883HRX, TC-S1283WHX
Type product:	Camerabeugel
