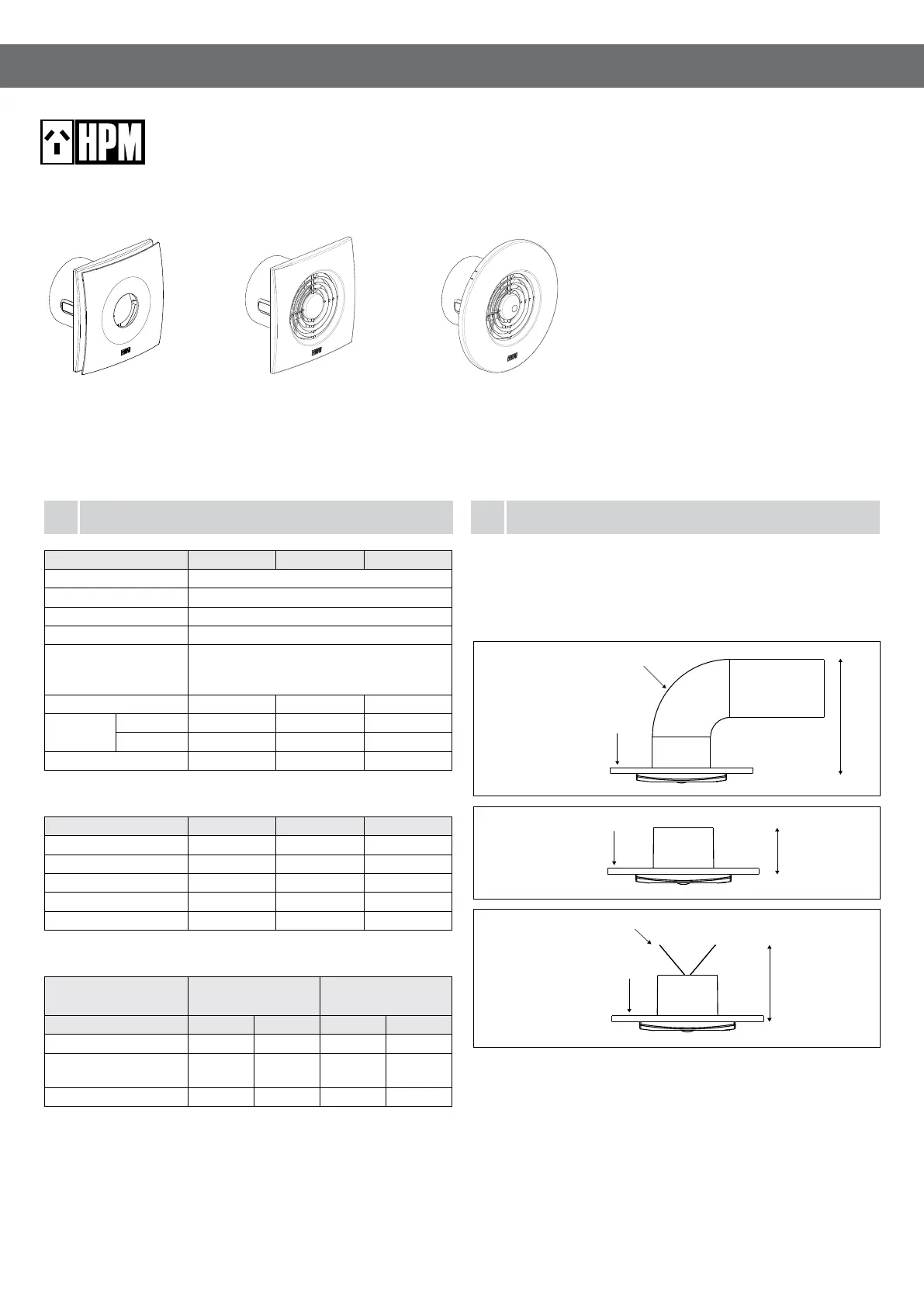

Standard square
100mm wall fan
Wall Exhaust Fan, 100mm
Instruction Manual
1 2 Product Specifications Mounting
For indoor use only.
*Measured with Φ100mm ducting.
Airflow will be reduced with bends in duct, squashing of duct,
restrictions on replacement air entering the room to be ventilated,
or pressure-differentials between the room and outside air.
The length of the duct will have an effect on the airflow. When fitted,
the wall kit (R621/4D) must be at the same height or lower than the
exhaust fan.
Slimline square
100mm wall fan
100mm wall fan
Supply Voltage 230-240VAC 50Hz
Power Rating 14W
Wall/Ceiling Cut-out Size Ø110mm
Class of Protection Class II
Time delay adjustment
(with time delay module
fitted, sold separately)
1 – 29 min adjustable
IP Rating IP44 IP24 IP24
Fascia Size 158x158mm 158x158mm Ø190mm
Protrusion 30mm 17mm 17mm
Weight (excl packaging) 500g 450g 450g
Exhaust Fan 1 pc 1 pc 1 pc
Draft Stopper 1 pc 1 pc 1 pc
Instruction Manual 1 pc 1 pc 1 pc
Warranty Card 1 pc 1 pc 1 pc
Wall Mount screws & Plugs
1 set 1 set 1 set
Draft Stopper with without with without
No duct 68 94 81 105
Wall kit R621/4D*
(350mm of duct)
33 68 48 75
1m of duct* 33 60 46 66
Airflow* (m2/hr)
Please read carefully: Read through these instructions completely before commencing installation. Retain for future use.
This product should be installed by a licensed electrical contractor or similarly qualified person.
These exhaust fans are designed primarily for wall-mounting.
They may be vented in to a cavity wall or in to the roof space in the
ceiling. Alternatively, the fan may be ducted through an outside wall
(with the addition of ducting and an outside grille). Protrusions into
wall/ceiling cavity are as per below figures.
Regulations concerning the discharge of air must be fulfilled.
Local building codes may require venting to the outside. Locate in
accordance with the requirements of the Wiring Rules AS/NZS 3000
relating to damp situations.
Note: Steam will only be removed if there is sufficient flow of air
through the room. Ensure adequate inlet openings in the room are
provided, for example through windows, vents or under the door. Air-
flow paths from room inlets to fan should ideally pass over surfaces
where condensation may form.
Draft Stopper
Fan with duct
Fan only
Fan with
draft stopper
HPM Legrand warrants this product for a period of 3 years from the date of purchase.
These goods come with guarantees that cannot be excluded under the Australian and
New Zealand Consumer Laws. You are entitled to a replacement or a refund for a major
failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired if the goods fail to be acceptable quality
and the failure does not amount to a major failure. See the Warranty card enclosed with
this product for further details.
Customer Service
For all Customer Service and Technical Support
please call Monday to Friday during business hours.
HPM Legrand Australia HPM Legrand New Zealand
1300 369 777 0800 476 009
www.hpm.com.au www.hpm.co.nz
ABN: 31 000 102 661
Optional Accessories

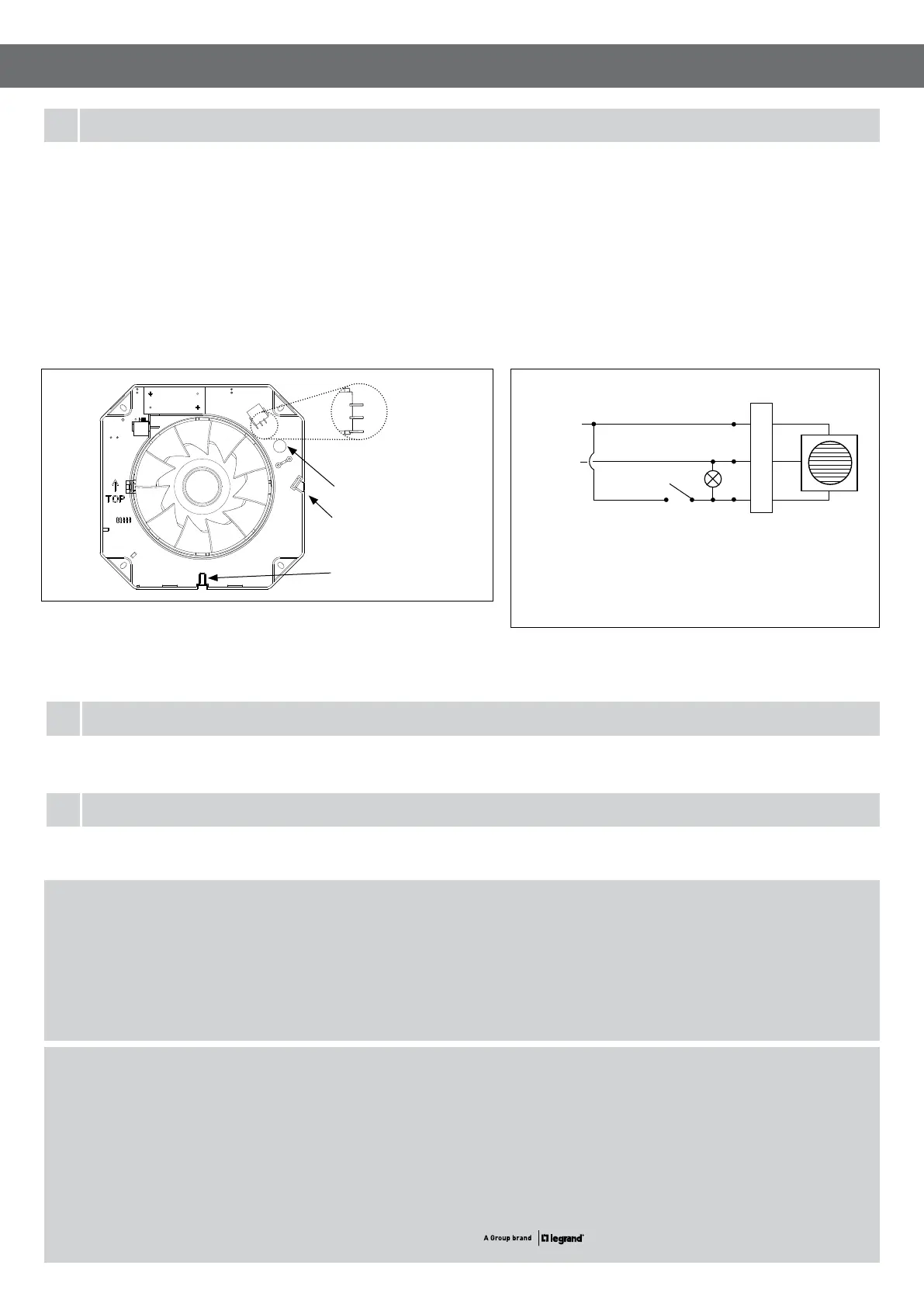

Remove all packaging from the product before commencing installation. Ensure the circuit has been isolated from the 240V mains before
commencing work.
1. Choose a suitable mounting location. There must be adequate clearances in the wall/ceiling to accommodate the Draft-stopper and/or
ducting. Refer to section 2 for further information.
2. If ducting through the wall to the outside, refer to instructions in the wall duct kit. Note: the wall kit is available separately, please refer
to Optional Accessories section.
3. Time-delay module is available separately, please refer to Optional Accessories section.
4. Make a circular 110mm hole in the wall/ceiling.
5. Remove front cover / fascia by removing fixing screw and cap on the underside of the cover.
6. Remove draft-stopper if not required. Note that the draft-stopper (when fitted) has an effect on the airflow.
7. Make the electrical connections (as per Figures below).
8. Ensure orientation of fan is with arrow pointing
9. Fix fan firmly to the wall with the 4 screws provided.
10. Replace front cover/fascia and tighten fixing screw. Replace cap.
11. Switch on and test function. Use a paper tissue held against fan inlet to verify suction.
The exhaust fan grill should be cleaned every 6 months to prevent dust build-up. Ensure the fan is switched off from the mains supply before
removing the fascia.
R621/4D – 100mm wall duct kit
EF100/150TD – Time delay module allows the fan to run for a set period, adjustable between 1 - 29 mins, after the switch has been turned off.
Cable entry
from rear
Cord entry from
side for plug and
lead (knock-out
LS Switched Active
from wall switch
N Neutral
L Unswitched Active
(only used when
timer module is
Fixing screw
position of fascia
Figure 1. Figure 2. Fan with timer module and light fitting
1. This product must be installed and used as per these instructions. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, 2.
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance. This appliance is intended for household use and similar purposes. It is not suitable for use in an environment heavily laden with dust. Under 3.
these conditions the life of the fan motor can be significantly reduced. This product contains no serviceable parts and no attempt should be made to repair this product. If the product is faulty it 4.
should be discarded. This product must be cleaned periodically from dust and other contaminants with a damp cloth. Aggressive cleaning agents and solvents should never be used. Airflows 5. 6.
listed in this product indicate the product performance. Refer to the BCA (Building Code of Australia), or similar, for the appropriate airflow required for a particular installation. Ventilation 7.
products must have an adequate source of external air to ensure correct performance. Consideration must be taken in the installation of ducts to ensure that condensation that will form in the 8.
duct will not run back in to the fan housing. Precautions must be taken to avoid the back-flow of gases into the room from the open flue of gas or other fuel-burning appliances. This product 9. 10.
has been designed for domestic or similar uses and is not suitable for a commercial installation. This product utilises intellectual property in the form of registered designs, trademarks, and/or 11.
patents. Such intellectual property remains the property of HPM Legrand in all cases. HPM Legrand reserves the right to modify the specification of this product at any time.12.
Active L
Connection from rear – bring mains wiring through
cable entry hole.
Connection from side (Fan only) – use twin flat core
(H03VV-H2) or circular core (H05VV-F) 2 x 0.75mm2
and place under cable clamp provided.
