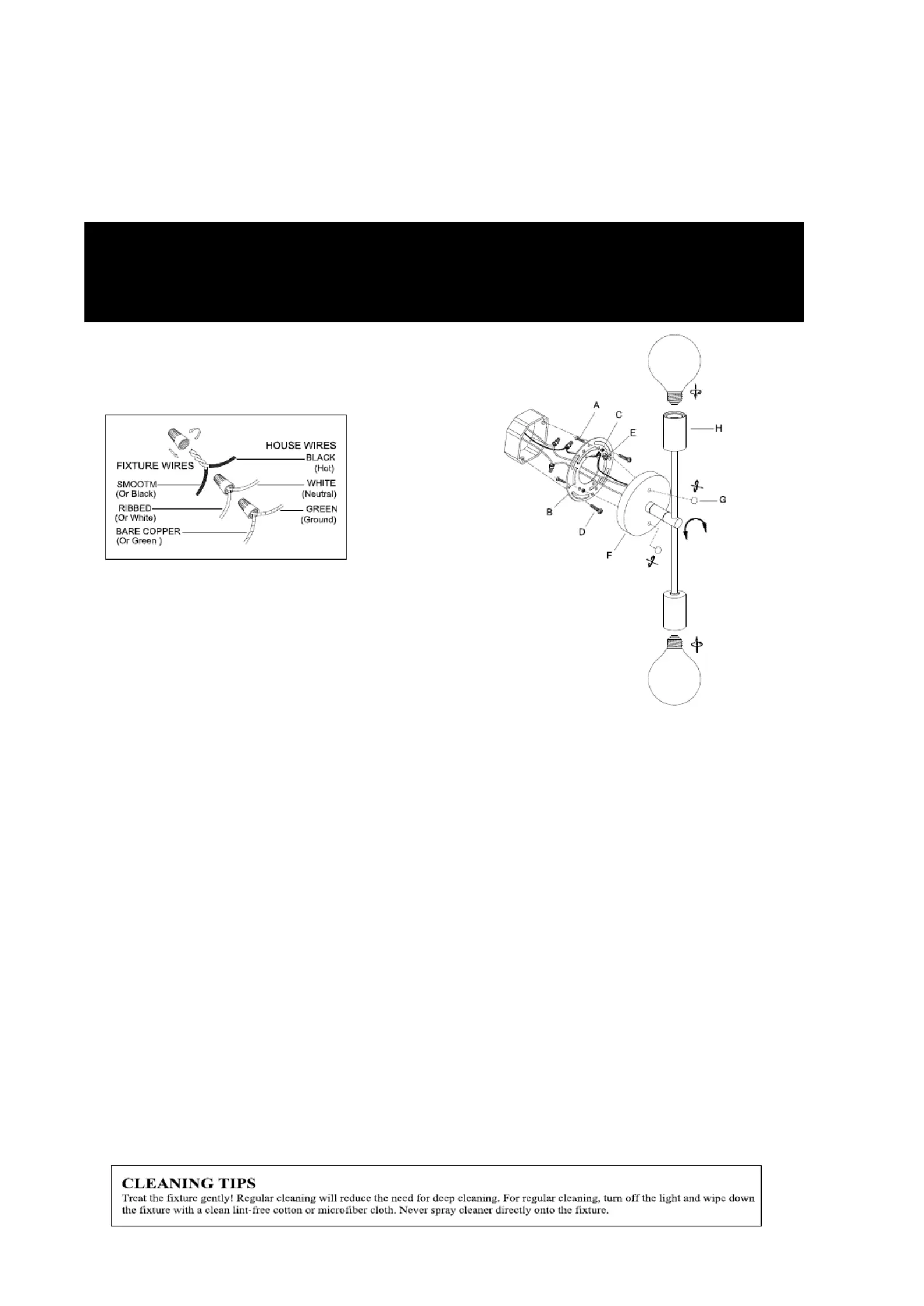

INSTALLATION INSTRUCTIONS

For Model 7117-02

READ AND SAVE THESE INSTRUCTIONS

These instructions are provided for your safety. It is essential to read them carefully and completely before installing the

light fixture. We strongly suggest that all direct-wired fixtures be installed by a qualified, licensed electrician.

PREPARING FOR INSTALLATIONS

Remove all contents from the carton. See the important notes above. Shut off the power at the circuit breaker and completely remove

the old fixture from the ceiling, including the old mounting strap.

The mounting plate(B) contains several pairs of threaded holes. Find holes that match the spacing of the holes on the junction box and

your fixtures backplate (F). Two mounting screws(A) should be attached to the mounting plate(B). You may need to tighten the nuts ’

that hold these screws in place. Pull the house wires through the center of the mounting plate(B). Place the mounting plate(B) over the

junction box to align with the holes on the fixtures backplate(F). Secure the mounting plate(B) to the junction box by securely ’

tightening the mounting screws(D).

CONNECTING THE WIRES

Attach the fixtures wire to the power supply wires the junction box. Connect the black wire to the black wire(or smooth),’at the white

wire to the whitethe ground wire to the ground wireand (or ribbed), (green or copper). Twist the end of the wire pairs together,

twist on a wire connector. Make sure all twists are in the same direction. If there is no ground wire(green or copper) from the junction

box, locate the ground screw(E) on the mounting plate(B) and wrap the fixtures ground wire around the green ground screw(E). Use a ’

screwdriver to secure the ground screw(E) onto the mounting bracket. Tuck all wires neatly into the junction box.

FINISHING THE INSTALLATIONS

Place the fixtures backplate(F) over the mounting screws(A) so that screws protrude through the holes the front of the backplate. ’ to

Secure the backplate(F) in place with deco nuts(G). Install light bulb(s) (not included) in accordance with the fixtures specifications. Do ’

not exceed the recommended maximum wattage.

WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER

BEFORE INSTALLATION

AVERTISSEMENT! COUPER LE COURANT AU NIVEAU DES FUSIBLES OU DU DISJONCTEUR.
