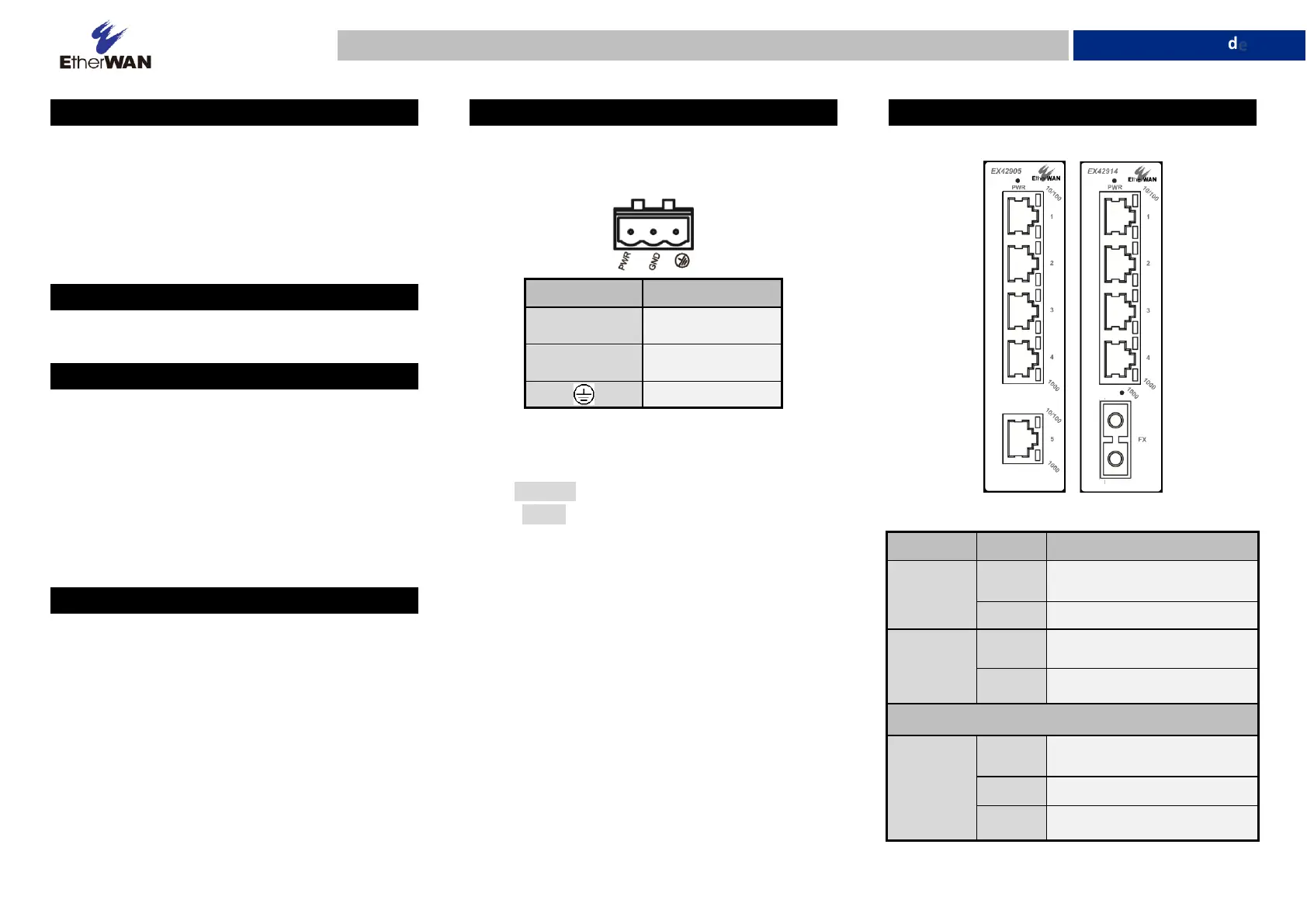

W70G-EX42900Q1 Page 1

Installation Guide

EX42905| Hardened Unmanaged Switch

Copyright 2023 EtherWAN Systems, Inc.All Rights Reserved 02/17/2023

1Unpacking

Open the carton and unpack the items. Your package

should include:

▪One EX42905 or EX42914 Switch

If any items are missing or damaged, notify your

EtherWAN representative. If possible, save the carton

and packing material in case you need to ship or store

the switch in the future.

2Equipment Needed

▪Category 5 or better cable for RJ-45 ports

▪Appropriate fiber cable for fiber ports

3Select a Location

▪Installation: DIN rail. Place the device on the DIN

rail from above using the slot. Push the front of

the device toward the mounting surface until it

audibly snaps into place.

▪Choose a dry area with ambient temperature

between -40 and 75°C (-40 and 167°F).

▪Keep away from heat sources, sunlight, warm air

exhausts, hot-air vents, and heaters.

▪Be sure there is adequate airflow.

4 Connect to the Data Ports

Your switch has the following ports:

▪4, 5 10/100/1000BASE-T ports

▪0 or 1 1000BASE-X fiber port

5Connect Power

Power is supplied via a 12-48VDC terminal block

connected to a DC power cord. Power consumption is

6.5W Max. 0.25A@24VDC.

Pin

Description

PWR

Power Input

GND

Power Ground

Earth Ground

Power-Up Sequence

When the switch is powered up:

▪All Link/ACT LEDs blink momentarily.

▪The Power LED lights up and stays lit.

▪LEDs for every port connected to a device will

flash, as the switch conducts a brief Power On Self-

Test (POST).

6Port Status LED Indicators

LED

State

Description

Power 1, 2

(Green)

On

Switch is powered ON

correctly

Off

Switch is not receiving power

Alarm (Red)

On

Relay alarm on

Off

Relay alarm off

Gigabit Ports

Link/Act

(Green)

On

Valid network connection

established.

Off

No link.

Blinking

Transmitting or receiving data
