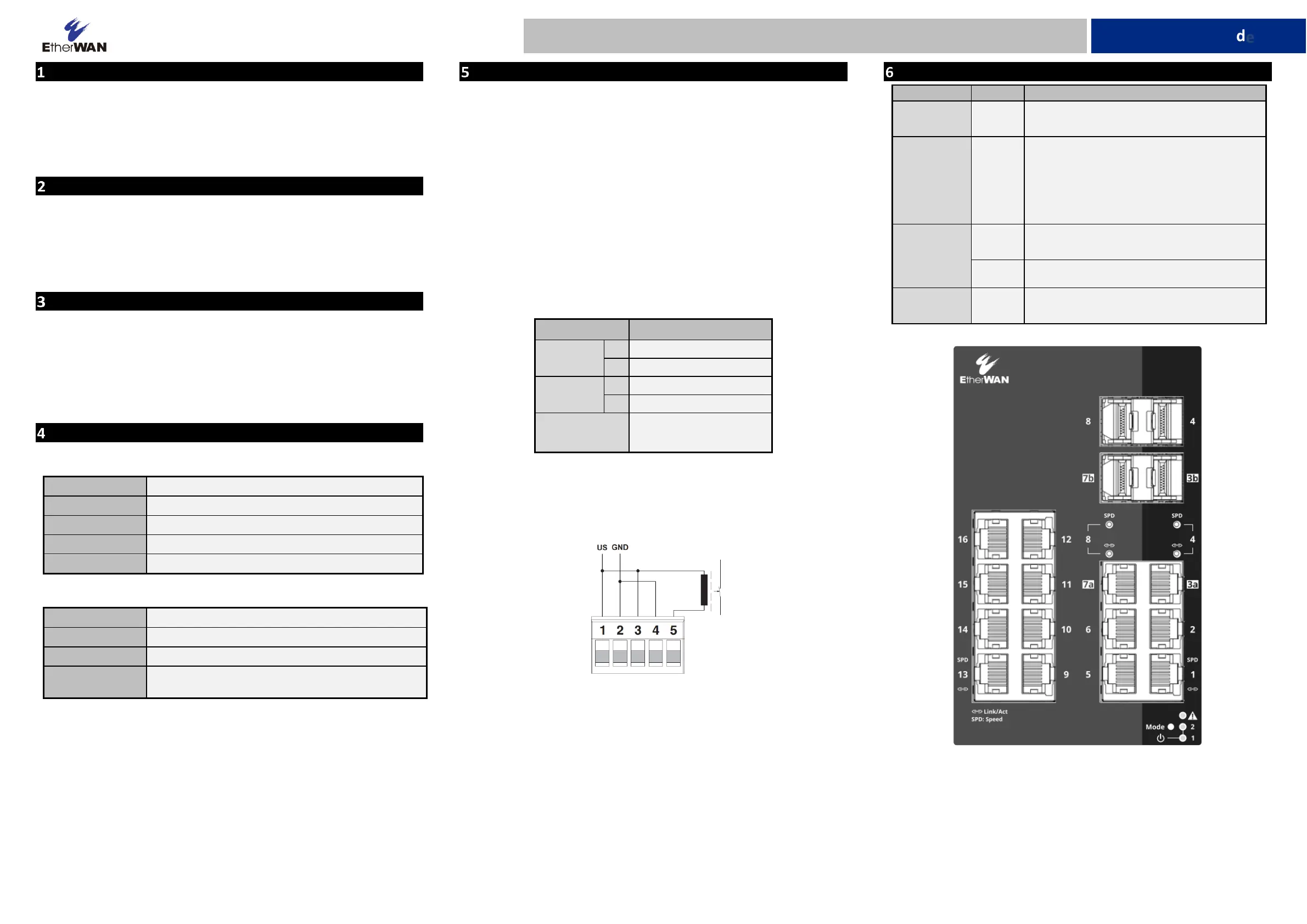

Installation Guide

SmartE Series | Hardened Managed Ethernet Switch

Unpacking

Open the carton and unpack the items. Your package should include:

▪One SmartE hardened switch

▪DIN rail brackets and screws

If any items are missing or damaged, notify your EtherWAN representative. If

possible, save the carton and packing material in case you need to ship or store the

switch in the future.

What Else You Need

▪Appropriate cables for data ports. To prevent damage to the switch from

electrical surges, it is recommended to use STP (Shielded twisted pair)

cabling.

▪Personal computer or laptop

▪Appropriate SFP modules for SFP ports

Select a Location

▪Installation: DIN-Rail mount, wall mount, flat panel mount. Wall and flat

panel mounting kits are purchased separately.

▪Select a power source within 6 feet (1.8 meters).

▪Choose a dry area with ambient temperature between -40 and 75ºC (-40

and 167ºF). Make sure the vents are not blocked or covered.

▪Humidity range (Operational): 10% to 95%, non-condensing.

Connect to the Data Ports

Depending on the model, your switch can have the following ports:

Fast Ethernet Models

SF300-05

5-port 10/100BASE-T(X)

SF300-08

8-port 10/100BASE-T(X)

SF300-0602

6-port 10/100BASE-T(X) + 2-port 100BASE SFP

SF300-16

16-port 10/100BASE-T(X)

SF300-1402

14-port 10/100BASE-T(X) + 2-port 100BASE SFP

Gigabit Ethernet Models

SG300-08

8-port 10/100/1000BASE-T(X)

SG300-0602

6-port 10/100/1000BASE-T(X) + 2-port 100/1000BASE SFP

SG300-16

16-port 10/100/1000BASE-T(X)

SG300-120202c

12-port 10/100/1000BASE-T(X) + 2-port 100/1000BASE SFP

Combo + 2-port 100/1000BASE SFP

Connect Power

▪The switch is equipped with a terminal block with two pairs of power inputs.

▪Only one power input is required to operate the switch. However,

redundant power supply functionality is supported.

▪Input power is 12-57VDC, 0.15A~0.55A for SF300-05 / SF300-08 / SF300-

0602 / SG300-08 / SG300-0602.

▪Input power is 12~57VDC, 0.2A~0.95A for SF300-16 / SF300-1402 / SG300-

16/SG300-120202c.

▪The power input specification complies with the requirements of SELV

(Safety Extra Low Voltage), and the power supply should comply with UL

61010-1 and UL 61010-2-201 with LPS or limited energy source.

Terminal Block

The switch provides two power inputs on a 12-57VDC terminal block. The

terminal block has 5 terminal posts.

Pin

Description

Power 1

+

12-57VDC

−

Power Ground

Power 2

+

12-57VDC

-

Power Ground

Digital output

12-57VDC, typ. 100mA

max. 0.7A (1 minute)

Digital Alarm Output

The digital alarm output is an open drain output. In normal mode, the output is

connected to ground potential. If an error/alarm is present, the output is floating.

Front Panel LEDs

LED

Color

Status

Power 1 & 2

Green

On: Power on

Off: Power off

Link/Act

Green /

Orange

On:

Green: Link active

Orange: SFP link at combo port active

Flashing: Data transmitting

Off: Link not active

Link Speed

Green

Off: 10Mbps

On: 100Mbps

Orange

On: 1000 Mbps

Alarm

Red

On: Error has occurred

Off: No error present
