Source Four User Manual • 1
Source Four
User Manual

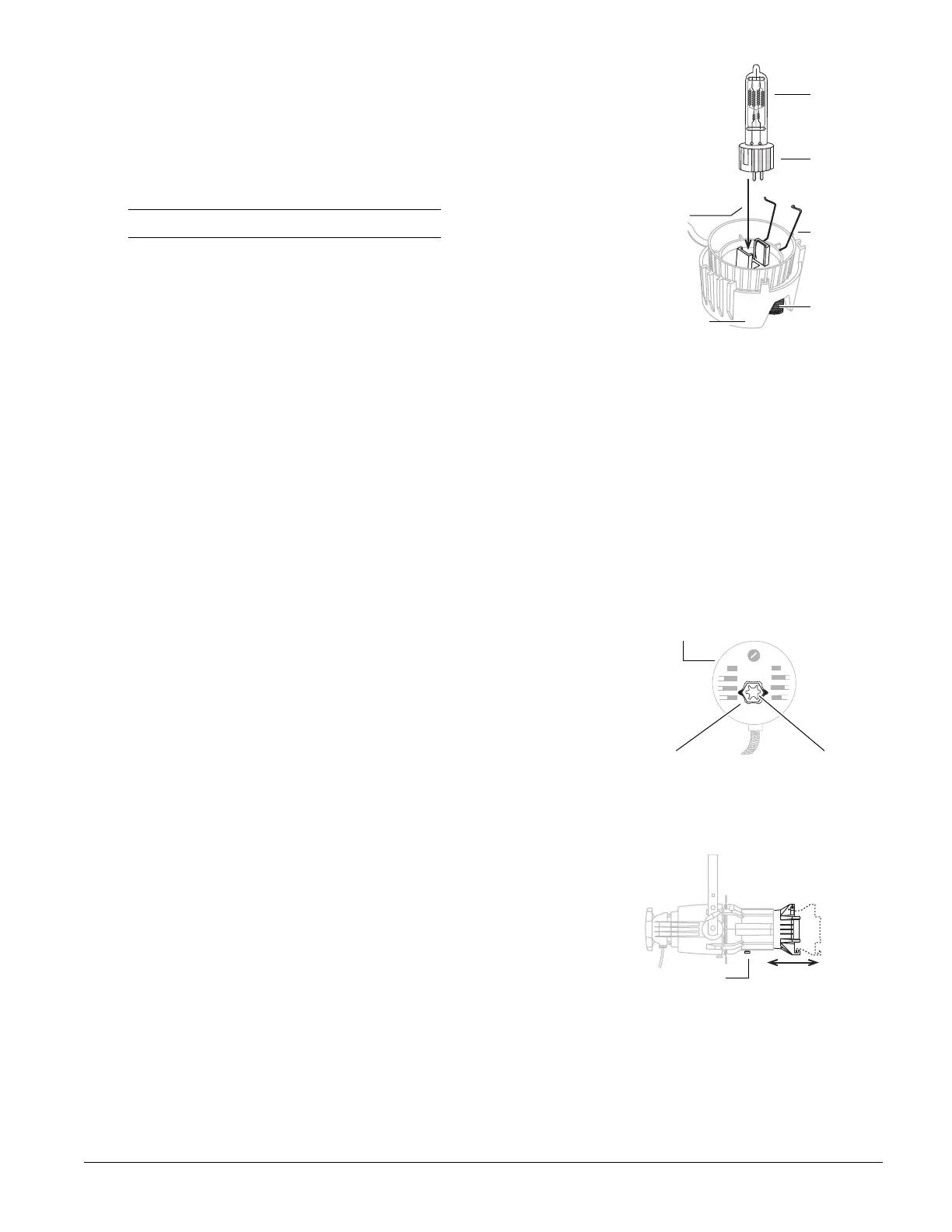

HPL lamps
Do not use lamps other than the HPL in Source Four fixtures.
Use of lamps other
than HPL will void UL/cUL safety compliance and your warranty
.
Lens locations
The different lenses used in the
Source Four are not interchangeable.
When installing a new lens, refer to
the illustration below for proper
placement. Also, remember to have
the lens’ color designator dot facing
the color frame.
Lamp codeWattsVoltsInitial LumensColor temp.Average rated life
HPL 750/115
75011521,9003,250º K300 hour
HPL 575/11557511516,5203,250º K300 hour
HPL 575/115X57511512,3603,050º K2,000 hour
HPL 575/12057512016,4603,250º K300 hour
HPL 375/11537511510,5403,200º K300 hour
HPL 375/115X3751158,0683.000º K1000 hour
HPL 550/77*5507716,1703,250º K300 hour
HPL 550/77X*5507712,1603.050º K2,000 hour
HPL 750/22075022019,4003,200º K300 hour
HPL 750/23075023019,4003,200º K300 hour
HPL 750/24075024019,4003,200º K300 hour
HPL 575/23057523014,9003,200º K400 hour
HPL 575/24057524014,9003,200º K400 hour
HPL 575/230X57523011,7803,050º K1500 hour
HPL 575/240X57524011,7803,050º K1500 hour
HPL 375/230X3752307,8003,050º K1000 hour
HPL 375/240X3752407,8003,050º K1000 hour
Table 1:
HPL lamp reference
*To be used with ETC Dimmer Doubler™
19° (6x16)
Red dot
26° (6x12)
Black dot
36° (6x9)
Dotless
50° (4.5x6)
Yellow dot

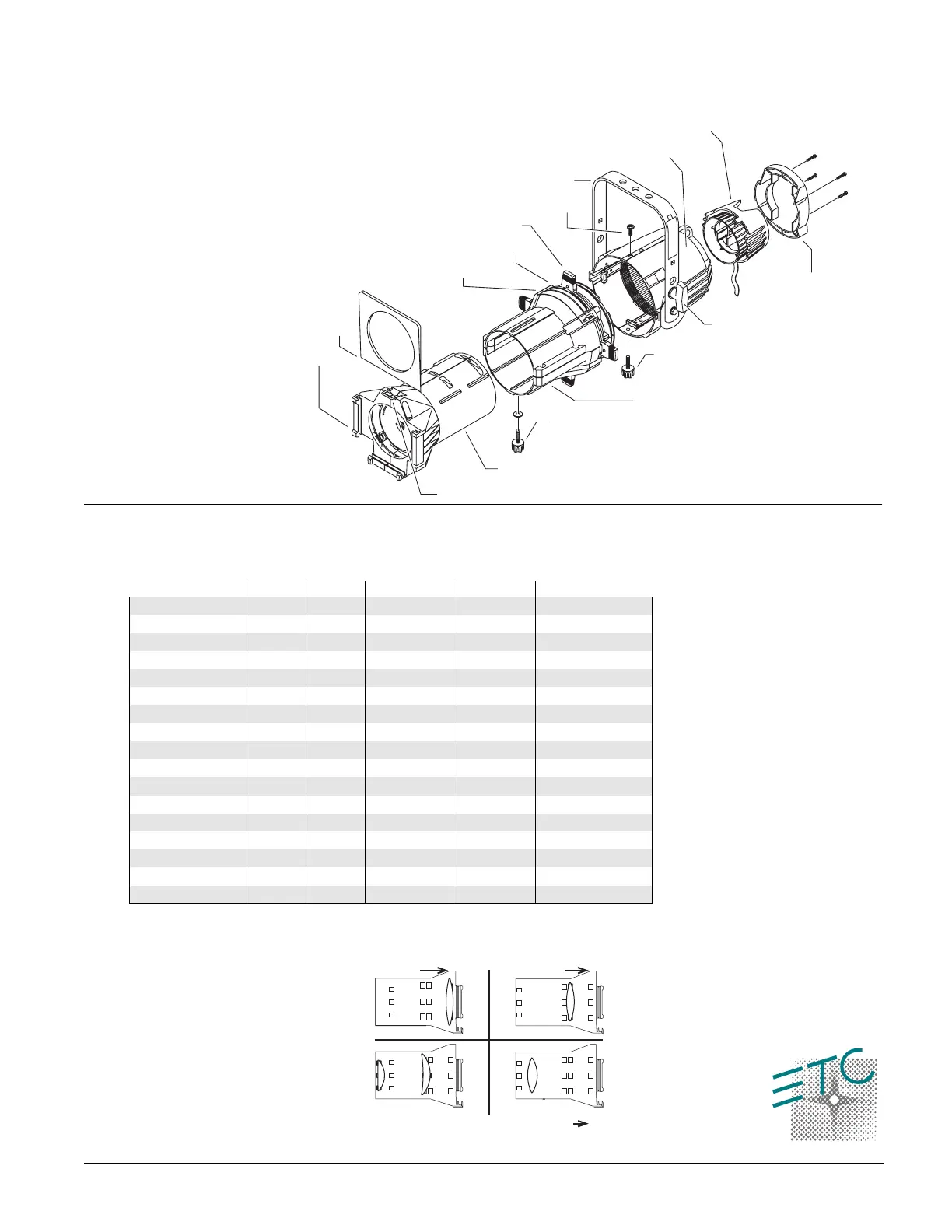

Figure 1
Retainin
g
cli
p
Color frame holder
Color frame
Drop-in iris slot
Pattern holder slot
Shutters
Retainer bolt
Yoke
Insulated handle
Yoke locking knob
Barrel rotation knob
Barrel
Beam focus knob
Lens tube
Reflector housing
Lamp housing
Note:
Safety cable is included
for cUL applications.
ª
