Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.2301231 of 3

RADIO REPLACEMENT

SWC RETENTION

+

R

INTERFACING SOLUTIONS

- Retains factory features in select GM LAN 11 Bit vehicles while functioning with an aftermarket radio.

- Pre-programmed to retain factory Steering Wheel Controls.

- Supports Non-Bose and Bose amplified systems.

- Provides Vehicle Speed Sensor (VSS), Parking Brake and Reverse Outputs.

- Retains factory OnStar

®

- Retains chime functions.

PRODUCT FEATURES:

PARTS INCLUDED:

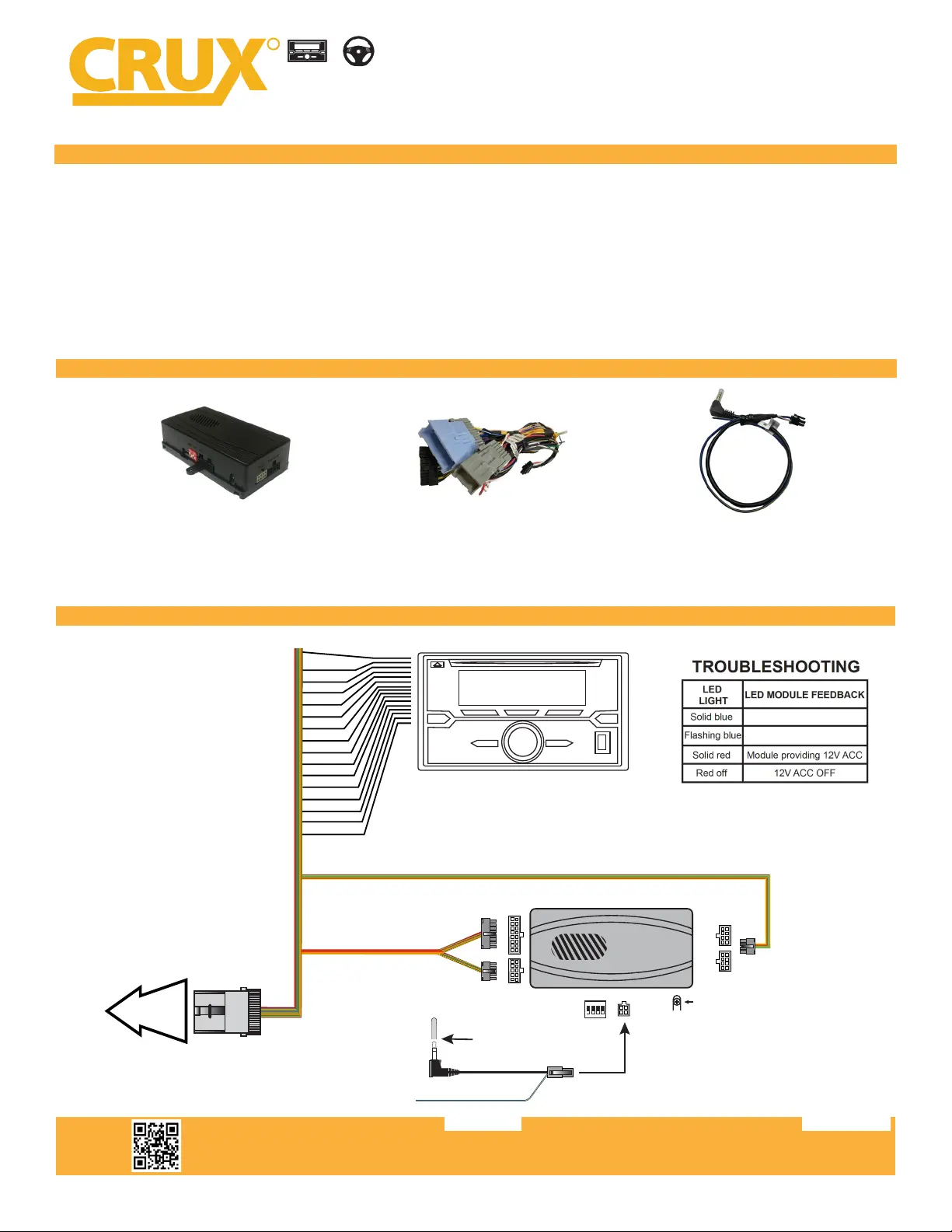

INSTALLATION DIAGRAM:

CS-GM11C MODULECS-GM11C HARNESSSWC CABLES

TO FACTORY

HARNESS

24-Pin

Connector

Harness

ONST-11C

OnStar® Radio Replacement Interface with SWC Retention

for Select GM LAN 11-Bit Vehicles 2004-2009

-EIA color coded wiring for easy installation.

AFTERMARKET

RADIO

24-Pin

Connector

8-Pin

Connector

BOSENON

BOSE

10-Pin

Connector

SWC DIP SWC

1 2 3 4

ON

Chime Volume

Adjustment

4-Pin

Connector

Cap or insulate if

not being used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

JVC/Kenwood (Blue / Yellow)

To aftermarket

radio SWC wire or

3.5mm port

LAN Bus not recognized

LAN Bus recognized

Reverse GearPurple/White

Parking Brake Yellow/Black

Illumination (+) Orange

+12V Constant Yellow

+12V ACC Red

Ground Black

Right Front (+) Gray

Right Front (-) Gray/Black

Left Front (+) White

Left Front (-) White/Black

Right Rear (+) Violet

Right Rear (-) Violet/Black

Left Rear (+) Green

Left Rear (-) Green/Black

Vehicle Speed OutputRed/Black

Amplifier Turn-onBlue/White
