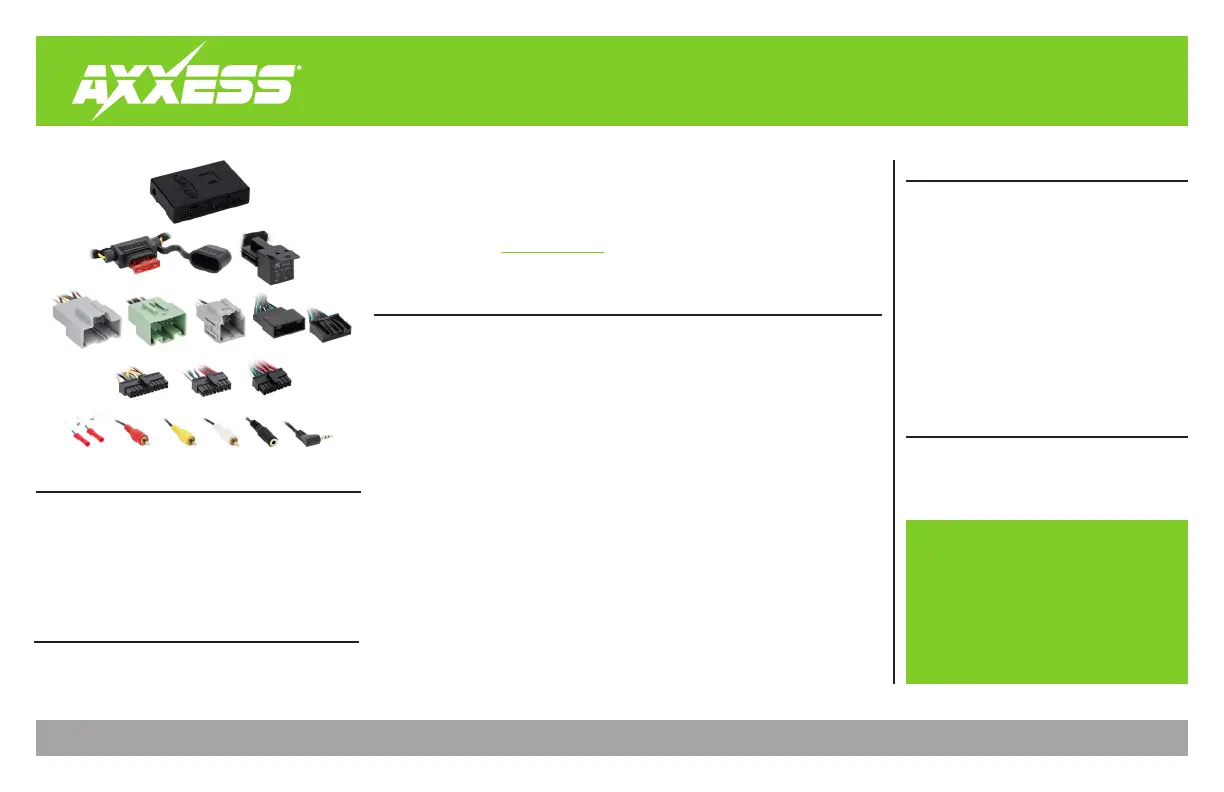

AXDIS-GMLN9BT

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 10/7/25 INSTAXDIS-GMLN9BT

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

TABLE OF CONTENTS

Applications ...........................................................2

Connections: LD-LAN09-BT ...................................3

Installation .............................................................4

Programming .........................................................4

Adjustments ...........................................................5

Radio LED Feedback...............................................6

App instructions .....................................................7

Troubleshooting.....................................................8

INTERFACE FEATURES

Radio Replacement Data Interface with SWC

Fits Select GM Models 2014-2021

Visit AxxessInterfaces.com for more detailed information

about the product and up-to-date vehicle specific applications

• Designed for non-amplified systems with RPO IO5/IO6

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains and controls personalization settings via Bluetooth

®

wireless technology

when used with the AX-CUSTOM-BT app for smartphones and tablets

• Retains audio controls on the steering wheel

• Retains OnStar

®

with adjustable volume or SYNC

®

if equipped

• Retains OEM Bluetooth

®

connectivity if equipped

• Retains safety chimes with adjustable gain control

• Retains factory backup camera, 3.5mm AUX-IN jack, and balance & fade

• High-level speaker input

• Micro “B” USB updatable

• Can be used with extension harness AXEXH-GM09

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Small flat-blade screwdriver

INTERFACE COMPONENTS

• AXDIS-GMLN9BT interface

• LD-LAN09BT harness

•

Female 3.5mm jack adapter

• LD-GMSWC harness

•

LD-BACKCAM-MOST harness (used w/RPO 105/106

only)

OPTIONAL ACCESSORIES (sold separately)

Extension Harness: AXEXH-GM09

BOSE Rentention interface: AXM50-GM1
