ASMB-786 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 Startup manual
• 2 Serial ATA HDD data cables
• 2 Serial ATA HDD power cables
• 1 COM cable
• 1 I/O port bracket
• 1 Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF
le.AcrobatReadercanbedownloadedat:
http://www.adobe.com/downloads/ (Acrobat is a
trademark of Adobe)
ASMB-786 LGA 1151 Intel® Xeon® E and 8th/9th Gen
Core™ ATX Server Board with 4 x DDR4, 7 x PCIe,
6 x USB 3.1, 8 x SATA3, Quad/Dual LANs, IPMI
Startup Manual
Standard Functions
• CPU: Intel LGA1151 Xeon E-21xx/22xx and 8th/9th Gen
Core i3/i5/i7 series processors
• BIOS: AMI 256 Mb SPI BIOS
• Chipset: Intel C246
• System Memory: Dual Channel DDR4 ECC/Non-ECC
2666/2400/2133MHzunbueredDIMM,Max.128GB
Note: Due to the inherent limitations of PC architecture,
the system may not fully detect 128 GB RAM
when 128 GB RAM is installed.
• SATA3 Interface: 8 SATA3 6Gb/s ports to support Intel
Rapid Storage Technology Enterprise with software RAID
0, 1, 10 & 5. (for Windows only)
• Serial Ports: Two serial ports onboard, only support RS-
232 (one can be in rear IO via COM cable connection)
• Keyboard/Mouse Connector: Supports standard PS/2
keyboard and mouse via KMBS1 pin header
• Watchdog Timer: 255 level timer intervals (sec/min)
• USB 3.1: Supports up to six USB 3.1 ports, four Gen2
ports in rear I/O and two Gen1 ports from on-board pin
header
• USB 2.0: Supports up to seven USB 2.0 ports (1* Type-A)
Display Interface
• Chipset: CPU integrated Intel HD graphics controller
• Display Memory: 1 GB maximum shared memory with
2 GB and above system memory installed (BIOS default
is 256 MB)
• Resolution:
- Supports VGA up to 1920 x 1200 resolution @ 60 Hz
refresh rate
- Supports DVI up to 1920 x 1200 resolution@ 60 Hz
refresh rate
- Supports HDMI 2.0 up to 2K/4K resolution @ 60Hz
Ethernet Interface
• Interface: 10/100/1000 Mbps
• Controller: LAN1:Intel
®
I219LM; LAN2 ~ LAN4: Intel®
I210AT (LAN2 is BMC shared NIC; LAN3/4 is for G4 SKU
only)
Mechanical and Environmental
• Dimensions (L x W): 244 x 304 mm (9.6” x 12”)
• Power Supply Voltage: +3.3 V, +5 V, ±12 V, 5 Vsb
• Power Consumption: Max. load: +3.3 V @ 3.44 A, +5 V
@ 2.61 A, +12 V @ 1.04 A, +12 V (8P) @ 6.3 A, +5 Vsb
@ 0.09 A
• Operating Temperature: 0 ~ 60° C (depends on CPU
speed and cooler solution)
Specications
Packing List
For more information on this and other Advantech prod-
ucts, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website for ASMB-786 at:
https://advt.ch/searca78a8
Register your products on our website and get 2 months
extra warranty for FREE at:
http://www.register.advantech.com
This manual is for the ASMB-786 series Rev. A1..
Part No. 2001S78611
Printed in China
2nd Edition
January 2020
2 ASMB-786 Startup Manual
Connector list
PCIEX4_SLOT2,
PCIEX4_SLOT7
PCIe p2-x4 slot (Gen3 p2-x4 link)
PCIEX16_SLOT4,
PCIEX16_SLOT6
PCIE x16 slots (one Gen3 x16
link for slot 6 or two Gen3 x8
link for slot 4 and 6)
PMBUS1
PMBUS connector to communi-
cate with power supply
SATA0~7 SATA III (6Gb/s)
SYSFAN0,SYSFAN1,
SYSFAN2,SYSFAN3
System FAN connector
SPI_CN1 SPIashcardpinheader
SPI1 BIOS SPI ROM
SMBUS1 SMBus from PCH
SGPIO1, SGPIO2 Serial general purpose I/O
SPDIF_OUT1 SPDIF audio output pin header
SYS_LED1
System information LED con-
nector
USB5_6 USB 3.1 Gen1 port header
USB7_8, USB9_10,
USB11_12
USB 2.0 port header
USB13 USB 2.0 port (USB Type A)
VOLT1 Voltage display
*COM1 is directed to the PCB silk screen as COM1 or
COM3 but in BIOS it shows as COM1.
Jumper list
Label Function
CPUFAN_SEL1,
SYSFAN_SEL1
FAN PWM (1-2) / DC mode
(2-3)
HDMI_I2C1 For RD debugging
JCMOS1 CMOS clear
JME1
Intel ME Disable jumper for ME/
BIOS update
JWDT1 Watchdog reset
JUSB1
Rear window USB 3.1 Gen2
port power source switch
between +5 VSB and +5 V
JUSB2
On board USB2.0/3.1 Gen1 port
power source switch between
+5 VSB and +5 V
JCASE1 Case open
JPEG1, JPEG2
PCIEX16_SLOT6 PCIe Link
swtich between one x16 or two
x8 or x8, two x4
• Weight: 0.75 kg (weight of board)
The board has a number of jumpers that allow you to con-
gureyoursystemtosuityourapplication.Thetablebelow
lists the function of each jumper and connector.
Connector list
Label Function
ATXPWR1
ATX 24-pin main power connec-
tor (for System)
ATX12V1
8-pin power connector
(for CPU)
AUDIO1 Audio connector
BAT2 For optional battery kit
BMC_VGA1 BMC VGA connector
BMC_SPI1 BMC image ROM
CPUFAN0 CPU FAN connector
COM1*, COM2 Serial port: RS-232
DIMMA0,DIMMA1,
DIMMB0,DIMMB1
DDR4 288-pin slot
DVI1 DVI connector
EX_THR1 For external thermistor cable kit
FPAUD1 Front panel audio header
GPIO1 8-bit GPIO header
HDMI1_VGA1 HDMI + VGA connector
JFP1 Power Switch / Reset connector
JFP2
External speaker / HDD LED
connector/ SMBus connector
JFP3
Keyboard Lock and Power LED
Suspend:Fastash(ATX/AT)
System On: ON (ATX/ AT)
SystemO:OFF(ATX/AT)
KBMS1
External keyboard and mouse
connector (6 pin)
LAN1_USB1_2,
LAN2_USB3_4
LAN1 / USB 3.1 Gen2 port 1, 2
stack connector
LAN2 / USB 3.1 Gen2 port 3, 4
stack connector
LAN3_4 LAN3 & LAN4 connector
LANLED1 LAN LED extension connector
LPC1
Low pin count connec-
tor for Advantech TPM and
RS232/422/485 module
LPT1 Parallel port
PCIEX1_SLOT1,
PCIEX1_SLOT3,
PCIEX1_SLOT5
PCIe p2-x1 slot (Gen3 p2-x1 link)
Jumpers and Connectors Jumpers and Connectors (Cont.)

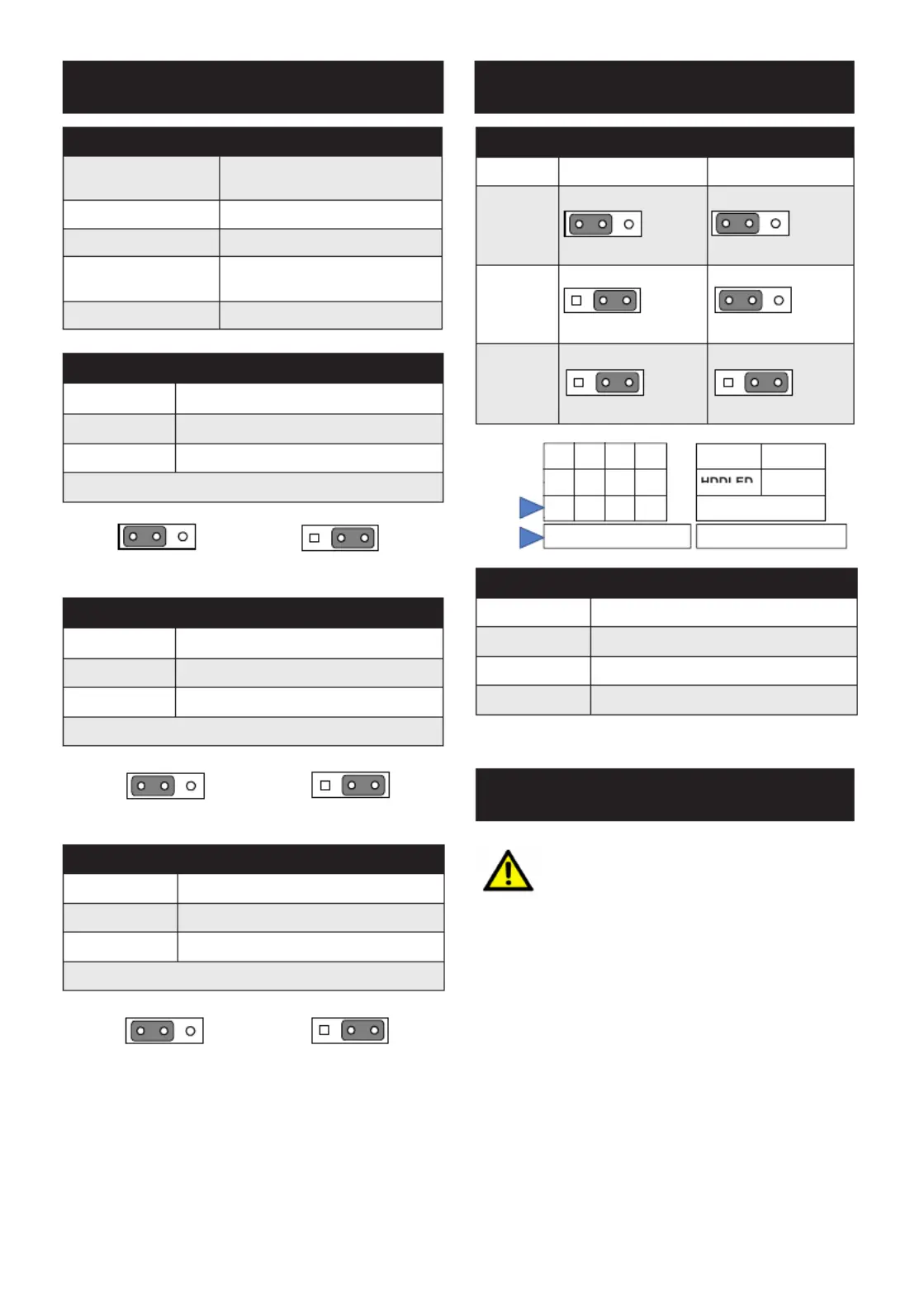

ASMB-786 Startup Manual 3
Jumper list
JPEG3
Default (1-2) / reserve for RD
debug (2-3)
JSMB1 For RD debugging
JPRSNT1 PCIe card present pin support
JTHR_SEL1
To select on board or external
thermistor
PSON1 AT (1-2) / ATX (2-3)
JWDT1: Watchdog timer output option
Closed Pins
Result
1-2 System reset*
2-3 NC
*: Default
PSON1: ATX, AT mode selector
Closed Pins
Result
1-2 AT Mode
2-3 ATX Mode*
*: Default
JCMOS1/JME1: CMOS clear/ME update function
Closed pins Result
1-2
Keep CMOS data/Disable ME update*
2-3 Clear CMOS data/Enable ME update
*: Default
Keep CMOS data/Disable ME update Clear CMOS data/Enable ME update
System Reset 1-2 Closed NC 2-3 Closed
123
123
AT Mode 1-2 closed ATX Mode 2-3 closed
123
123
123
123
PCIEX16_Slot6Conguration(JPEG2,JPEG1)
Function JPEG1 JPEG2
Slot6
PCIe p3-x16
(Default)
1-2 closed 1-2 closed
Slot6 PCIe
x8x8
2-3 closed 1-2 closed
Slot6 PCIe
x8x4x4
123
2-3 closed
123
2-3 closed
JFP1, JFP2
Pin.3 #PWR_SW
Pin.6
GND
Pin.9 #RST_SW
Pin.12 GND
*Power button pin is located in Pin 3 & 6 of front panel
connector.
Caution! The computer is supplied with a battery-powered
realtime clock circuit. There is a danger of explo-
sion if battery is incorrectly replaced. Replace
only with same or equivalent type recommended
by the manufacturer. Discard used batteries ac-
cording to manufacturer’s instructions.
This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation
123
123
123
123
3 6 9 12
PWRSW RESET
SNMP
JFP1
&
1 4 7 10
HDDLED
SM_BUS
SPEAKER
JFP2
&
PWRLED & KEYLOCK
1 2 3 4 5JFP3
2(+) 5(-) 8 11
(+) (-)
Jumpers and Connectors (Cont.) Installation Note
Declaration of Conformity
