ASMB-585 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 ASMB-585 Startup Manual
• 1 Driver CD (user’s manual is included)
• 2 Serial ATA HDD data cables
• 2 Serial ATA HDD power cables
• 1 I/O port bracket
• 1 Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF
file.Acrobat Reader can be downloaded at:
http://www.adobe.com/downloads/ (Acrobat is a
trademark of Adobe)
ASMB-585 Intel LGA1151 Xeon E3-1200 v5 /Core i3/i5/i7
series Micro ATX Server Board with 4 x PCIe slots, 6 x
USB3.0, 4 x GbE ports
Startup Manual
Standard SBC Functions
• CPU: Intel LGA1151 Xeon E3-1200 v5 /Core i3/i5/i7
series processors
• BIOS: AMI 128 Mb SPI BIOS
• Chipset: Intel®
C236
• System memory: Dual Channel DDR4 ECC/Non-ECC
1600/1866/2133 MHz unbuffered DIMM, Max. 64 GB
Note: Due to the inherent limitations of PC architecture,
the system may not fully detect 32 GB RAM
when 64 GB RAM is installed.
• SATA3 Interface: 7 SATA3 6Gb/s ports to support Intel
Matrix Storage with software RAID 0, 1, 10 & 5. (for
Windows only)
• Serial ports: Six serial ports, only supports RS-232
• Keyboard/Mouse connector: Supports standard PS/2
keyboard and mouse via KMBS1 pin header
• Watchdog timer: 255 level timer intervals (sec)
• USB 3.0: Supports up to Six USB 3.0 ports. Four ports
are in rear I/O, and two ports are on-board pin header.
• USB 2.0: Supports up to seven USB 2.0 ports (1* Type-A)
Display Interface
• Chipset: CPU integrated Intel HD graphics controller
• Display Memory: 1 GB maximum shared memory with 2
GB and above system memory installed
• Resolution:
- Supports RGB up to 1920 x 1200 resolution @ 60 Hz
refresh rate
- Supports DVI up to 1920 x 1200 resolution@ 60 Hz
refresh rate
Ethernet Interface
• Interface: 10/100/1000 Mbps
• Controller: LAN1:Intel
®
I219LM; LAN2 ~ LAN4: Intel®
I201AT
Mechanical and Environmental
• Dimensions (L x W): 244 x 244 mm (9.6” x 9.6”)
• Power supply voltage: +3.3 V, +5 V, ±12 V, 5 Vsb
• Power consumption: Max. load: +3.3 V @ 17.57 A, +5
V @ 20.5 A, +12 V @ 16.74 A, +12 V (8P) @ 23.27 A, +5
Vsb @ 2 A, -12 V @ 0.3 A
• Operating temperature: 0 ~ 60° C (Depends on CPU
speed and cooler solution)
• Weight: 0.5 kg (weight of board)
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/applied-computing-
systems/
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/new_de-
fault.aspx
This manual is for the ASMB-585 series Rev. A1
Part No. 2001058511
Print in China
2nd Edition,
November 2015
2 ASMB-585 Startup Manual
Connector list
AUDIO1 Audio Connector
BH2 For optional battery kit
EX_THR1 For thermometer kit
SGPIO1, SGPIO2 Serial General Purpose I/O
JFP1 Power Switch / Reset connector
JFP2
External speaker / HDD LED
connector/ SM Bus connector
JFP3
Keyboard Lock and Power LED
Suspend: Fast flash (ATX/ AT)
System On: ON (ATX/ AT)
System Off: OFF (ATX/AT)
SPDIF_OUT1 SPDIF Audio output pin header
Jumper list
Label Function
JCMOS1 CMOS clear
JME1
Intel ME Disable Jumper for ME/
BIOS update
JWDT1 Watch Dog Reset
JUSB1
Rear window USB2.0/3.0 port
power source switch between
+5 VSB and +5 V
JUSB2
On board USB2.0/3.0 port
power source switch between
+5 VSB and +5 V
CPUFAN_
SEL1,SYSFAN_SEL1
FAN PWM(1-2)/DC mode selec-
tion(2-3)
PSON1 AT(1-2) / ATX(2-3)
JCASE1 Case Open
JPEG1, JPEG2 x16 or x8x8 or x8x4x4
JGREEN1
Enable/Disable deep sleep
mode
JTHR_SEL1
To select on board or external
thermometer
The board has a number of jumpers that allow you to con-
figure your system to suit your application. The table below
lists the function of each jumper and connector.
Connector list
Label Function
ATXPWR1
ATX 24 Pin main power connec-
tor (for System)
ATX12V1
Processor power connector(for
CPU)
SATA0~6 SATA III (6Gb/s)
USB7_8, USB9_10,
USB11_12
USB 2.0 Port (Header)
USB13 USB 2.0 Port (USB Type A)
USB3_4 USB 3.0 Port (Header)
PCIEX4_SLOT4 PCIe p2-x4 slot (Gen3 p2-x4 link)
PCIEX4_SLOT5 PCIe p2-x4 slot(Gen3 p2-x1 link)
PCIEX16_SLOT6 PCIe x16 slot (Gen3 x16 link)
PCIEX4_SLOT7 PCIe p2-x4 slot(Gen3 p2-x4 link)
DIMMA0,DIMMA1,
DIMMB0,DIMMB1
DDR3 slot
CPUFAN0 CPU FAN connector
SYSFAN0,SYSFAN1,
SYSFAN2,SYSFAN3
System FAN connector
LAN1_USB1_2,
LAN2_USB5_6
LAN1 / USB 3.0 port 1, 2 stack
connector
LAN2 / USB 2.0 port 5, 6 stack
connector
LAN3_4 LAN3 & LAN4 connector
VGA1_COM1 VGA connector
DVI1_DVI2 DVI-D connector
KBMS1
External keyboard and mouse
connector(6 pin)
SPI_CN1 SPI flash card pin header
LANLED1 LAN LED extension connector
SMBUS1 SM Bus From PCH
GPIO1 8-bit GPIO header
FPAUD1 Audio front panel header
COM2, COM3_4,
COM5_6
Serial port: RS-232
LPC1
Low pin count connector for
Advantech TPM LPC and
RS232/485 modules.
VOLT1 Voltage Display
Jumpers and Connectors Jumpers and Connectors (Cont.)
ASMB-585 Startup Manual 3

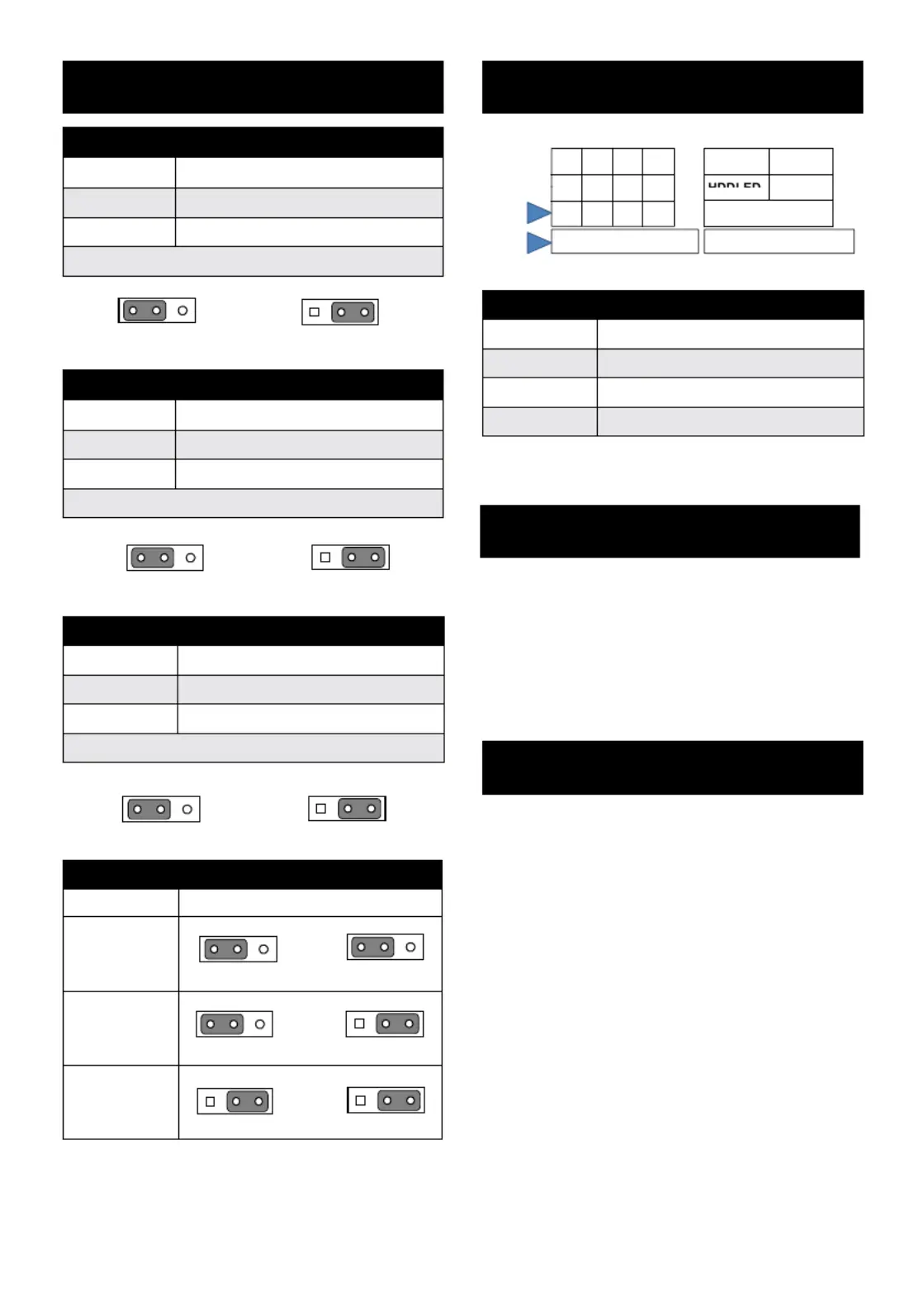

JWDT1: Watchdog timer output option
Closed Pins
Result
1-2 System reset*
2-3 NC
*: Default
PSON1: ATX, AT mode selector
Closed Pins
Result
1-2 AT Mode
2-3 ATX Mode*
*: Default
JCMOS1/JME1: CMOS clear/ME update function
Closed pins Result
1-2
Keep CMOS data/Disable ME update*
2-3 Clear CMOS data/Enable ME update
*: Default
Keep CMOS data/Disable ME update Clear CMOS data/Enable ME update
PCIEX16_Slot6 Conguration Table (JPEG2, JPEG1)
Function Jumper Setting
Slot6 PCIe p3-x16
(Default)
JPEG2 : 1 and 2 JPEG1 : 1 and 2
Slot6 PCIe
x8x8
JPEG2 : 1 and 2 JPEG1 : 2 and 3
Slot6 PCIe
x8x4x4
JPEG2 : 2 and 3 JPEG1 : 2 and 3
System Reset 1-2 Closed NC 2-3 Closed
1 32
1 32
AT Mode 1-2 closed ATX Mode 2-3 closed
1 32
1 32
1 32
1 32
1 32
1 32
1 32
1 32
1 32
1 32
JFP1, JFP2
Pin.3 #PWR_SW
Pin.6
GND
Pin.9 #RST_SW
Pin.12 GND
*Power button pin is located in Pin 3 & 6 of front panel
connector
The CD disc contains a driver installer program that will
lead you through the installation of various device drivers
needed to take full advantage of your motherboard.
The computer is supplied with a battery-powered realtime
clock circuit. There is a danger of explosion if battery is
incorrectly replaced. Replace only with same or equivalent
type recommended by the manufacturer. Discard used bat-
teries according to manufacturer’s instructions.
This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion
3 6 9 12
PWRSW RESET
SNMP
JFP1
&
1(+) 4 7 10(-)
HDDLED
SM_BUS
SPEAKER
JFP2
&
PWRLED & KEYLOCK
1 2 3 4 5JFP3
2(+) 5(-) 8 11
Jumpers and Connectors (Cont.)
Software Installation
Declaration of Conformity
Installation Note
