MIŃSK
stereo image
processor
Model of 1949
operator’s manual rev. 1949/1.1
SALUT
Thank you for purchasing this Xaoc Devices
is a stereo image pro-
cessor. It is a hybrid tool that combines digital
and analog processing to facilitate advanced
-
nal pair. It allows for separate treatment of
the mid and side components, which affects
the depth and width of the auditory scene.
of the stereo width, as well as two dimension
effects for enhancing the existing stereo im-
age or creating a faux stereo image based on
the stereo or mono input source. Because it
can eliminate out-of-phase low-end frequen-
preparation of a vinyl release or before a club
concert.
INSTALLATION
The module requires 6hp worth of free space
in the Eurorack cabinet. Before powering on,
the ribbon-type power cable included with the
module must be plugged into the bus board,
paying close attention to polarity orientation.
The red stripe indicates the negative –12v
rail and should point in the same direction on
-
ternally secured against reversed power con-
may cause serious damage to other com-
ponents of your system because it will short
pay particularly close attention to the proper
orientation of your ribbon cable on both sides!
The module should be fastened by mounting
the supplied screws before powering up. To
better understand the device, we strongly ad-
vise the user to read through the entire man-
ual before use.

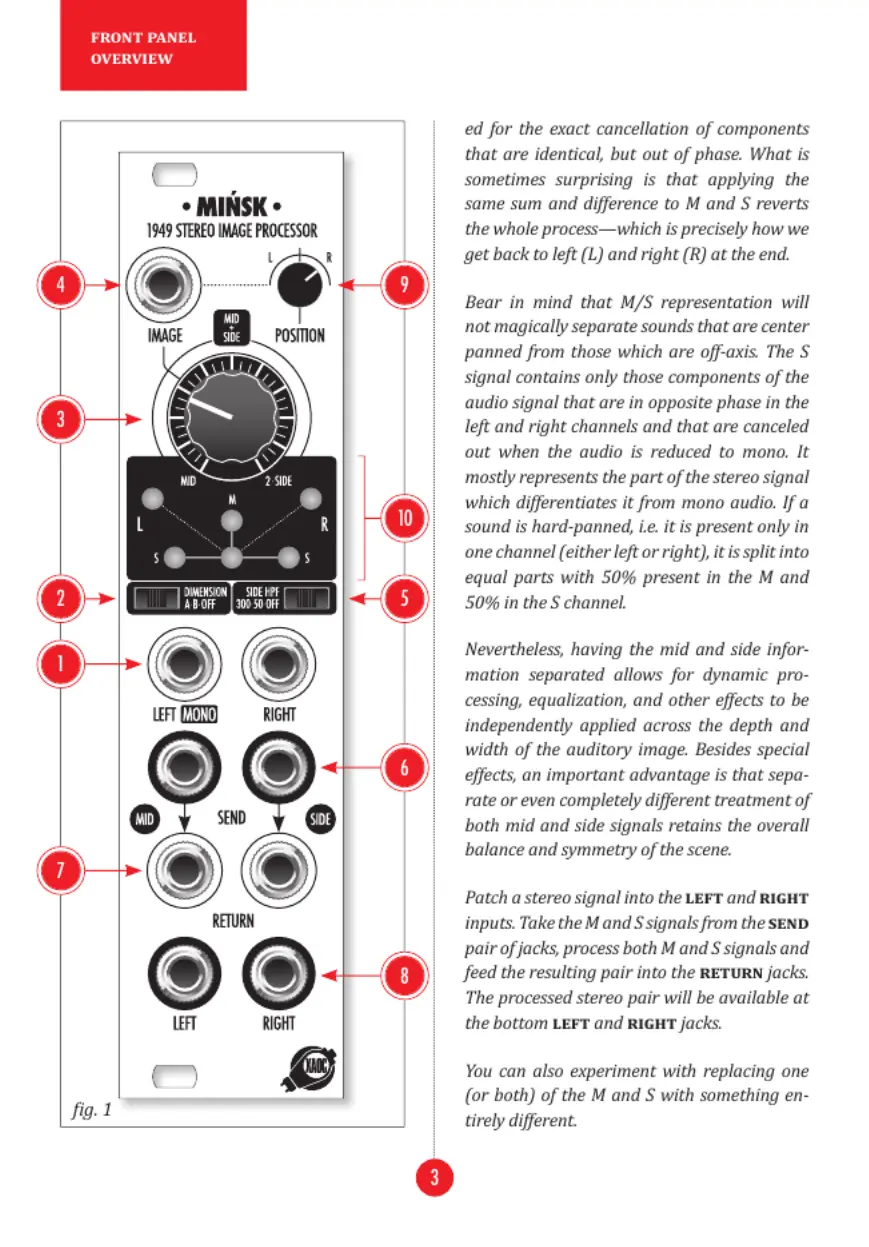

MODULE OVERVIEW
The stereo pair of signal inputs
1
is AC-cou-
pled and accepts all Eurorack signal levels
The signal pair is translated to left/right
a mid/side pair, and subject to an optional
stereo enhancement process engaged by the
3-position slider switch dimension
2
. The
width of the stereo image is controlled by the
image knob
3
and external CV patched into
the jack image
4
signal and enabled by the switch side hpf
5
. The processed and enhanced pair of mid
and side signals is available at the pair send
of jacks
6
. You can apply various external
processing to either of these and patch the
resulting signals to the jacks return
7
.
There is an internal normalization from
send to return mid return. If the and/
or jacks are left unpatched, side return
the signal from the outputs is sent send
straight to the inputs. The mid and return
side pair is converted back to normal stereo
and is available at the bottom pair of left
and jacks right
8
. The knob position
9
adjusts the and output balance. left right
A set of six LEDs arranged in a setup similar
to the traditional goniometer
10
indicates
the strength of the signal along virtual spa-
tial axes.
MID/SIDE PROCESSING
The principle of M/S processing is simple. The
M signal is obtained by a scaled sum of both
left and right signals, while the S signal is a
scaled difference of them. Precision is need-
2
module
explained
