NIN
zadar
expander
module
Model of 1973
operator’s manual rev. 1973/X/1.1
3
module
explained
SALUT
Thank you for purchasing this Xaoc Devices
product. Nin [nin] is a simple but very useful
expansion for the ever popular Zadar qua-
druple envelope generator module.
Xaoc Devices products, please visit www.
xaocdevices.com.
INSTALLATION
Mind you that pre-2019 Zadar units will re-
You can download the latest package from
www.xaocdevices.com and follow the bundled
instructions. When in doubt, please get in
touch with our support—support@xaocde-
vices.com.
Nin installation is simple, however, please

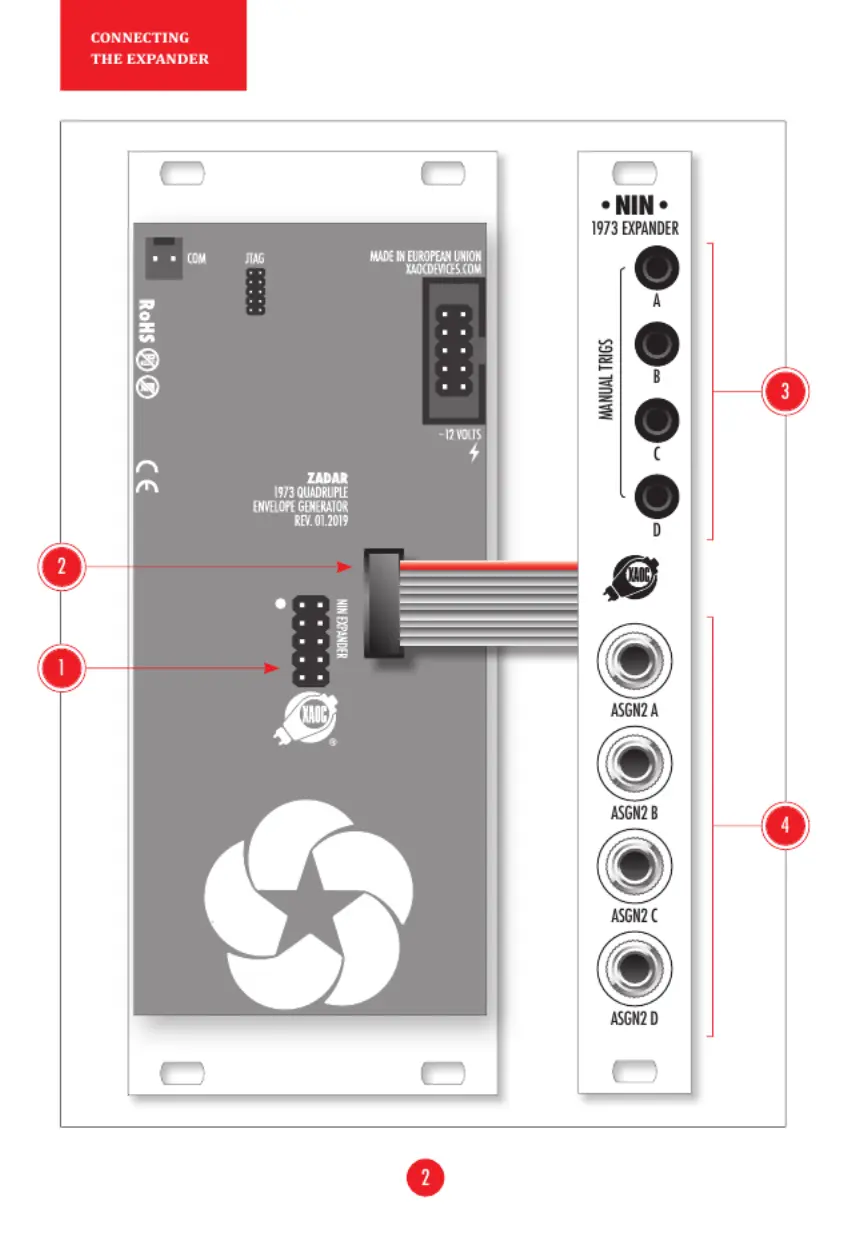

1. Find the expansion header
1
on the
back of Zadar.
2. Plug the Nin ribbon connector
2
into
the expansion header so that the red
stripe or mark points toward the white
dot printed next to the expander header.
Connecting the cable in a wrong way will
not cause any damage, but the expander
will not operate correctly.
3. After properly connecting the modules
together, carefully put them back in your
case, plug Zadar’s power connector into
the busboard and fasten using the pro-
vided screws.
Nin does not require its own power con-
nector.
4. If prompted, follow the Zadar calibra -
tion procedure steps.
caution: Be careful not to confuse the
power connector with the expansion cable!
Doing so will likely damage void the war-
ranty.
FEATURES & OPERATION
The upper section
3
consists of four tactile
buttons and that provide manual a, b, c d
gates for each of Zadar’s channels.
The buttons are useful in live performance
Most importantly, the expander features a
second set
4
of assignable control voltage
inputs for Zadar channels asgn2 a, b, c
and . It also unlocks an additional menu d
page on Zadar, allowing for the assignment
of up to two total voltage controlled pa-
rameters for each channel.
Please refer to the Zadar manual for details
about parameters and assignments.
ACCESSORY
Our Coal Mine black panels are available for
all Xaoc Devices modules. Sold separately.
Ask your favorite retailer. •
