voltage
controlled
dsp effektor
Model of 1970
operator’s manual rev. 1970/1.2
TIMISZOARA
SALUT
Thank you for purchasing this Xaoc Devices
product. Timiszoara is a stereo-
phonic, Eurorack compatible, voltage-con-
trolled multi-effect signal processor based
on the popular Spin Semiconductor FV-1
DSP chip. It features a full stereo signal path
with two adjustable audio inputs, two out-
puts, and a stereo voltage-controlled wet/
dry mixer. In addition, there is a microSD
memory card slot on the front panel that al-
lows for loading factory and custom effects
without any restrictions or copyright protec-
tion, which means you can use many effects
available on the Internet and even create
your own.
Effect programs are organized in of banks
8 and can be selected using a rotary encoder,
as well as CV and trigger signals. Timiszoara
features a crisp OLED screen that displays the
program parameters and its name. It also
facilitates navigating the list of banks. Up to
three parameters per effect can be controlled
from the front panel with illuminated slider po-
tentiometers and dedicated CV inputs.
INSTALLATION
The module requires 10hp worth of free space
in the Eurorack cabinet. Always turn the pow-
er off before plugging the module to the bus
paying close attention to power cable pinout
and orientation. The red stripe indicates the
negative rail and should match the –12v
mark on the bus board and the unit. Timiszo-
ara is internally secured against reversed
pin header may cause serious damage to
other components of your system because
it will short circuit the +12V and +5V power
lines. Always pay particularly close attention
to the proper orientation of your ribbon cable
on both sides! note: There is a second, 10-pin
header at the back of the module for connect-
ing an expander. do not plug power into
this header, as it will destroy your
module!
The module should be fastened by mounting
the supplied screws before powering up. To
better understand the device, we strongly ad-
vise the user to read through the entire man-
ual before use.
MODULE OVERVIEW
1. The OLED screen
1
and the single rotary
encoder
2
allow easy navigation between
the effect programs organized into banks
of 8. The banks are loaded from the microSD
memory card inserted into the slot
3
. During
normal operation, the screen displays the
name of the current effect and the names of
its three parameters.
Two inputs below the rotary encoder allow
for remote changing of the programs within
the bank: using continuous CV plugged to the
scan input
4
and using trigger impulses via
the next input
5
.
The left
6
and right
7
signal inputs
are associated with individual attenuators
8
and
9
used for adjusting the input level.
2
module
explained
3
front panel
overview
1
14
6
4
10
13
8 9
7
16
11
15
3
5
12

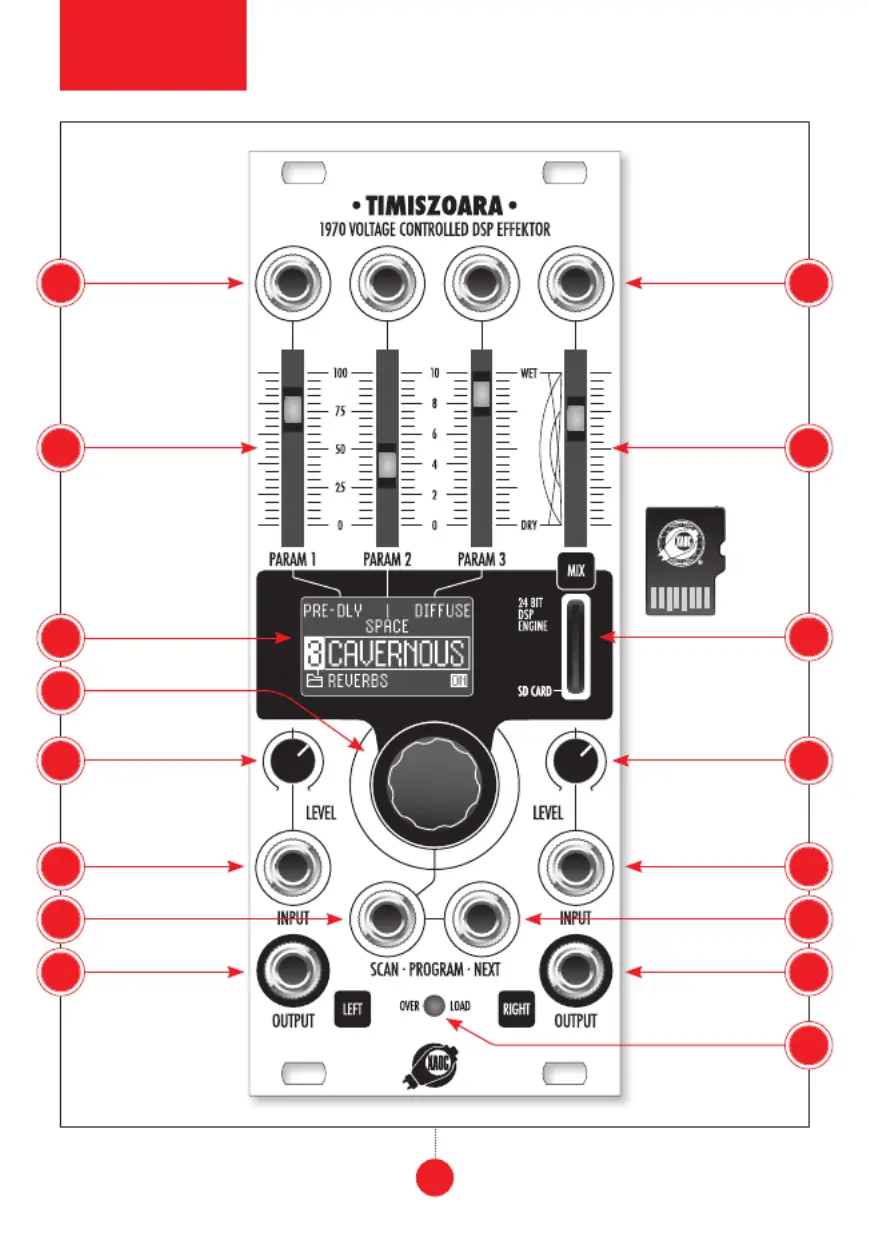

fig. 1
2
