INSTALLATION INSTRUCTION

LED DISC

FM-304

WARNING

IMPORTANT: NEVER attempt any work without shutting off the electricity.

- Read all instructions before installing.

- System is intended for installation by a qualified electrician in accordance with the National Electrical Code and local regulations.

- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or

switch ”OFF” the circuit breaker switch(es) that control the power to the fixture or room that you are working on.

- Place the wall switch in the “OFF” position.

- Supply conductors (Power Wires) Connecting the fixture must be rated minimum 90°C. If uncertain, consult an electrician.

CAUTIONS

- These luminaires (fixtures) are designed to meet the latest NEC requirements.

- Before attempting installation, check your local electrical code, as it sets the wiring standards for your locality.

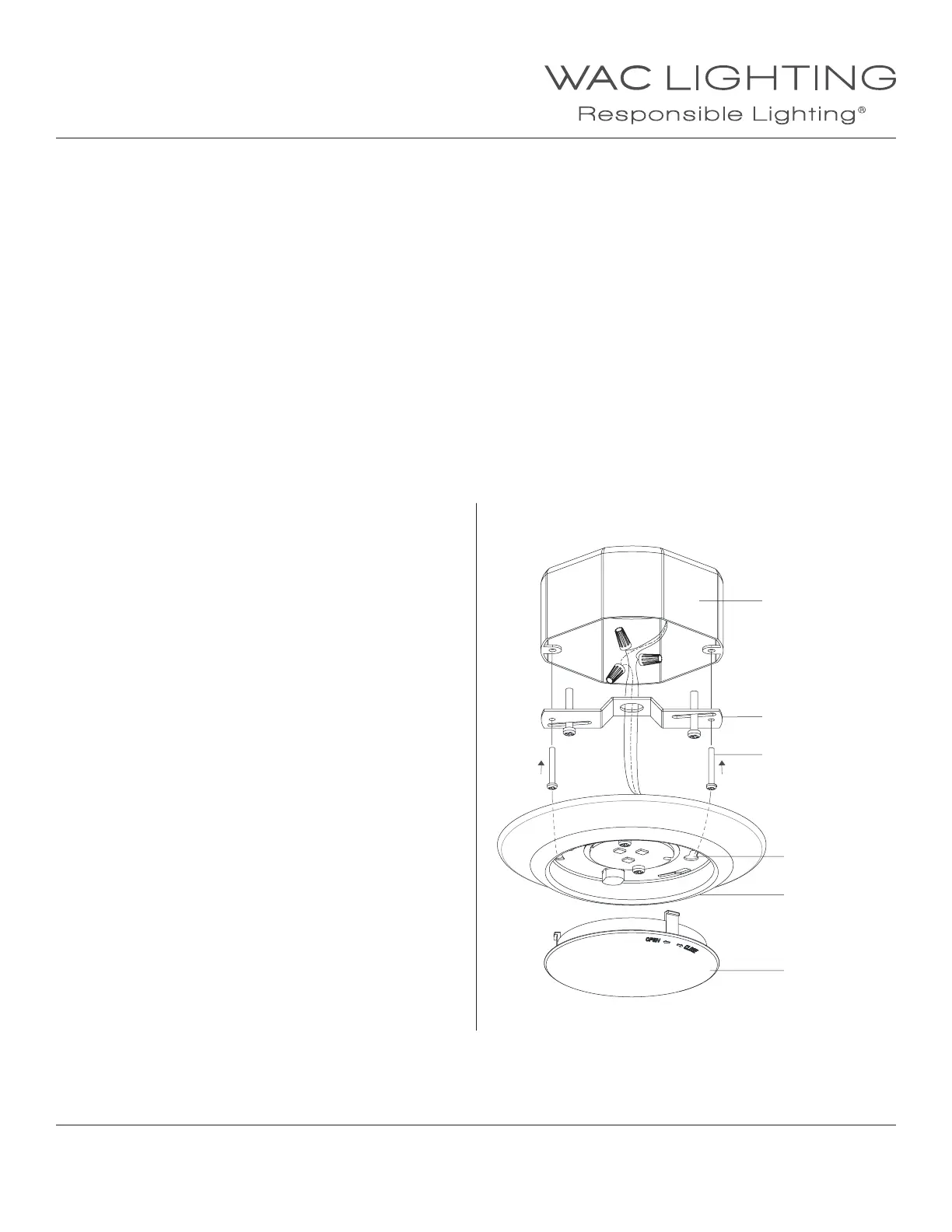

Fig. 1

1. Twist lens cover counter-clockwise to remove from Disk Light.

2. Install cross bar to the 4” junction box with junction box screw.

ELECTRICAL CONNECTION

3. Provide electrical service according to the “National Electrical

Code” or your local electrical code to the outlet box.

4. Connect supply wires to fixture wires and insulate with proper

size wire nuts (Fig 1).

a) Connect incoming ground wire (green or bare) to fixture

ground wire (green or bare).

b) Connect incoming common (white) wire to fixture common

(white).

c) Connect incoming hot (typically black) wire to fixture

black wire.

5. Attach the fixture to the cross bar and outlet box by fastening

supplied 1½” outlet box screws through canopy keyholes. Make

sure Disk Light is flush to the ceiling. (Fig. 1)

6. Twist the lens clockwise on disc light metal enclosure and lock

the lens in place.

Outlet Box (not included)

Mounted Screw

Cross bar needed only

for 4” junction box

Keyholes

Disc Light

Ground

White

Black

Lens

INSTALLATION

Over standard electrical junction box
