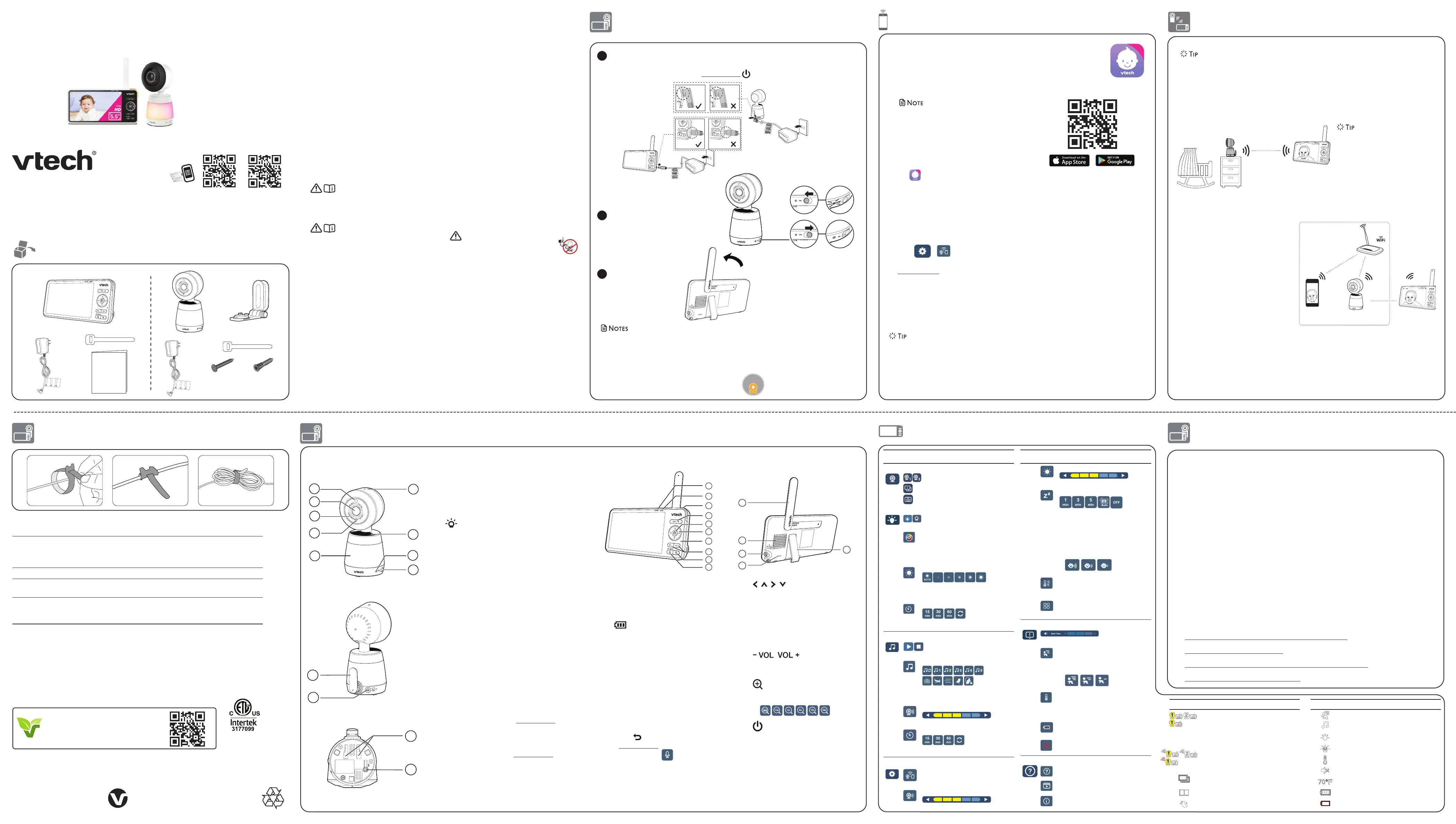

FrequencyBaby unit: 2402 - 2480 MHz (WiFi, FHSS, BLE )

Max Transmit power is 10mW (WiFi, FHSS, BLE )

Parent unit: 2406 - 2475 Mhz

Max Transmit power is 100mW

LCD5.5’’ Color LCD (IPS 1280x720 pixels)

Nominal effective rangeMaximum power allowed by FCC and IC. Actual operating range may

vary according to environmental conditions at the time of use.

Power requirementBaby unit power adapter: Output: 5V DC, 1.5A.

Parent unit power adapter: Output: 5V DC, 2A.

Parent unit battery: 3.7V 5000mAh, 18.5Wh Lithium-ion battery

Specifications are subject to change without notice.

© 2024 VTech Communications, Inc.

All rights reserved. 06/24. 345900_346000_US_QSG_V1

Technical specications

Smart HD Plus

Smart HD Plus Twin

Quick start guide

Disclaimer and Limitation of Liability

VTech Communications, Inc. and its suppliers assume no responsibility for any damage or loss resulting

from the use of this user’s manual. VTech Communications, Inc. and its suppliers assume no responsibility

for any loss or claims by third parties that may arise through the use of this product.

Company: VTech Communications, Inc.

Address: 9020 SW Washington Square Road - Ste 555 Tigard, OR 97223, United States

Phone: 1 (800) 595-9511 in the U.S. or 1 (800) 267-7377 in Canada

UL STD.

62368-1

CERTIFIED TO

CSA STD.

C22.2 NO.62368-1

CONFORMS TO

Android

TM

and Google Play

TM

are trademarks of Google Inc.

App Store is a trademark of Apple Inc., registered in the U.S. and other countries.

IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

Go towww.vtechphones.com

to register your product for

enhanced warranty support and

latest VTech product news.

For more support information

S

m

Product Recycling

Recycle this product when you are done with it.

For more information, scan the QR code

or visit vtechphones.com/recycle.

Congratulations

on purchasing your new VTech product.

Before using this baby monitor, please read the Important safety instructions.

What’s in the box

x 2

x 2

Quick start guide

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

CABLE MANAGEMENT

123

Smart HD Plus

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

Smart HD Plus

Twin

1 set for Smart HD Plus

2 sets for Smart HD Plus Twin

Model No.: 345900

Model No.: 346000

Parent unit icons

Status icons

Direct mode

Parent unit and baby unit are connected to

each other directly.

Signal strength is indicated by the signal icon(s)

on the right.

The red bar(s) indicates no connection.

Wi-Fi mode

The signal icon(s) on the left indicate the baby

unit is connected to a home Wi-Fi network. The

red icon(s) indicates no connection.

Baby unit 1 and 2 are being viewed in Patrol

mode (For Smart HD Plus Twin only).

Baby unit 1 and 2 are being viewed in Split

mode (For Smart HD Plus Twin only).

Night vision is turned on.

Status icons

Motion detection alert is turned on.

Melodies and soothing sounds are playing.

Night light is turned on.

Auto night light brightness is activated.

Temperature alert is turned on.

Parent unit is muted.

Temperature measured at baby unit.

Battery level indicator

Low battery indicator

Main

Menu

Sub-

menu

Options

Monitoring mode (For Smart HD Plus Twin only)

• View baby units in Single mode.

• View baby units in Patrol mode

(switch view every 10 seconds).

• View baby units in Split screen.

Night light

On/Off

• Toggle the night light on or off.

Color

• Select a night light color.

• Customised color is available if your

baby unit is paired with MyVTech

Baby Plus app.

Brightness

• Adjust the night light brightness.

• Set the brightness to AUTO adaptive

ambience.

Timer

• Set the timer to turn the night light off

after 15, 30 or 60 minutes, or always on.

Melodies and soothing sounds

Play/Stop

• Toggle between play and stop.

Library

• Select to play all melodies, or play one

of the five melodies or five soothing

sounds.

Camera Volume

• Adjusts baby unit speaker volume.

Timer

• Set the timer to stop playing after 15, 30

or 60 minutes, or play non-stop.

General settings

Connect to Mobile App

• Instructions for adding baby unit to

mobile app.

Camera Volume

• Adjusts baby unit speaker volume.

Main

Menu

Sub-

menu

Options

Screen Brightness

• Adjusts parent unit screen brightness.

Screen Off Timer

• Turn the screen off timer OFF, or set

the screen to turn off after 1, 3 or 5

minutes when no sound is detected.

• Select Auto to set the Sound

Sensitivity level for the screen to

auto turn on when a sound level is

detected that is higher than the set

level. The screen will turn off after 50

seconds of no sound detection.

Low Medium High

Temperature Format

• Set the temperature display format

between Celsius or Fahrenheit.

Other

• Time Settings, Reset Settings, Software

Update.

Alerts Settings

• Adjusts the alert tone volume level.

Motion Detect

• Turn the motion detection alert on/off.

• Adjust Motion Sensitivity level for

waking the parent unit screen.

Low Medium High

Temperature

• Turn the temperature alert on/off.

• Select the temperature alert maximum

and minimum temperature limits.

Low Battery

• Toggle the low battery alert on or off.

Lost Link

• Toggle the lost link alert on or off.

Help and info

Help

• Support Information

How-to Video

• Support video

System Info

• System Information

VTech cares about your privacy and peace of mind. That’s why we’ve put together a list of industry-

recommended best practices to help keep your wireless connection private and your devices

protected when online. We recommend you carefully review and consider complying with the

following tips.

Ensure your wireless connection is secure.

• Before installing a device, ensure your router’s wireless signal is encrypted by selecting the

“WPA2-PSK with AES” setting in your router’s wireless security menu.

Change default settings.

• Change your wireless router’s default wireless network name (SSID) to something unique.

• Change default passwords to unique, strong passwords. A strong password:

- Is at least 10 characters long.

- Is complex.

- Does not contain dictionary words or personal information.

- Contains a mix of uppercase letters, lowercase letters, special characters and numbers.

Keep your devices up to date.

• Download security patches from manufacturers as soon as they become available. This will

ensure you always have the latest security updates.

• If the feature is available, enable automatic updates for future releases.

Disable Universal Plug and Play (UPnP) on your router.

• UPnP enabled on a router can limit the effectiveness of your firewall by allowing other network

devices to open inbound ports without any intervention or approval from you. A virus or other

malware program could use this function to compromise security for the entire network.

For more information on wireless connections and protecting your data, please review the

following resources from industry experts:

1. Federal Communications Commission: Wireless Connections and Bluetooth Security Tips –

www.fcc.gov/consumers/guides/how-protect-yourself-online.

2. U.S. Department of Homeland Security: Before You Connect a New Computer to the Internet –

www.us-cert.gov/ncas/tips/ST15-003.

3. Federal Trade Commission: Using IP Cameras Safely –

https://www.consumer.ftc.gov/articles/0382-using-ip-cameras-safely.

4. Wi-Fi Alliance: Discover Wi-Fi Security –

http://www.wi-fi.org/discover-wi-fi/security.

Protect your privacy and online security

Download app for mobile access

Use the MyVTech Baby Plus on your mobile device to monitor your baby

remotely. Follow the instructions below to set up and pair your baby monitor

with the app.

1. Scan the QR code to download the free MyVTech Baby Plus mobile app,

or search “MyVTech Baby Plus” on App Store or Google Play Store. If you

have previously installed the app, ensure that you have the latest version.

2. Tap

P

L

U

S

P

L

U

S

to launch the mobile app on your device and create an account.

3. We recommend that you use common webmail services, such as Google Gmail, to

register your user account. Check your email (including the Spam folder) and activate

your new account by entering the email verification code. Then, sign in to your account.

4. Ensure that you are connected to a 2.4GHz Wi-Fi network and have enabled Bluetooth

and Location Service on your device.

5. After signing in to the app, select Camera(s) with Parent unit and scan the QR code

displayed on the parent unit. To find the QR code, press the MENU/SELECT button and

go to > Connect to Mobile App.

6. Input the Wi-Fi password.

7. Press and hold the pair key on the baby unit for 3 seconds until you hear the beep

sound to enter pairing mode.

8. Select the camera model that appears in the app and wait for the camera to connect.

Once connected, it will display a live view preview.

9. Select “Continue” and create a profile for your baby (Optional). Now you can start

monitoring! (For models with 2 cameras, a pop-up will ask if you wish connect another

camera. Repeat steps 7-9 for the second camera.)

P

L

U

S

P

L

U

S

• Make sure your mobile device meets the

minimum requirement for the mobile app.

Minimum requirement

The mobile app is compatible with:

• Android

TM

9.0 or later (Not compatible

with mobile devices with a 32-bit Android

operating system); and

• iOS 14 or later.

Use Camera Sharing to instantly share access to the camera. Follow these steps:

1. Go to Menu and select Camera Sharing.

2. Choose “Invite People” and enter the name and email address of the family member’s app

account.

3. The family member will receive a pop-up notification in the app and can accept the

invitation to access the camera(s).

Direct mode

Your baby monitor parent unit and baby unit connect to each other in Direct mode by default,

which allows you to immediately stream video out of the box.

You may experience reduced signal

strength if your parent unit and baby unit

are far apart, or there are obstructing

factors, such as internal walls between

them. Move the parent unit closer to the

baby unit to improve the signal strength.

Ensure the parent unit antenna is raised

for optimum reception.

Wi-Fi mode

To enhance your experience and enjoy

seamless live video streaming via your

mobile app, and to receive product

software updates (when available), we

highly recommend setting up your

monitor’s Wi-Fi connection.

It uses your 2.4GHz home Wi-Fi network

to connect your video monitor and

supports live video streaming through the

mobile app.

To stream live video remotely with your

mobile device, download and install the

MyVTech Baby Plus mobile app. With the

mobile app, your Wi-Fi router (not included) provides Internet connectivity to your HD video

monitor system. It serves as a communication channel between your baby unit and mobile

device, allowing you to monitor and/or control your baby unit wherever you are. For more

details, see Download app for mobile access section in this quick start guide.

How the system works

To receive product rmware updates, this baby monitor requires connecting to

a 2.4GHz home Wi-Fi network.

Local access

FHSS link

Mobile access

FHSS link

FHSS link

Overview

Baby unit overview

1Light sensor

2Camera lens

3Infrared LEDs

• Allow you to see clearly in a dark environment.

4Microphone

5Night light

6

Night Light Control Key

• Single Tap: Turn on/off.

• Tap and hold (with the light turned on):

Adjust night light brightness.

7Speaker

8LED indicators

Set to off by default. You can turn it on using

the app (Setting > Camera Setting > LED status).

In direct mode:

• Orange is steadily on when the baby unit is

connecting to the parent unit.

• Orange flashes slowly during video

streaming.

In Wi-Fi mode:

• Green is steadily on when the baby unit is

connected to Wi-Fi.

• Green flashes slowly during video streaming

to Wi-Fi.

9ON/OFF switch

10Antenna

• Connect to router with Wi-Fi.

11Power jack

12Wall mount slots

13Pair/reset button

• To enter pairing mode, press and hold

the PAIR key for three seconds until you

hear a beep sound. Then follow the app

instructions to connect the camera to a

2.4GHz Wi-Fi network.

• To reset the baby unit, press and hold the

PAIR key until you hear a beep sound.

Release the PAIR key and then press

and release a further five times until you

hear another beep sound. The baby unit

will emit another beep when the reset is

complete. After the beep sound, the baby

unit will reboot itself.

7

8

6

9

4

3

5

2

1

12

13

10

11

Parent unit overview

The applied nameplate is located at the bottom of the baby unit base.

When in use, basic safety precautions should always be followed

to reduce the risk of fire, electric shock and injury, including the

following:

1. Follow all warnings and instructions marked on the product.

2. Adult setup is required.

3. CAUTION: Do not install the baby unit at a height above 6.5

feet (2 meters).

4. This product is intended as an aid. It is not a substitute for

responsible and proper adult supervision and should not be

used as such.

5. This product is not intended for use as a medical monitor.

6. Do not use this product near water, for example, near to a

bath, sink, swimming pool or shower.

7. CAUTION: Use only the internally, non-user replaceable

battery fitted to the parent unit. There may be a risk of

explosion if a wrong type of battery is used for the parent

unit. The battery cannot be subjected to high or low extreme

temperature and low air pressure at high altitude during

use, storage or transportation. Disposal of batteries in fire

or a hot oven, mechanically crushing or cutting the battery

can result in an explosion. Subjecting products or batteries

to an extremely high temperture environment can result in

explosion or leakage of flammable liquids, or gas. Products or

batteries subjected to extremely low air pressures may result in

explosion or leakage of flammable liquids, or gas. Dispose of

used batteries according to the information in The RBRC seal.

8. Use only the power adapters supplied with this product.

Incorrect power adapter polarity or voltage can seriously

damage the product.

Power adapter information:

Baby Unit Output: 5V DC 1.5A

VTech Telecommunications Ltd.

Model: VT07EUS05150

Parent Unit Output: 5V DC 2A

VTech Telecommunications Ltd.

Model: VT07EUS05200

Rechargeable battery information:

3.7V 5000mAh, 18.5Wh Lithium-ion battery

Zhuhai Great Power Energy Co., Ltd.

Model: GSP806090-5Ah-3.7V-1S1P

9. The power adapter is intended to be correctly oriented in a

vertical or floor mount position. The prongs are not designed

to hold the plug in place if it is plugged into a ceiling, under-

the-table or cabinet outlet.

10. For pluggable equipment, the socket-outlet (power adapter)

should be installed near the equipment and should be easily

accessible.

11. Unplug this product from the wall outlet before cleaning.

Do not use liquid or aerosol cleaners. Use a damp cloth for

cleaning.

12. Do not modify the power adaptors or replace with other third-

party adaptors.

13. Do not allow anything to rest on the power cords. Do not

install this product where the cords may be walked on or

damaged.

14. The product should only be operated from a power source

indicated on the power adaptor label or marking. If you are

unsure of the type of power supply in your home, consult your

dealer or electricity supply provider.

15. Do not overload wall outlets or use an extension cord.

16. Do not place this product on an unstable table, shelf, stand or

other unstable surfaces.

17. This product should not be placed in any area where proper

ventilation is not provided. Any slots or openings in the back

or bottom of this product are provided for ventilation. To

protect from overheating, openings must not be blocked

by placing the product on a soft surface such as a bed, sofa

or rug. This product should never be placed near or over a

radiator or heat source.

18. Never insert any objects through any aperatures or slots in the

product as this can be dangerous and cause damage to the

battery or other internal parts. Never spill any liquids on the

product.

19. To reduce the risk of electric shock, do not disassemble

this product, but take it to an authorized service facility.

Disassembling or removing parts of the product other than

battery replacement via a battery door (if applicable) may

expose dangerous voltages or other risks.

20. You should test the sound reception every time you turn on

the units or move one of the components.

21. Periodically examine all components for damage.

22. There is a very low risk of privacy loss when using certain

electronic devices, such as baby monitors, cordless

telephones, etc. To protect your privacy, make sure the

product has never been used before purchase, reset the baby

monitor periodically by powering off and then powering

on the units, and power off the baby monitor if you are not

intending to use it for some time.

23. Children should be supervised to ensure that they do not play

with the product.

24. The small parts of this monitor can be swallowed by babies or

small children. Keep these parts out of reach of children.

25. The product is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have

been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

SAVE THESE INSTRUCTIONS

Cautions

• Use and store the product at a temperature between 32

o

F

(0

o

C) and 104

o

F (40

o

C).

• Mishandling batteries can cause burn, fire or explosion

hazards.

• Batteries should not be exposed to excessive heat such as

bright sunshine or fire.

• Do not expose the product to extreme cold, heat or direct

sunlight. Do not place the product close to a heating source.

• Warning—Strangulation Hazard—Children

have STRANGLED in cords. Keep this cord out of

the reach of children (more than 3 ft (0.9m) away).

Do not remove warning label on the adapter cord.

• Never place the camera unit(s) inside the baby’s crib or

playpen. Never cover the camera unit(s) or parent unit with

anything such as a towel or a blanket.

• Other electronic products can cause interference to your

parent unit and baby unit. Try installing your baby unit as

far away as possible from the following electronic devices:

wireless routers, radios, mobile telephones, intercoms, room

monitors, televisions, personal computers, kitchen appliances

(e.g. microwave ovens) and cordless telephones.

Precautions for users of implanted cardiac pacemakers

Cardiac pacemakers (applies only to digital cordless devices):

Wireless Technology Research, LLC (WTR), an independent

research entity, led a multidisciplinary evaluation of the

interference between portable wireless devices and implanted

cardiac pacemakers. Supported by the U.S. Food and Drug

Administration, WTR recommends to physicians that:

Pacemaker patients

• Should keep wireless devices at least six inches from the

pacemaker.

• Should NOT place wireless devices directly over the

pacemaker, such as in a breast pocket, when it is turned ON.

WTR’s evaluation did not identify any risk to bystanders with

pacemakers from other persons using wireless devices.

Electromagnetic elds (EMF)

This VTech product complies with all standards regarding

electromagnetic fields (EMF). If handled properly and according

to the instructions in this user’s manual, the product is safe to be

used based on scientific evidence available today.

Important safety instructions

Connect, charge and power on the baby

monitor

Connect the parent unit and baby unit to the adapter and mains supply.

The parent unit turns on automatically after connecting to the power socket, and the

welcome screen appears. You can press and hold to turn it on or off.

1

For optimum reception,

always raise the parent unit

antenna.

Slide the ON/OFF switch leftward to

power on your baby unit.

2

3

WARM

WARM

• Please peel off the lens/screen protector before use.

• Charge the parent unit battery before use.

• When powering up, the baby unit’s orange status LED turns on. It will

turn off after a while and remain off if the status LED is set to off.

• The status LED is set to off by default. You can turn it on using the app

(Setting > Camera Setting > LED status).

• The baby unit may get warm during use. This is normal.

2

1

3

4

5

6

7

8

9

10

14

15

13

12

11

7

8

6

9

4

3

5

2

1

12

13

10

11

7

8

6

9

4

3

5

2

1

12

13

10

11

1LINK LED Light

• On when the parent unit is linked to

the baby unit.

• Flashes when the link to the baby

unit is lost.

2

LED light

• On when the parent unit is

connected to AC power, and the

battery is charging.

• Flashes when the parent unit battery

is low and needs to be charged.

33 - Level Sound Indicator Light

The lights indicate different sound levels

detected from the baby unit.

• Green light: low sound level.

• Green and amber lights: moderate

sound level.

• Green, amber, and red lights: high

sound level.

4

TALK /

• Press and hold to talk through the

baby unit when displays on

screen.

• While in a sub-menu, press to exit.

5MENU

|

SELECT

• Press to enter the main menu.

• While in a menu, press to choose an

item, or save a setting.

6

|

|

|

Arrow keys

• Press to navigate leftward, upward,

rightward or downward, within the

main menu and sub-menus.

• Press to move the baby unit camera

leftward, rightward, upward or

downward.

7Microphone

8

|

• Increase,decrease or mute the

parent unit volume.

9

Zoom

• Press to zoom in/out to different

levels.

10

Power

|

LCD ON/OFF

11Antenna

12Speaker

13Power Jack

14RESET

• Force reboot the parent unit.

15Stand

Product specificaties
