Connect the baby monitor

2

Power on or off the baby monitor

What’s in the box

Basic operation - Parent unit

Overview - Parent unit

Overview - Baby unit

Frequency controlCrystal controlled PLL synthesizer

Transmit frequencyBaby unit: 2405 - 2475 MHz

Parent unit: 2405 - 2475 MHz

Channels32

LCD5” Color LCD

(WQVGA 480x272 pixel)

Nominal effective rangeMaximum power allowed by FCC and IC. Actual operating range may

vary according to environmental conditions at the time of use.

Power requirementsParent unit: 3.8V Li-ion battery

Baby unit power adapter: Output: 5V DC @ 1000mA

Parent unit power adapter: Output: 5V DC @ 1A

Technical specications

Credits:

The Background Noise sound file was created by Caroline Ford,

and is used under the Creative Commons license.

The Stream Noise sound file was created by Caroline Ford, and is

used under the Creative Commons license.

The Crickets At Night sound file was created by Mike Koenig, and

is used under the Creative Commons license.

The Heart Beat sound file was created by Zarabadeu, and is used

under the Creative Commons license.

The applied nameplate is located at the bottom of the baby unit’s

base.

When using your equipment, basic safety precautions should

always be followed to reduce the risk of fire, electric shock and

injury, including the following:

1. Follow all warnings and instructions marked on the product.

2. Adult setup is required.

3. CAUTION: Do not install the baby unit at a height above 6.5

feet (2 meters).

4. This product is intended as an aid. It is not a substitute for

responsible and proper adult supervision and should not be

used as such.

5. This product is not intended for use as a medical monitor.

6. Do not use this product near water, for example, near to a

bath, sink, swimming pool or shower.

7. CAUTION: Use only the battery provided (if applicable). There

may be a risk of explosion if a wrong type of battery is used

for the parent unit. The battery cannot be subjected to high or

low extreme temperature and low air pressure at high altitude

during use, storage or transportation. Disposal of battery in

fire or a hot oven, mechanically crushing or cutting the battery

can result in an explosion. Leaving the battery in an extremely

high temperature surrounding environment can result in an

explosion or the leakage of flammable liquid of gas. Battery

subjected to extremely low air pressure may result in an ex-

plosion or the leakage of flammable liquid or gas. Dispose of

used battery according to the information inThe RBRC seal.

8. Use only the power adapters included with this product.

Incorrect power adapter polarity or voltage can seriously

damage the product.

Power adapter information:

Parent unit output: 5V DC 1A

VTech Telecommunications Ltd.

Model: VT05EUS05100

Baby unit output: 5V DC 1000mA.

VTech Telecommunications Ltd.

Model: VT05EUS05100

Rechargeable battery information:

Li-ion battery, 3.8V 2100mAh

Zhongshan Tianmao Battery Co., Ltd.

Model Number: BP1763

9. The power adapter is intended to be correctly oriented in a

vertical or floor mount position. The prongs are not designed

to hold the plug in place if it is plugged into a ceiling, un-

der-the-table or cabinet outlet.

10. For pluggable equipment, the socket-outlet (power adapter)

should be installed near the equipment and should be easily

accessible.

11. Unplug this product from the wall outlet before cleaning.

Do not use liquid or aerosol cleaners. Use a damp cloth for

cleaning.

12. Do not modify the power adapters or replace with other

adapters, as this causes a hazardous situation.

13. Do not allow anything to rest on the power cords. Do not

install this product where the cords may be walked on or

crimped.

14. This product should be operated only from the type of

power source indicated on the marking label. If you are not

sure of the type of power supply in your home, consult your

dealer or electricity supply provider.

15. Do not overload wall outlets or use an extension cord.

16. Do not place this product on an unstable table, shelf, stand or

other unstable surfaces.

17. This product should not be placed in any area where proper

ventilation is not provided. Slots and openings in the back

or bottom of this product are provided for ventilation. To

protect them from overheating, these openings must not be

blocked by placing the product on a soft surface such as a

bed, sofa or rug. This product should never be placed near

or over a radiator or heat source.

18. Never push objects of any kind into this product through the

slots because they may touch dangerous voltage points or cre-

ate a short circuit. Never spill liquid of any kind on the product.

19. To reduce the risk of electric shock, do not disassemble this

product, but take it to an authorized service facility. Disas-

sembling or removing parts of the product other than via the

battery door (if applicable) may expose you to dangerous

voltages or other risks. Incorrect reassembling can cause

electric shock when the product is subsequently used.

20. You should test the sound reception every time you turn on

the units or move one of the components.

21. Periodically examine all components for damage.

22. There is a very low risk of privacy loss when using certain

electronic devices, such as baby monitors, cordless tele-

phones, etc. To protect your privacy, make sure the product

has never been used before purchase, reset the baby

monitor periodically by powering off and then powering

on the units, and power off the baby monitor if you are not

intending to use it for some time.

23. Children should be supervised to ensure that they do not

play with the product.

24. The small parts of this monitor can be swallowed by babies or

small children. Keep these parts out of reach of children.

25. The product is not intended for use by persons (including

children) with reduced physical, sensory or mental capabili-

ties, or lack of experience and knowledge, unless they have

been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

SAVE THESE INSTRUCTIONS

Cautions

• Use and store the product at a temperature between 32

o

F

(0

o

C) and 104

o

F (40

o

C).

• Mishandling batteries can cause burn, fire or explosion

hazards.

• Batteries should not be exposed to excessive heat such as

bright sunshine or fire.

• Do not expose the product to extreme cold, heat or direct

sunlight. Do not put the product close to a heating source.

• Warning—Strangulation Hazard—Chil-

dren have STRANGLED in cords. Keep this

cord out of the reach of children (more than

3 ft (0.9m) away). Do not remove warning

label on the adapter cord.

• Never place the camera unit(s) inside the baby’s crib or

playpen. Never cover the camera unit(s) or parent unit with

anything such as a towel or a blanket.

• Other electronic products may cause interference with your

camera unit. Try installing your camera unit as far away from

these electronic devices as possible: wireless routers, radios,

cellular telephones, intercoms, room monitors, televisions,

personal computers, kitchen appliances and cordless tele-

phones.

Precautions for users of implanted cardiac pacemakers

Cardiac pacemakers (applies only to digital cordless devices):

Wireless Technology Research, LLC (WTR), an independent

research entity, led a multidisciplinary evaluation of the

interference between portable wireless devices and implanted

cardiac pacemakers. Supported by the U.S. Food and Drug

Administration, WTR recommends to physicians that:

Pacemaker patients

• Should keep wireless devices at least six inches from the

pacemaker.

• Should NOT place wireless devices directly over the

pacemaker, such as in a breast pocket, when it is turned ON.

WTR’s evaluation did not identify any risk to bystanders with

pacemakers from other persons using wireless devices.

Electromagnetic elds (EMF)

This VTech product complies with all standards regarding

electromagnetic fields (EMF). If handled properly and according

to the instructions in this user’s manual, the product is safe to be

used based on scientific evidence available today.

Important safety instructions

1

2

14

4

5

6

7

8

3

10

11

12

13

9

1

2

14

4

5

6

7

8

3

10

11

12

13

9

1LED lights

2LCD display

3Microphone

4POWER

5TALK

6MENU/SELECT

7Arrow keys

• While viewing image

from the camera

unit, press and hold

to pan the camera

unit leftward or

rightward.

8

| (Volume)

9VIEW /LCD ON/OFF

10

/EXIT

11Antenna

12RESET

• Force reboot the

parent unit.

13Stand

14Power jack

1Light sensor

2Camera

3

Gloss lens

4

Microphone

5

Night light

6ON/OFF switch

7POWER LED light

• On when the baby unit is turned on

and is paired to the parent unit.

• Flashes when the baby unit is not

being viewed; or when the link to

the parent unit is lost.

8Speaker

9

Night light

• Turn On/Off and switch between

seven colors of night light.

10

Power jack

11

Pair key

• Your parent unit and baby unit(s)

provided are already paired.

12

Temperature sensor

13

Slots for wall mounting

Need help?

VM5255

VM5255-2

Remote Pan and

Manual Tilt

Video Baby Monitor

Go to www.vtechphones.com

to register your product for enhanced

warranty support and the latest VTech

product news.

NOTESNOTE

• The rechargeable battery in the parent unit is built-in.

• Use only the power adapters supplied with this product.

• Make sure the baby monitor is not connected to a switch-controlled electric outlet.

• Connect the power adapters in a vertical or floor mount position only. The adapters’ prongs are not

designed to hold the weight of baby monitor, so do not connect them to any ceiling, under-the-table,

or cabinet outlets. Otherwise, the adapters may not properly connect to the outlets.

• Make sure the parent unit, the baby units and the power adapter cords are out of reach of children.

Slide the ON/OFF switchto power

on or off your baby unit.

Press and hold POWER to power on or off

your parent unit.

Adjust speaker volume

Press / to adjust your parent unit

speaker volume.

Zoom

Press to zoom in or out.

Talk to your baby unit

Press and hold TALK and speak to your

parent unit. Your voice is transmitted to

the baby unit. Release TALK when finish

talking and hear your baby again.

63ē

Turn off the screen

Press and hold LCD ON/OFF to switch off

the screen. You can still hear sound from the

baby unit.

Tip

• Press any keys on the parent unit to turn on the

screen again.

Press and hold

Use the menu

Press to enter the menu, choose a menu item, or save a

setting. You can use the parent unit for advanced settings or

operations, such as to play or stop the baby unit’s lullaby, or to

adjust the baby unit’s sound sensitivity.

While in the menu:

• Press or to scroll among the menu options.

• Press to select an item, or to save a setting.

• Press or to scroll among the sub-menus,

or to adjust a setting.

• Press to return to the previous menu options without

changing the current setting.

• Press /EXIT to return to live video.

26

1 set for VM5255

2 sets for VM5255-2

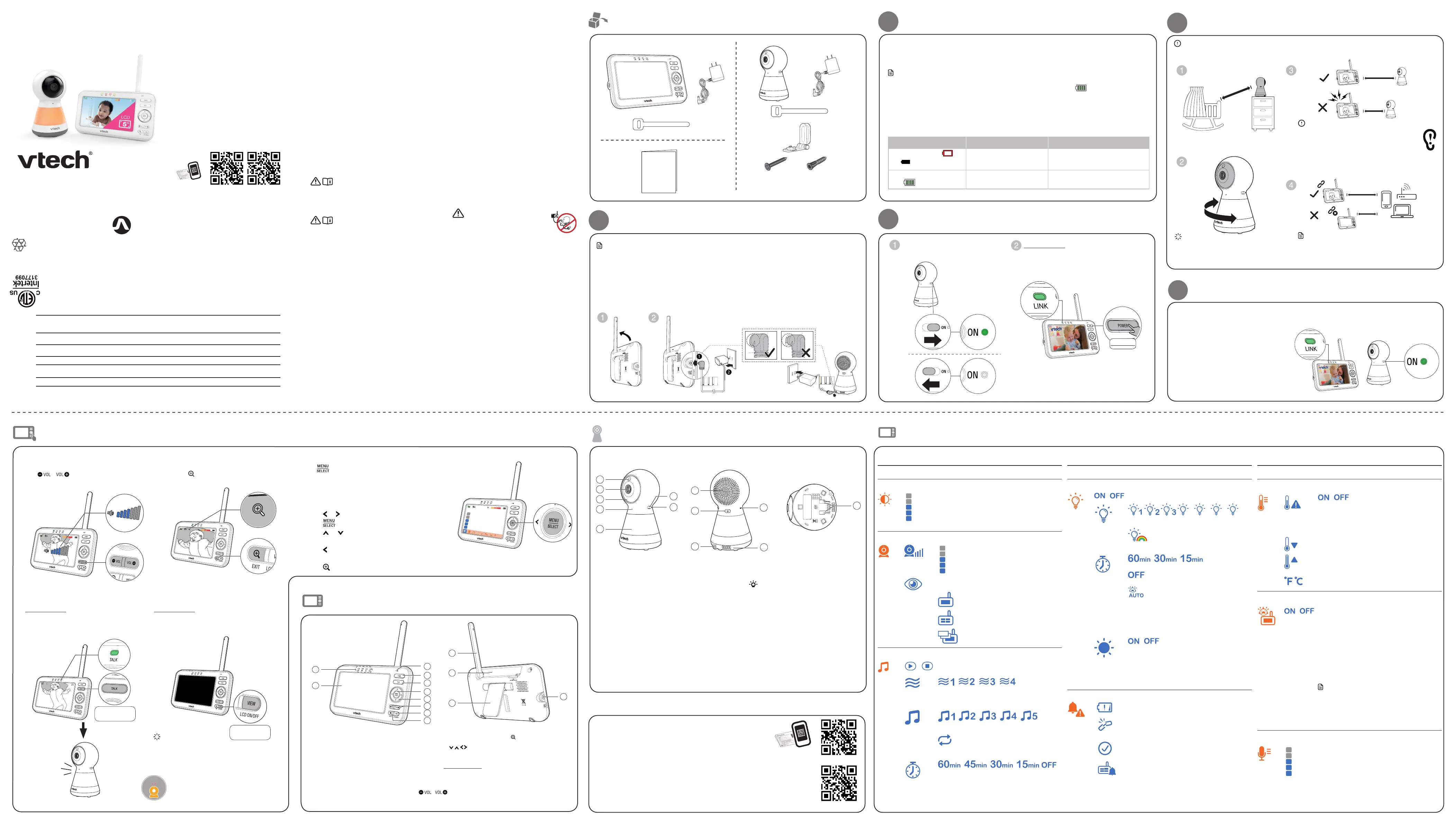

Quick start guide

x 2

x 2

4

Status check

3

Positioning the baby monitor

Caution

• The default volume of your parent unit is level

4, and the maximum volume is level 7. If you

experience high-pitched screeching noise from

your baby monitor while positioning:

-Make sure your baby unit and parent unit are

more than 3 feet (1 meter) apart, OR

-Lower the volume of your parent unit.

NOTESNOTE

Note

• To avoid interference from other electronic devices,

place your baby monitor at least 3 feet (1 meter) away

from devices such as wireless routers, microwaves,

cell phones and computers.

Once you power on both your baby unit and parent unit, your parent unit displays image

from the baby unit, and the LINK LED light turns on.

The ON LED light of baby unit turns on.

Parent unit icons

Main

menu

Sub-menu

Brightness

• Adjust the parent unit’s LCD brightness.

Camera settings

Baby unit speaker volume

• Adjust the baby unit’s speaker

volume.

Monitoring mode (For VM5255-2 only)

• Single mode

• Split mode

• Patrol mode

Lullaby

/

Play/Stop lullaby

• Select one of the soothing sounds, or

white noise.

• Select one of the five melodies.

• Play all melodies.

• Set timer to stop playing the selected

melody or soothing sound.

Main

menu

Sub-menu

Night light

/

Turn on/off night light

4

5

6

7

• Select one of the night light colors.

• Change to all seven colors in cycles.

• Set timer to turn the night light off.

• Select to set the night light to always on.

• Set to auto turn on the night light when

baby unit detects sound. It will turn off after

15 minutes of no sound detection. You can

set VOX sensitivity level to detect sounds

that exceed certain levels. See Sound

sensitivity and sound activation section.

A

/

• Turn on/off the adaptive night light

feature. When this feature is on, the

baby unit detects the ambient light.

If the room is bright, the night light

adjusts itself to be brighter; if the room

is dim, the night light adjusts itself to be

dimmer.

Alert tones

• Set the parent unit to beep when the

battery is low.

• Set the parent unit to beep when the link

between the parent unit and the baby

unit is lost.

• Set the confirmation tone on or off when

selecting an option in the menus.

• Set the parent unit to beep when the baby

unit detects sounds while in Split mode

(For VM5255-2 only).

Main

menu

Sub-menu

Temperature

/

• Turn on/off temperature alert tone.

• Set the parent unit to beep whenever the

room temperature detected by the baby

unit falls outside of the set temperature

range.

• Set the minimum temperature.

• Set the maximum temperature.

• Set temperature display in Fahrenheit (

o

F)

or Celsius (

o

C).

Sound activation - screen and audio

/

Turn on/off sound activation

• Set sound activation on or off.

• When it is on, and the baby unit detects

no sound, the parent unit screen stays off

to save power. Once a sound is detected,

the parent unit screen and speaker turns

on automatically, and you can see and

hear your baby. The parent unit will then

turn off again after 50 seconds of no

sound detection.

NOTESNOTE

Note

• When the parent unit screen is off and

it receives alerts, for example, link lost

between parent unit and baby unit, or

battery is low, the parent unit screen and

speaker will turn on for 10 seconds.

VOX (Voice Activated Alert) Sensitivity

• You can set VOX sensitivity levels to

activate parent unit screen and sound

when baby unit detects sounds that

exceed certain levels. See Sound

sensitivity and sound activation section.

Main menu icons

26

26

≥

<

3ft (1m)

3ft (1m)

63ē

﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏

﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏

Specifications are subject to change without notice.

© 2023 VTech Communications, Inc. All rights reserved.

10/23. VM5255-X_QSG_V2.

For operations and guides to help you use your video monitor, and for

the latest information and support, check out our online help topics

and online FAQs.

Use your smartphone or mobile device to access our online help.

• Go to https://help.vtechphones.com/vm5255 or

https://help.vtechphones.com/vm5255-2; OR

• Scan the QR code on the right. Launch the camera app or QR code scanner app on

your smartphone or tablet. Hold the device’s camera up to the QR code and frame

it. Tap the notification to be redirected to the online help page.

-If the QR code is not clearly displayed, adjust your camera’s focus by moving

your device closer or further away until it is clear.

You can also call our Customer Support at 1 (800) 595-9511 [in US] or

1 (800) 267-7377 [in Canada] for help.

VM5255

S

m

VM5255-2

Caution

• Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the

baby’s crib or playpen.

Disclaimer and Limitation of Liability

VTech Communications, Inc. and its suppliers assume no responsibility for any damage or loss

resulting from the use of this user’s manual. VTech Communications, Inc. and its suppliers assume no

responsibility for any loss or claims by third parties that may arise through the use of this product.

Company: VTech Communications, Inc.

Address: 9020 SW Washington Square Road - Ste 555 Tigard, OR 97223, United States

Phone: 1 (800) 595-9511 in the U.S. or 1 (800) 267-7377 in Canada

Quick start guide

VM5255

VM5255-2

For more support information:

S

m

> 3ft (1m)

>

<

3ft (1m)

3ft (1m)

63ē

63ē

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away f

rom the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcanc

e

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

6

8

9

10

11

13

3

4

5

2

1

7

12

Press and hold

1

Connect the baby monitor (cont’d)

Charge the parent unit battery

When you have connected and turned on the parent unit, the battery will be charged

automatically.

NOTESNOTE

Notes

• Before using the baby monitor for the first time, charge the parent unit battery for 12 hours. When

the parent unit battery is fully charged, the battery icon becomes solid .

• It takes longer to charge the battery when the parent unit is turned on. To shorten the charging time,

turn the parent unit off while charging.

• The standby time varies depending on the sensitivity level you set, your actual use and the age of

the battery.

The battery icon indicates the battery status (see the following table).

Battery indicatorsBattery statusAction

The screen displays .

The light flashes.

The battery has very little

charge and may be used for

only a short time.

Charge

without interruption

(about

30 minutes).

The battery icon becomes

solid .

The battery is fully charged.To keep the battery charged, connect

it to AC power when in use.

UL STD.

62368-1

CERTIFIED TO

CSA STD.

C22.2 NO.62368-1

CONFORMS TO

Tip

• You can manually tilt the camera angle up

and down by pushing the lens portion

upwards or downwards.

NOTE:

Camera lens and surface may get warm

during normal operation.

WARM

WARM

Press and hold

Product specificaties
