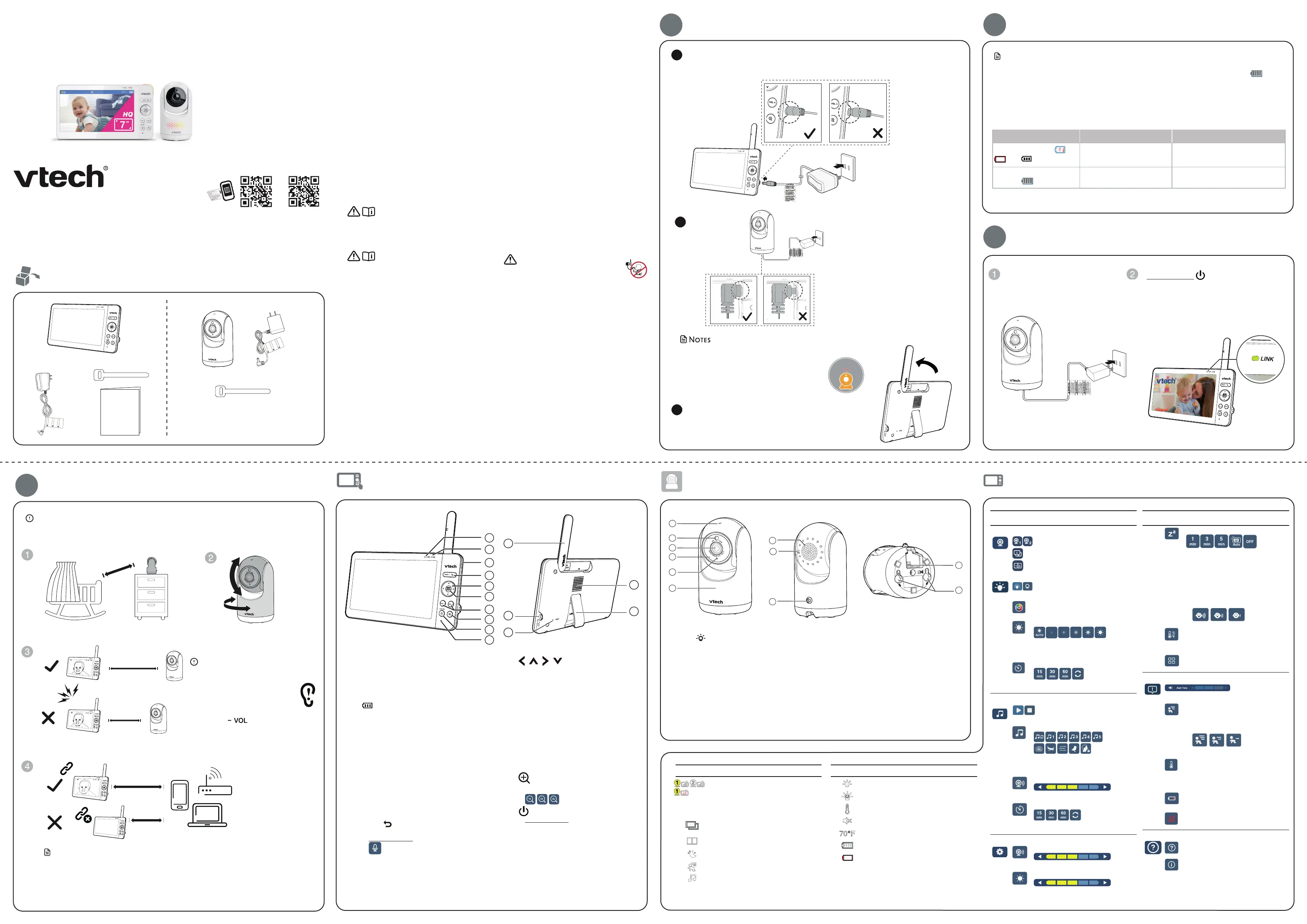

VTech Advanced HQ Max Twin Handleiding

Bekijk gratis de handleiding van VTech Advanced HQ Max Twin (2 pagina’s), behorend tot de categorie Babyfoon. Deze gids werd als nuttig beoordeeld door 2 mensen en kreeg gemiddeld 4.8 sterren uit 8 reviews. Heb je een vraag over VTech Advanced HQ Max Twin of wil je andere gebruikers van dit product iets vragen? Stel een vraag

1

Connect the baby monitor

1

Connect the baby monitor (cont’d)

2

Power on or off the baby monitor

Connect the baby unitto a power

supply to turn it on. Disconnect the

baby unit to turn it off.

Press and hold to power on or off your

parent unit.

Once you power on both your baby unit

and parent unit, your parent unit displays

images from the baby unit, and the LINK

LED light turns on.

• Peel off the lens/screen protector before use.

• The baby unit may get warm during use. This is

normal.

For optimum reception, always raise the parent unit

antenna.

Connect the parent unit and baby unit to the supplied adapters and mains supply.

The parent unit will turn on automatically after connecting to the power socket.

1

2

3

WARM

WARM

NOTESNOTE

Notes

• Before using the baby monitor for the first time, charge the parent unit battery for 12 hours.

When the parent unit battery is fully charged, the battery icon segments become solid

.

• It takes longer to charge the battery when the parent unit is turned on. To shorten the charging

time, turn the parent unit off while charging.

• The standby time varies depending on the sensitivity level you set, your actual use and the age of

the battery.

The battery icon indicates the battery status (see the following table).

Battery indicatorsBattery statusAction

The screen displays and

. The light flashes.

The battery has very little

charge and may be used for

only a short time.

Charge

without interruption

(about

30 minutes).

The battery icon segments

are solid .

The battery is fully charged.To keep the battery charged, connect

it to AC power when in use.

Main

Menu

Sub-

menu

Options

Monitoring mode (For Advanced HQ Max Twin only)

• View baby units in Single mode.

• View baby units in Patrol mode

(switch view every 10 seconds).

• View baby units in Split screen.

Night light

On/Off

• Toggle the night light on or off.

Color

• Select one of the 10 night light colors.

Brightness

• Adjust the night light brightness.

• Set the brightness to AUTO adaptive

ambience.

Timer

• Set the timer to turn the night light off

after 15, 30 or 60 minutes, or always on.

Melodies and soothing sounds

Play/Stop

• Toggle between play and stop.

Library

• Select to play all melodies, or play one

of the five melodies or five soothing

sounds.

Camera Volume

• Adjusts baby unit speaker volume.

Timer

• Set the timer to stop playing after 15, 30

or 60 minutes, or play non-stop.

General settings

Camera Volume

• Adjusts baby unit speaker volume.

Screen Brightness

• Adjusts parent unit screen brightness.

Main

Menu

Sub-

menu

Options

Screen Off Timer

• Turn the screen off timer OFF, or set

the screen to turn off after 1, 3 or 5

minutes when no sound is detected.

• Select AUTO to set the Sound Sensitivity

level for the screen to auto turn on

when a sound level is detected that is

higher than the set level. The screen will

turn off after 50 seconds of no sound

detection.

Temperature Format

• Set the temperature display format

between Celsius or Fahrenheit.

Other

• Reset settings

Alerts Settings

• Adjusts the alert tone volume level.

Motion Detect

• Turn the motion detection alert on/off.

• Adjust Motion Sensitivity level for

waking the parent unit screen.

Low Medium High

Temperature

• Turn the temperature alert on/off.

• Select the temperature alert maximum

and minimum temperature limits.

Low Battery

• Toggle the low battery alert on or off.

Lost Link

• Toggle the lost link alert on or off.

Help and info

Help

• Support Information

System Info

• System Information

Parent unit icons

Overview - Baby unit

1

Night Light Control Key

• Tap to turn on/off the night light.

2Light Sensor

3Camera lens

4Infrared LEDs

• Allows you to see clearly in a dark

environment.

5Microphone

6Night light

7Speaker

8PAIR key

• The parent unit and baby unit

provided are already paired.

9Temperature sensor

10Power jack

11Slots for wall mounting

1LINK LED light

• On when the parent unit is linked to the

baby unit.

• Flashes when the link to the baby unit

is lost.

2

LED light

• On when the parent unit is connected

to AC power, and the battery is

charging.

• Flashes when the parent unit battery is

low and needs to be charged.

33- level sound indicator light

The lights indicate different sound levels

detected from the baby unit.

• Green light: low sound level.

• Green and amber lights: moderate

sound level.

• Green, amber, and red lights: high

sound level.

4

TALK /

• Press and hold to talk to the baby unit.

is displayed on screen while the

button is pressed.

• While in a sub-menu, press to exit.

5

|

|

|

Arrow keys

• Press to navigate leftward, upward,

rightward or downward, within the

main menu and sub-menus.

• Press to move the baby unit camera

leftward, rightward, upward or

downward.

6MENU/SELECT

• Press to enter the main menu.

• While in a menu, press to confirm a

selection, or save a setting.

7- VOL/ VOL +

• Increase or decrease parent unit

volume.

8

Zoom

• Press to zoom in/out to different levels.

9

Power

|

LCD OFF

• Press and hold to turn on/off the power.

• Press to turn on/off the LCD screen.

10Microphone

11Antenna

12Power jack

13RESET

• Force reboot the parent unit.

14Speaker

15Stand

Overview - Parent unit

Low Medium High

Advanced HQ Max

Advanced HQ Max Twin

7” High-Quality

Pan & Tilt Video Monitor

Quick start guide

Go towww.vtechphones.com

to register your product for

enhanced warranty support and

latest VTech product news.

Congratulations

on purchasing your new VTech product.

Before using this baby monitor, please read the Important safety instructions.

What’s in the box

Quick start guide

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

1 set for Advanced HQ Max

2 sets for Advanced HQ Max Twin

The applied nameplate is located at the bottom of the baby unit base.

When in use, basic safety precautions should always be followed

to reduce the risk of fire, electric shock and injury, including the

following:

1. Follow all warnings and instructions marked on the product.

2. Adult setup is required.

3. CAUTION: Do not install the baby unit at a height above 6.5

feet (2 meters).

4. This product is intended as an aid. It is not a substitute for

responsible and proper adult supervision and should not be

used as such.

5. This product is not intended for use as a medical monitor.

6. Do not use this product near water, for example, near to a

bath, sink, swimming pool or shower.

7. CAUTION: Use only the internally, non-user replaceable bat-

tery fitted to the parent unit. There may be a risk of explosion

if a wrong type of battery is used for the parent unit. The bat-

tery cannot be subjected to high or low extreme temperature

and low air pressure at high altitude during use, storage or

transportation. Disposal of batteries in fire or a hot oven, me-

chanically crushing or cutting the battery can result in an ex-

plosion. Subjecting products or batteries to an extremely high

temperture environment can result in explosion or leakage of

flammable liquids, or gas. Products or batteries subjected to

extremely low air pressures may result in explosion or leakage

of flammable liquids, or gas. Dispose of used batteries accord-

ing to the information in The RBRC seal.

8. Use only the power adapters supplied with this product.

Incorrect power adapter polarity or voltage can seriously dam-

age the product.

Power adapter information:

Baby Unit Output: 5V DC 1A

VTech Telecommunications Ltd.

Model: VT05EUS05100

Parent Unit Output: 5V DC 2A

VTech Telecommunications Ltd.

Model: VT07EUS05200

Rechargeable battery information:

3.7V 5000mAh, 18.5Wh Lithium-ion battery

Zhuhai Great Power Energy Co., Ltd.

Model: GSP806090-5Ah-3.7V-1S1P

9. The power adapter is intended to be correctly oriented in a

vertical or floor mount position. The prongs are not designed

to hold the plug in place if it is plugged into a ceiling, un-

der-the-table or cabinet outlet.

10. For pluggable equipment, the socket-outlet (power adapter)

should be installed near the equipment and should be easily

accessible.

11. Unplug this product from the wall outlet before cleaning.

Do not use liquid or aerosol cleaners. Use a damp cloth for

cleaning.

12. Do not modify the power adapters or replace with other

third-party adapters.

13. Do not allow anything to rest on the power cords. Do not

install this product where the cords may be walked on or

damaged.

14. The product should only be operated from a power source

indicated on the power adapter label or marking. If you are

unsure of the type of power supply in your home, consult your

dealer or electricity supply provider.

15. Do not overload wall outlets or use an extension cord.

16. Do not place this product on an unstable table, shelf, stand or

other unstable surfaces.

17. This product should not be placed in any area where proper

ventilation is not provided. Any slots or openings in the back

or bottom of this product are provided for ventilation. To

protect from overheating, openings must not be blocked

by placing the product on a soft surface such as a bed, sofa

or rug. This product should never be placed near or over a

radiator or heat source.

18. Never insert any objects through any aperatures or slots in the

product as this can be dangerous and cause damage to the bat-

tery or other internal parts. Never spill any liquids on the product.

19. To reduce the risk of electric shock, do not disassemble this

product, but take it to an authorized service facility. Disas-

sembling or removing parts of the product other than battery

replacement via a battery door (if applicable) may expose

dangerous voltages or other risks.

20. You should test the sound reception every time you turn on

the units or move one of the components.

21. Periodically examine all components for damage.

22. There is a very low risk of privacy loss when using certain elec-

tronic devices, such as baby monitors, cordless telephones,

etc. To protect your privacy, make sure the product has never

been used before purchase, reset the baby monitor period-

ically by powering off and then powering on the units, and

power off the baby monitor if you are not intending to use it

for some time.

23. Children should be supervised to ensure that they do not play

with the product.

24. The small parts of this monitor can be swallowed by babies or

small children. Keep these parts out of reach of children.

25. The product is not intended for use by persons (including

children) with reduced physical, sensory or mental capabili-

ties, or lack of experience and knowledge, unless they have

been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

SAVE THESE INSTRUCTIONS

Cautions

• Use and store the product at a temperature between 32

o

F

(0

o

C) and 104

o

F (40

o

C).

• Mishandling batteries can cause burn, fire or explosion

hazards.

• Batteries should not be exposed to excessive heat such as

bright sunshine or fire.

• Do not expose the product to extreme cold, heat or direct

sunlight. Do not place the product close to a heating source.

• Warning—Strangulation Hazard—Children

have STRANGLED in cords. Keep this cord out of

the reach of children (more than 3 ft (0.9m) away).

Do not remove warning label on the adapter cord.

• Never place the camera unit(s) inside the baby’s crib or

playpen. Never cover the camera unit(s) or parent unit with

anything such as a towel or a blanket.

• Other electronic products can cause interference to your

parent unit and baby unit. Try installing your baby unit as

far away as possible from the following electronic devices:

wireless routers, radios, mobile telephones, intercoms, room

monitors, televisions, personal computers, kitchen appliances

(e.g. microwave ovens) and cordless telephones.

Precautions for users of implanted cardiac pacemakers

Cardiac pacemakers (applies only to digital cordless devices):

Wireless Technology Research, LLC (WTR), an independent

research entity, led a multidisciplinary evaluation of the

interference between portable wireless devices and implanted

cardiac pacemakers. Supported by the U.S. Food and Drug

Administration, WTR recommends to physicians that:

Pacemaker patients

• Should keep wireless devices at least six inches from the

pacemaker.

• Should NOT place wireless devices directly over the

pacemaker, such as in a breast pocket, when it is turned ON.

WTR’s evaluation did not identify any risk to bystanders with

pacemakers from other persons using wireless devices.

Electromagnetic elds (EMF)

This VTech product complies with all standards regarding

electromagnetic fields (EMF). If handled properly and according

to the instructions in this user’s manual, the product is safe to be

used based on scientific evidence available today.

Important safety instructions

Status icons

Direct mode

Parent unit and baby unit are connected to

each other directly.

Signal strength is indicated by the signal icon(s)

on the right.

The red bar(s) indicates no connection.

Baby unit 1 and 2 are being viewed in Patrol

mode (For Advanced HQ Max Twin only).

Baby unit 1 and 2 are being viewed in Split

mode (For Advanced HQ Max Twin only).

Night vision is turned on.

Motion detection alert is turned on.

Melodies and soothing sounds are playing.

Status icons

Night light is turned on.

Auto night light brightness is activated.

Temperature alert is turned on.

Parent unit is muted.

Temperature measured at baby unit.

Battery level indicator

Low battery indicator

1

2

8

6

7

9

10

11

4

5

3

1

2

8

6

7

9

10

11

4

5

3

1

2

8

6

7

9

10

11

4

5

3

3

Positioning the baby monitor

Caution

• For hearing protection, make sure the

parent unit is more than 3 feet (1 meter)

away from the baby unit.

If you hear any feedback noise

from the parent unit, move the

parent unit further away from the

baby unit until the noise stops. You can

also press

on the parent unit to

lower or mute the noise.

NOTESNOTE

Note

• To avoid interference from other electronic devices, place your baby

monitor at least 3 feet (1 meter) away from devices such as wireless

routers, microwave ovens, mobile phones and computers.

Caution

• Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the

baby’s cot or playpen.

>

3ft (1m)

≥

<

3ft (1m)

3ft (1m)

﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏

﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏

2

1

3

4

5

6

7

8

9

10

14

15

13

12

11

For more support information

Model No.: 346700

S

m

Advanced HQ Max

Advanced HQ Max

Twin

Model No.: 346800

< 1 m

> 1

m

＞3ft (1m)

＜3ft (1m)

Product specificaties
