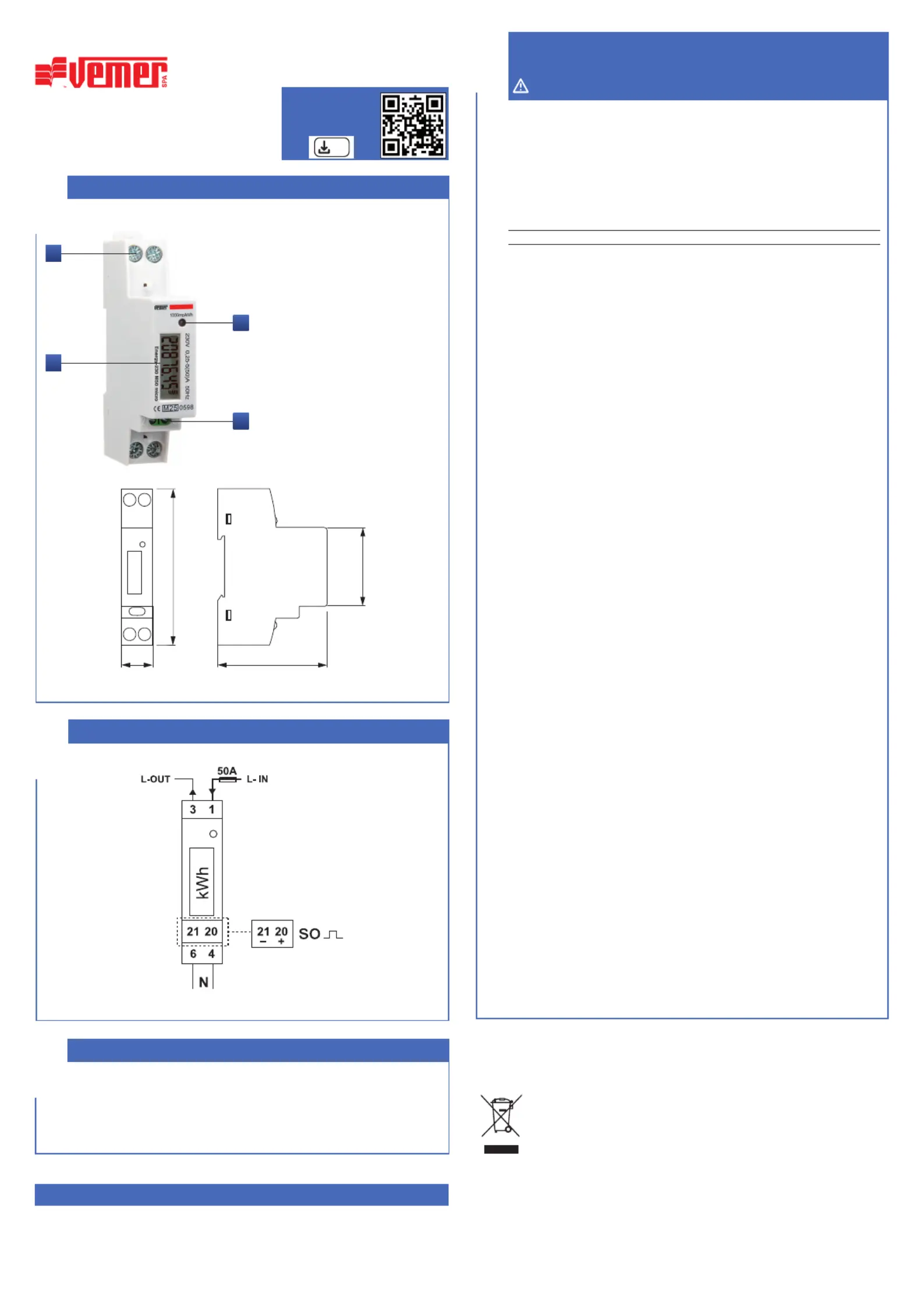

Pagina 1/1
information to users pursuant to art. 14 of the directive
2012/19 / EU of the european parliament and of the council
of 4 july 2012 on waste electrical and electronic equipment (WEEE)
If the crossed-out bin symbol appears on the equipment or packaging,
this means the product must not be included with other general waste
at the end of its working life.
The user must take the worn product to a sorted waste center,
or return it to the retailer when purchasing a new one.
Products for disposal can be consigned free of charge (without any new purchase obligation)
to retailers with a sales area of at least 400 m
2
, if they measure less than 25 cm.
An efficient sorted waste collection for the environmentally friendly disposal of the used device, or its
subsequent recycling, helps avoid the potential negative effects on the environment and people’s health,
and encourages the re-use and/or recycling of the construction materials.
Vemer S.p.A.
I - 32032 Feltre (BL) • Via Camp Lonc, 16
e-mail: info@vemer.it - web site: www.vemer.it
ISCOM101-2503
Mod. Energy-230 M50 micro
03-2025
REFERENCE STANDARDS
Compliance with Community directives:
2014/32/EU (MID)
is declared in reference to the following harmonised standards:
• EN 50470-1 • EN 50470-3
1
User Manual
SINGLE-PHASE ACTIVE ENERGY METER
Read all the instructions carefully
The Energy-230 M50 micro static energy meter is a device for internal use
for counting active energy in single-phase 230V~ systems.
The current insertion is direct for values up to 50 A. The meter is compliant
with the directive (2014/32/EU) and is intended for use in mechanicalMID
environment of type M1 with low intensity shocks and vibrations and in
electromagnetic environment of type E2.
Code
Model
Description
VE798900 Energy-230 M50 micro Single-phase active energy meter 50A MID
SAFETY WARNINGS
During product installation and operation it is necessary to observe the
following instructions:
1) The product must be installed by a qualified person, strictly in observance
of the connection diagrams shown in this manual.
2) The product must be installed and activated in compliance with current
electric systems standards
3) After installation inaccessibility to the terminals without using dedicated
tools must be guaranteed
4) Do not use the product for anything other than the indicated purpose.
5) The product must be installed in an adequately protected closed electrical
panel.
6) The device must be installed inside a panel that guarantees a degree
of protection IP51 according with to EN 60529 standard
7) In the supply network there must be a bipolar disconnection.
8) In the electrical system upstream of the product must be installed a
protection device against the overcurrents.
9) Before accessing the connection terminals, make sure that the leads
are not live.
10) Do not connect or feed the product if any part of it is damaged.
TECHNICAL SPECIFICATIONS
• Power supply: 230 Vac 50 Hz
• Absorption: 10 VA (1W)
• Starting current: I
st
= 20 mA
• Minimum current: I
min
= 0,25 A
• Reference current: I
ref
= 5 A
• Maximum current: I
max
= 50 A
• Insertion type: direct for current inputs
• Signal LED: Flashing LED (1000 flashes per kWh)
• Display: LCD a 7 digit
• Energy display resolution: 0.01 kWh (full scale: 99999.99 kWh)
• Optoisolated pulse output for remote reading of counts
(1000 pulses/kWh)
• Pulse characteristics:
- Pulse duration = 80 ms
- Maximum voltage: 30 Vdc
- Maximum current: 27 mA
•
Container: 1 DIN module
• Class index: B
• Operating temperature: -25 ÷ 55 °C
• Storage temperature: -30 ÷ 70 °C
• Average relative humidity: ≤75% non-condensing
• Maximum humidity ≤95%
INSTRUMENT DESCRIPTION and DIMENSIONS
2
1 Terminals for direct insertion
of measuring conductors
2 LCD display with 5+2 digit counter
3 Pulse output terminals
4 LED indicator of absorbed energy
(ashing with frequency
1000 imp/kWh)
63
45
18
88*
* with installed contact covers height of 116 mm
Manuals
download
PDF
1
3
2
4
In normal operation the LED and the pulse output (terminals 20 and 21)
emit a signal with a frequency proportional to the measured energy
(1000 flashes every kWh).
The counter increments every 0.01 kWh
4
OPERATION
3
CONNECTION DIAGRAM
