1. Unscrew the headless screws from backplate by using "L" screwdriver (C), then remove the mounting plate.
2. Attach the mounting plate to the wall.
a) If the wall material is wood:
Attach the mounting plate to the outlet box by using two mounting screws (A), then secure the drywall screws (D)
through the set holes to the wall.
b) If the wall material is cement:
Place the mounting plate to the outlet box and mark the target on the wall from the set hole for drilling two holes.
Remove the mounting plate. Drill the holes and thread the anchors (E) into the holes, then attach the mounting plate
to the outlet box by using two mounting screws (A). Secure the drywall screws (D) through the set holes into the
anchors (E).
Mounting Screw (A)″ L ″ Screwdriver (C)Wire Connector (B)
Anchor (E)Drywall Screw (D)

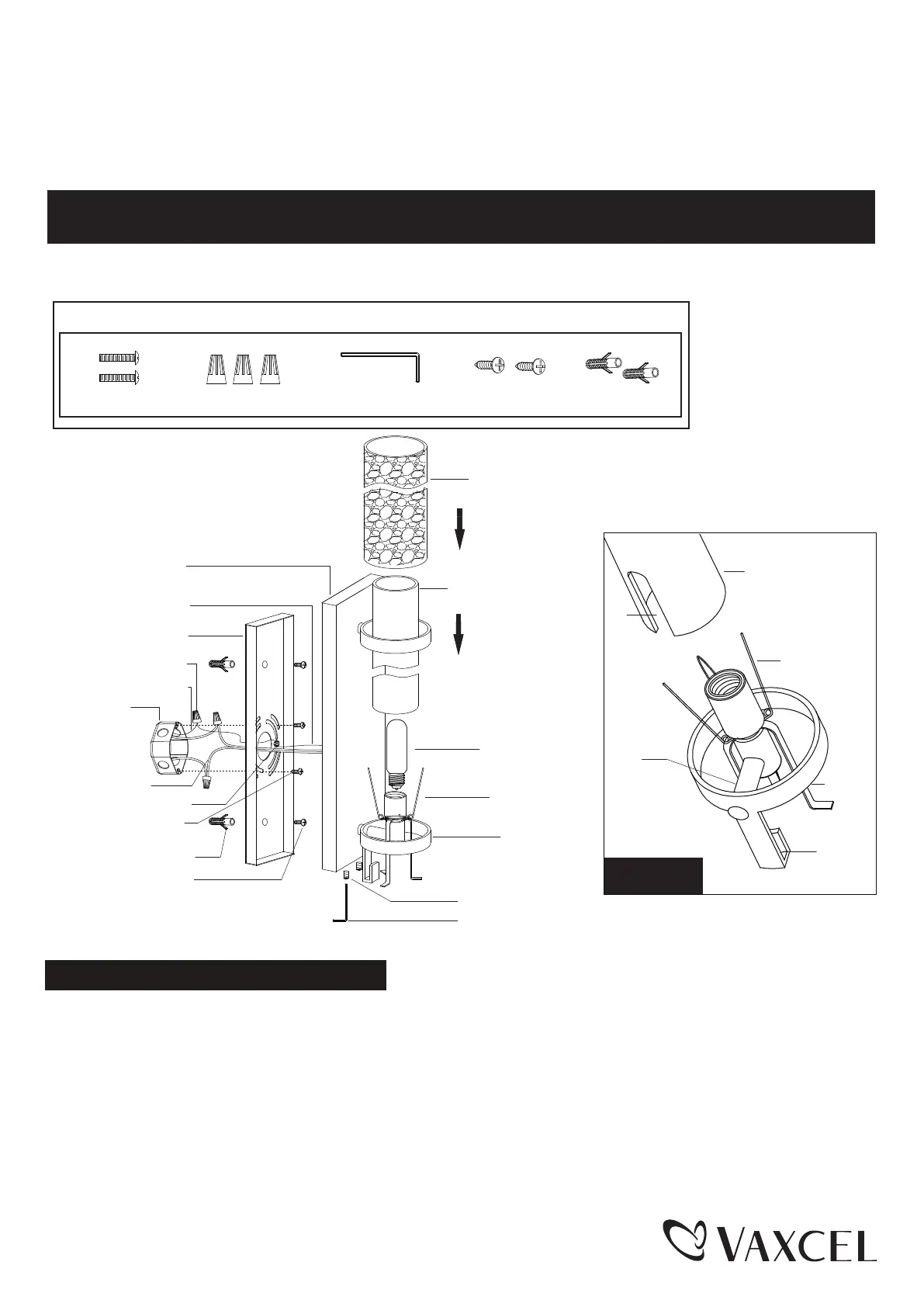

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
W0048 / W0124 / W0310
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Assembly Instructions:
Turn off the power at fuse
or circuit box.
Glass bracket
Max. 75W T10 Bulb
(not included)
Backplate
Mounting Screw (A)
Headless Screw
Mounting Plate
House Ground Wire
Green Ground Screw
Fixture Ground Wire
Wire Connector (B)
Outlet Box
Fixture Wire
″ L″ Screwdriver (C)
Anchor (E)
Drywall Screw (D)
Interior Glass Shade (G)
Exterior Glass Shade (F)
Figure.1
Interior Glass Shade
Slot
Fixture
arm
Slot
Socket Spring
Socket Spring
Page 1 / 2
230518
