ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0679 / T0680
T
W
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ
AND SAVE THESE INSTRUCTIONS.
3. When handling the fixture, do not apply pressure to the LEDs.

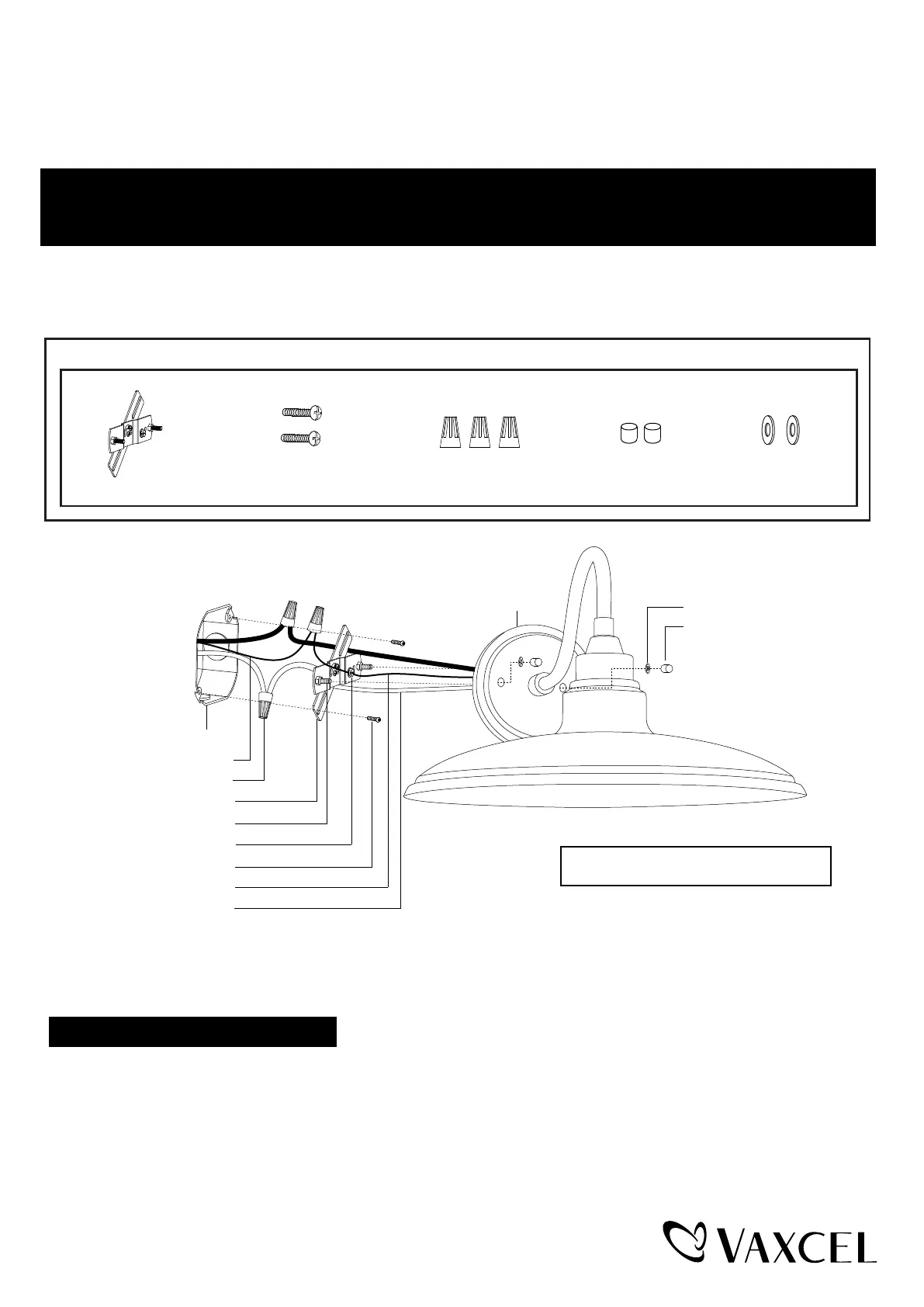

Hardware Package (included):
Mounting Screw (B)Wire Connector (C)Bolt Nut (D)Rubber Pad (E)Crossbar Unit (A)
Page 1 / 2
Turn off the power at fuse or circuit box
Installation Steps
1. Unscrew the two bolt nuts (D). Remove the two rubber pads (E) and the crossbar unit (A) from the backplate.
2. Attach the crossbar unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the preinstalled
fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.
221101
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Fixture Mounting Screw
Green Ground Screw
Crossbar Unit (A)
Fixture Wire
Rubber Pad (E)
Bolt Nut (D)
Backplate
Fixture Ground Wire
Integrated LED Included
