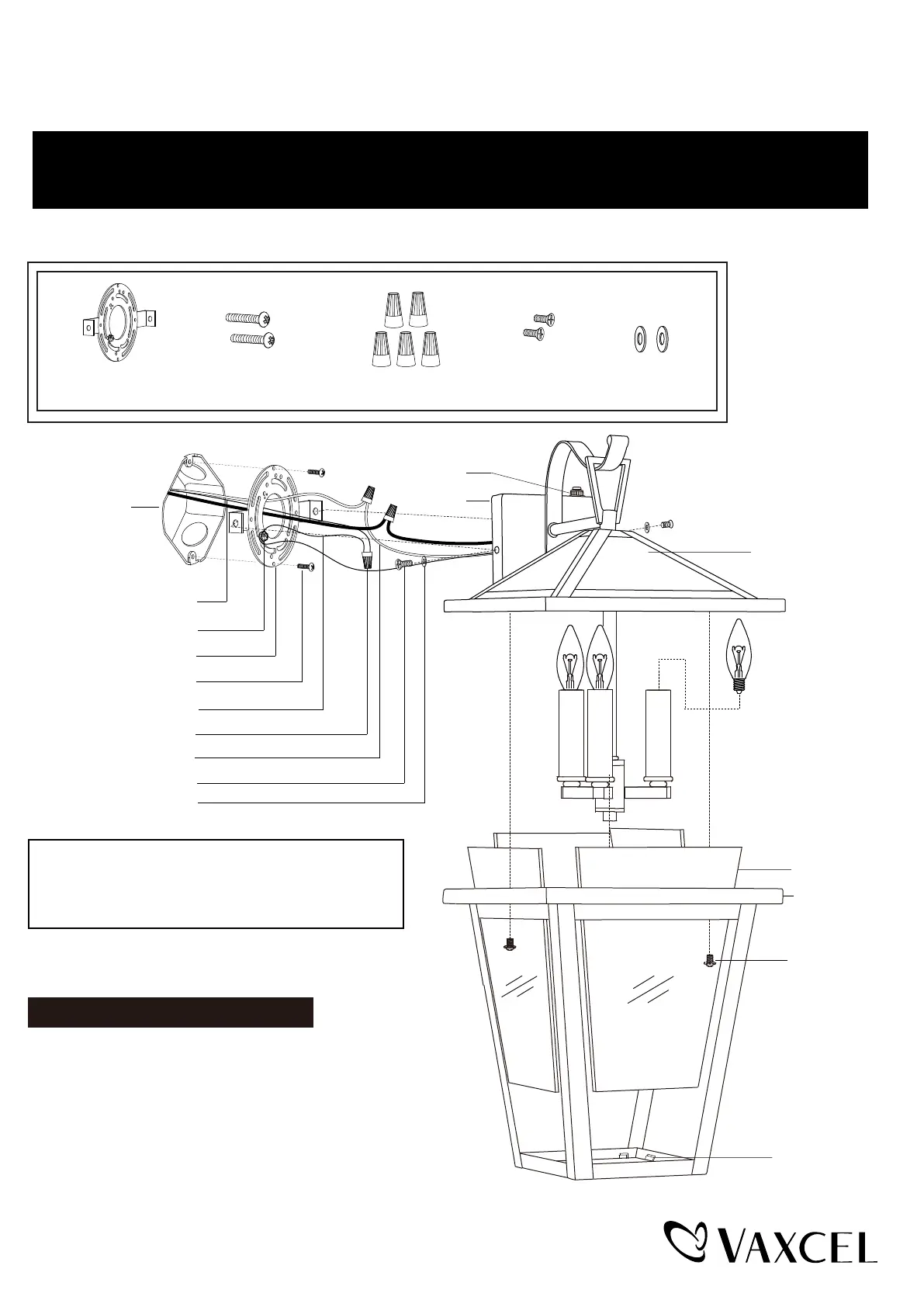

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0718

W

W

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

Page 1 / 3

230628

Set Screw (D)

Mounting Screw (B)Wire Connector (C)Mounting Plate Unit (A)

Rubber Pad (E)

IMPORTANT:

The sensor has an excellent photocell function

to enable the light to turn on at dusk and off at

dawn automatically.

Installation Steps

Turn off the power at fuse or circuit box.

1. Unscrew the two set screws (D), remove the two rubber

pads (E) and the mounting plate unit (A) from the backplate.

2. Attach the mounting plate unit (A) to the outlet box by using

two mounting screws (B).

Backplate

Photocell

Fixture Ground Wire

Wire Connector (C)

Mounting Plate Unit (A)

House Ground Wire

Green Ground Screw

Outlet Box

Fixture Wire

Set Screw (D)

Rubber Pad (E)

Mounting Screw (B)

Metal Frame

Clip

Set Screw-1

Lower Glass Panel

Upper Glass Panel

Max. 60W type B Bulb

(not include)
