1. Attach the mounting strap unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the
preinstalled threaded pipe if necessary.
2. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting strap unit (A) with the green ground screw.
Then, depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.Read And Save This Instruction.
OW21891
W
ARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

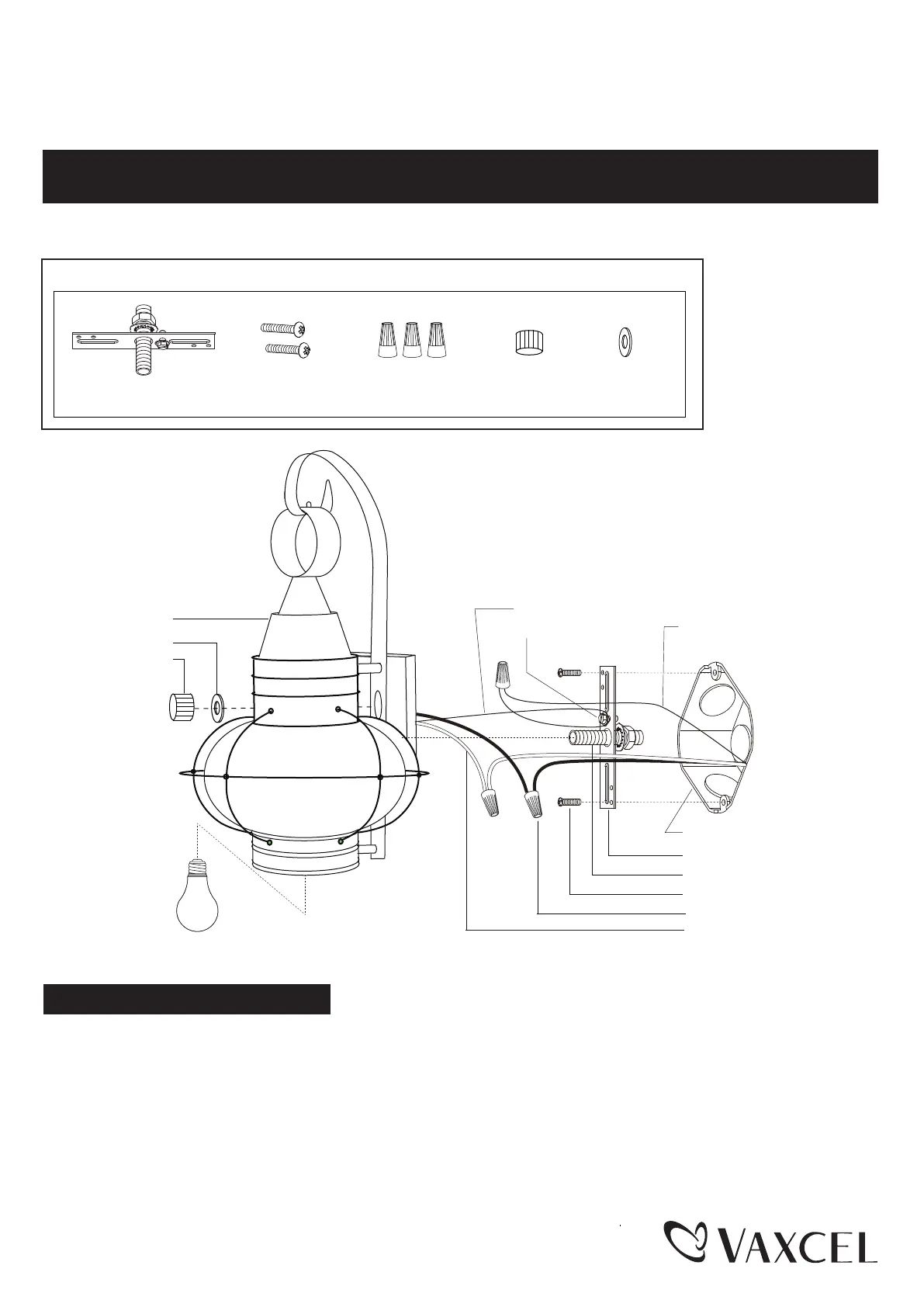

Hardware Package (included):
Turn off the power at fuse or circuit box.
Mounting Screw (B)
Fixture Wire
Mounting Strap Unit (A)
Wire Connector (C)
Fixture Ground Wire
Green Ground Screw
Outlet Box
House Ground Wire
Threaded pipe
Mounting Screw (B)
Wire Connector (C)End Cap (D)
Mounting Strap Unit (A)
Page 1 / 2
Fixture
End Cap (D)
Rubber Pad (E)
Max. 100W Type A Bulb
(not included)
Rubber Pad (E)
231018
