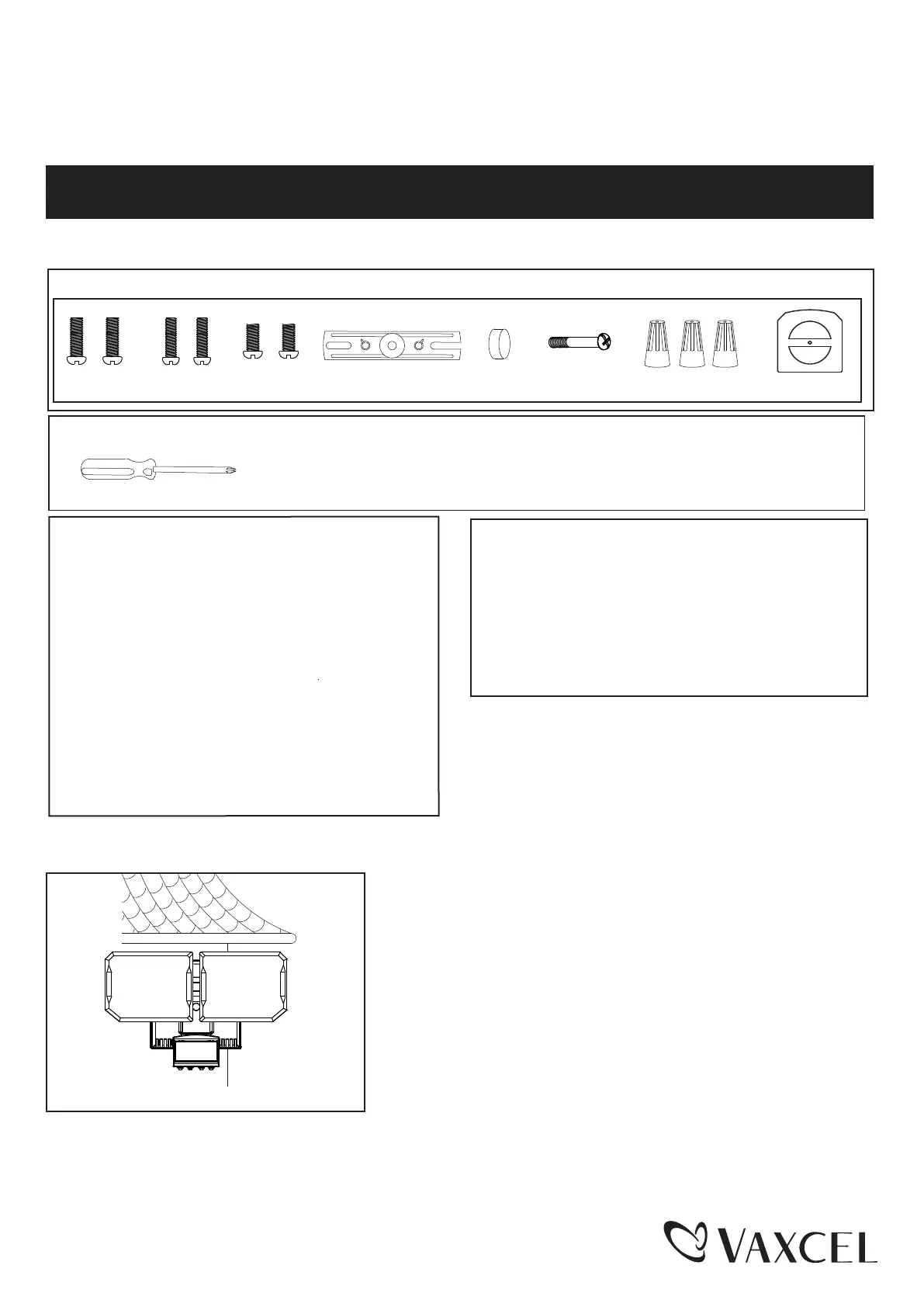

Wall Mounted

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

T0788

Hardware Package (included):

Mounting Strap

Mounting Screw X2

#8/32X1/2 in

Mounting Screw X2

#6/32 X1/2 in

Mounting Screw X2

#10/24 X1/4 in

Wire Connector

Gasket

Fixture Mounting Screw

Important to Know:

1. This fixture requires a 120 VAC, 60 Hz power source.

2. For general safety and to avoid any possible damage

to the sensor, be sure the power is switched "off"

before adjustment.

3. If you are not familiar with state and local electrical

codes, it is recommended that you consult with a

qualified electrician.

4. Do not connect this light fixture to a dimmer switch

or timer.

Features:

Note: Fixture can be wall mounted.

1. Energy saving LED fixture.

2. Motion sensor: turns light ON automatically when

motion is detected and turns light OFF or remains

in low-level brightness when motion stops.

3. Photocell keeps the light OFF during daylight hours.

4. When in manual override mode, use wall switch

to keep the light ON full brightness during the night.

Phillips-head Screwdriver

Phillips-head screwdriver for attaching mounting screws to mounting strap, mounting bracket and

fixture to mounting bracket.

Tools Needed:

Maximum Wattage: 28 W

Working Temperature Range: - 13°F ~ 113°F

Decorative cover

Light fixture and sensor should be mounted as shown above when installed.

GFCI Rated Current: 15A

GFCI Rated Current is 15A suitable for through

wiring on 20A branch circuits
