Page 1 / 2

230404

W

Maximum Wattage: 60W Incandescent Bulb or 20W LED

dimmable bulb.

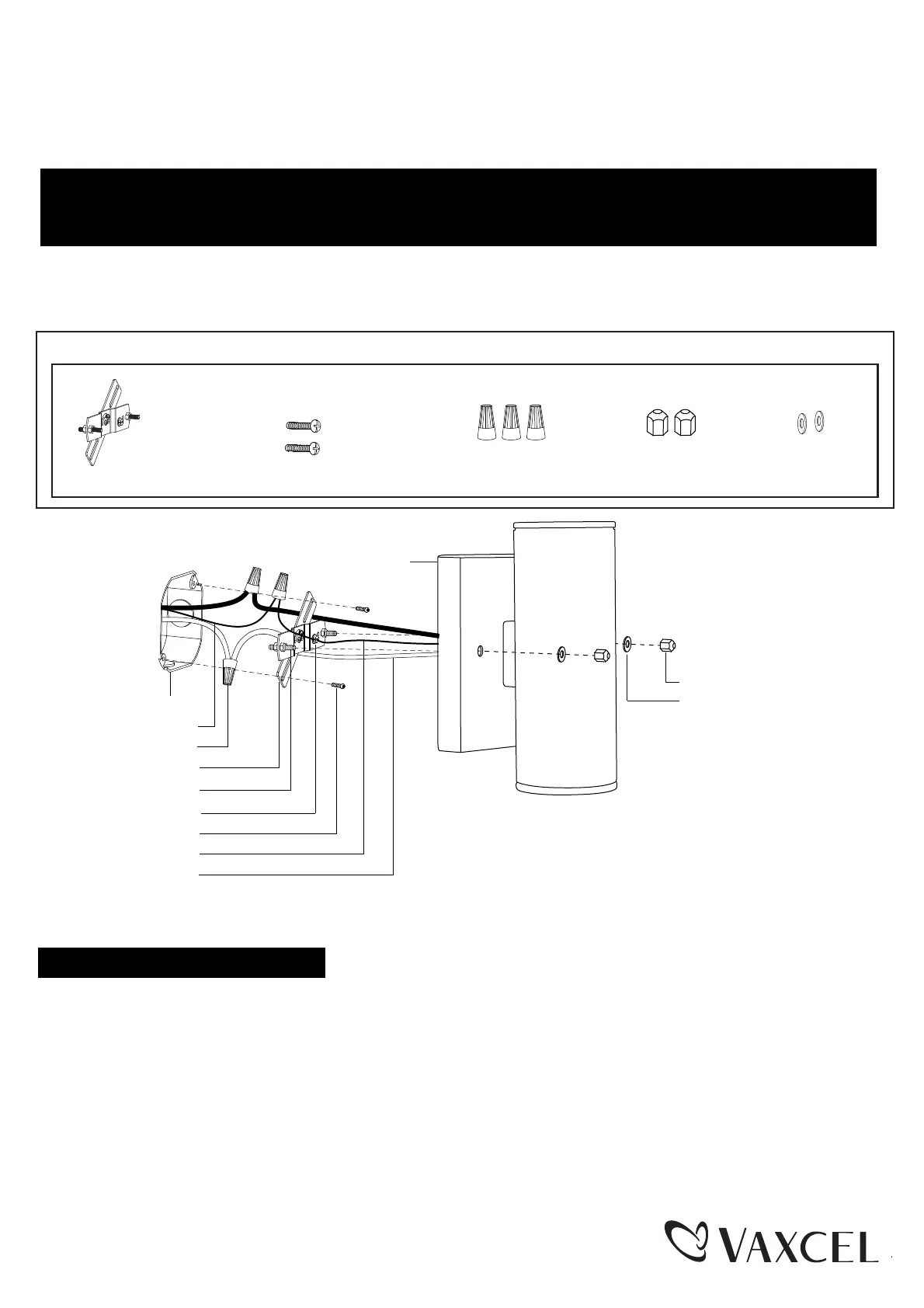

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)Rubber Pad (E)Crossbar Unit (A)

T0551 / T0552

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

Installation steps

1. Remove the two bolt nuts (D), the two rubber pads (E) and the crossbar unit (A) from the backplate.

2. Attach the cross bar unit (A) to the outlet box using two mounting screws (B). Adjust the length of the

preinstalled headless screws if necessary.

Note: Make sure that the headless screws are lined up horizontally to make the fixture level.

3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:

• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.

• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.

• Attach the fixture ground wire (bare wire) to the crossbar unit (A) with the green ground screw. Then,

depending on local code connect it to the house ground wire with the wire connector (C).

Carefully put all of the wires back into the outlet box.

Turn off the power at fuse or circuit box.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

Backplate

Bolt Nut (D)

Rubber Pad (E)

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Green Ground Screw

Headless Screw

Crossbar Unit (A)

Fixture Wire

Fixture Ground Wire
